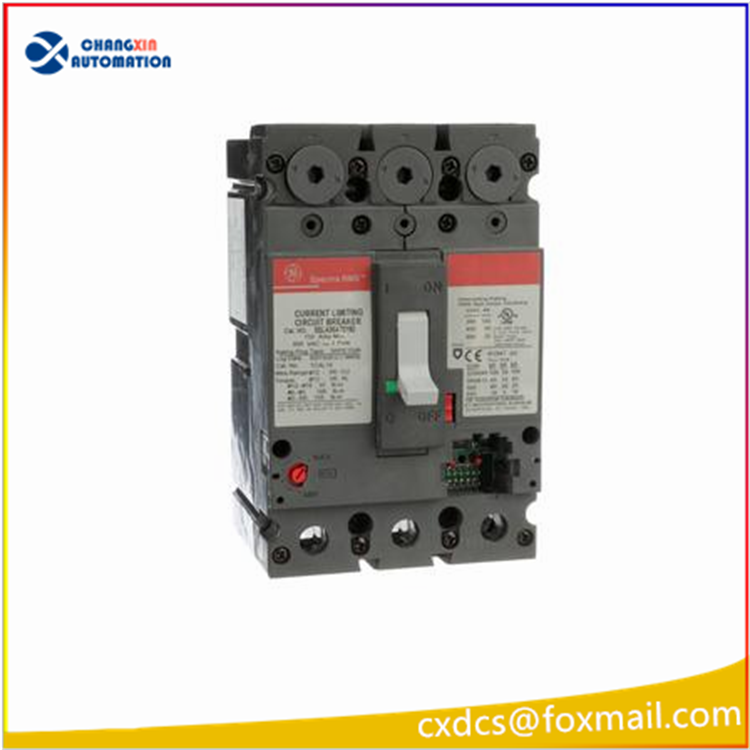

GE SFHA36AT0250 Plastic Enclosure Circuit Breaker
Technical Data
1. Product Brief Description
It belongs to the GE Spectra RMS series of current-limiting plastic enclosure circuit breakers, with a SE150 housing frame, electronic LSI three-stage protection trip unit; bolt-fixed installation, supports reverse power supply conditions, has current-limiting arc-extinguishing capability, relies on RMS effective value sampling to accurately complete full-dimensional protection of distribution circuits for overload and short circuit, the original GE industrial distribution business has now been affiliated to the electrical division of ABB.
Key Technical Parameters Table
Parameter Item Technical Indicator
Shell Frame Specification SE150 standard shell
Number of Stages 3 stages (applicable for three-phase three-wire)
Rated Continuous Current 150A
Rated Working Voltage 600V AC 50/60Hz
Arc-Interrupting Capacity (UL standard) 240VAC: 100kA; 480VAC: 65kA; 600VAC: 25kA
Trip Protection Type LSI electronic three-stage protection (long delay + short delay + instantaneous)
Long Delay Protection Fixed setting, overload inverse-time trip
Short Delay Protection Adjustable, with tracking short delay function
Instantaneous Short-Circuit Protection Adjustable
Installation Method Bolt-on type
Compatible Operating Conditions Supports reverse power feed circuits
Overall Dimensions Height 160mm × Width 104.6mm × Depth 85.9mm
Overall Machine Weight 2.18kg
Certification Standards UL, CSA, CE, HACR dedicated ventilation power distribution certification
Shell Characteristics Current-limiting structure, built-in efficient arc-extinguishing chamber
Wiring Accessories Compatible with TCAL18 wiring terminals (terminals need to be separately selected)
Core Product Performance
Full digital solid-state RMS current sampling, capable of accurately measuring distorted waveform current, with high protection action accuracy, suitable for non-linear load circuits such as frequency converters and rectifier loads;
Three-stage selective protection coordination: long delay to avoid overload burning of cables, short delay to achieve hierarchical protection coordination between upper and lower levels, instantaneous to quickly cut off extremely large short-circuit faults;
Current Limiting Design, limiting peak current during short circuit, significantly reducing system short-circuit impact, protecting the rear-end electrical equipment;
Front panel replaceable rated current plug-in, no need to replace the entire circuit breaker to adjust the rated current specification, convenient for operation and maintenance renovation;
Fault Trip Indicator Mechanism, can clearly distinguish between overload / short-circuit fault types after tripping;
Fully insulated flame-retardant shell, excellent anti-vibration and temperature resistance performance, suitable for long-term continuous operation of industrial cabinets.
Application Domains
Low-voltage power distribution cabinets for industrial plants, workshop distribution cabinets main trunk circuits protection;
Commercial buildings, office buildings, shopping malls, central air conditioning, water pump power distribution systems;
Power supply auxiliary circuits of power plants, self-owned power stations, low-voltage power supply protection for fans and oil pumps of motors;
Front-end low-voltage incoming lines and distribution circuits for data centers, hospitals, uninterruptible power supply;
Special power distribution circuits for HVAC (HACR), port / mining mobile electrical equipment power supply systems;
Scenarios with bidirectional power supply requirements for grid-connected island power distribution.
