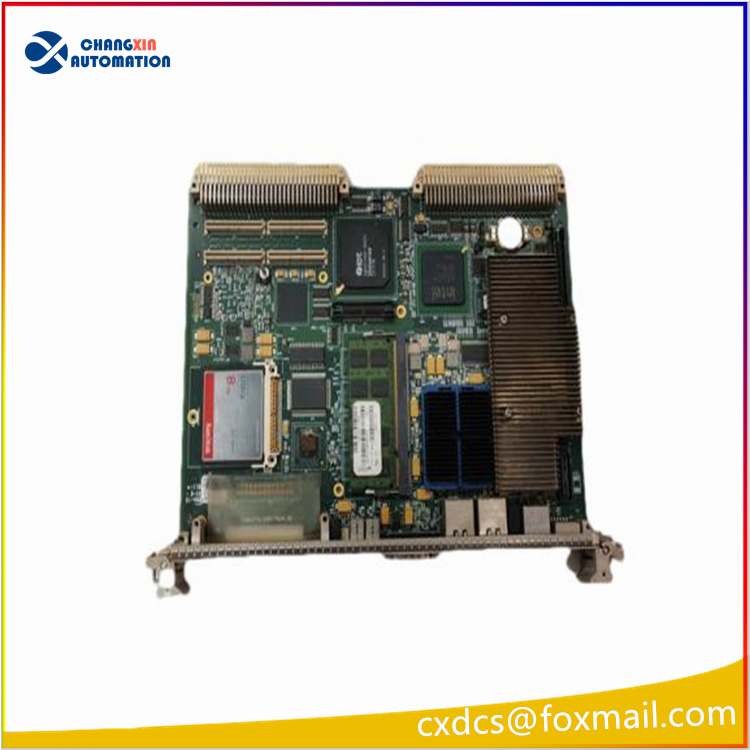

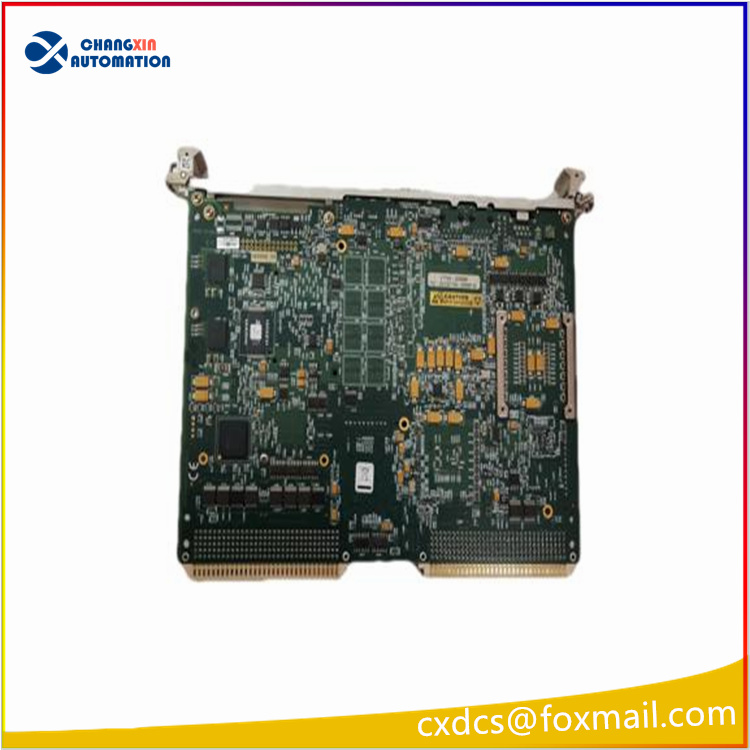

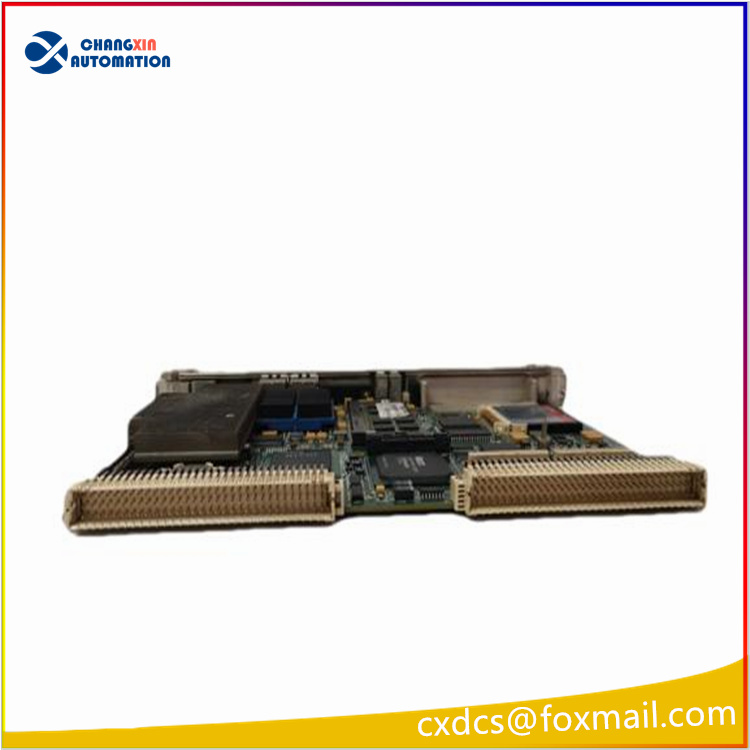

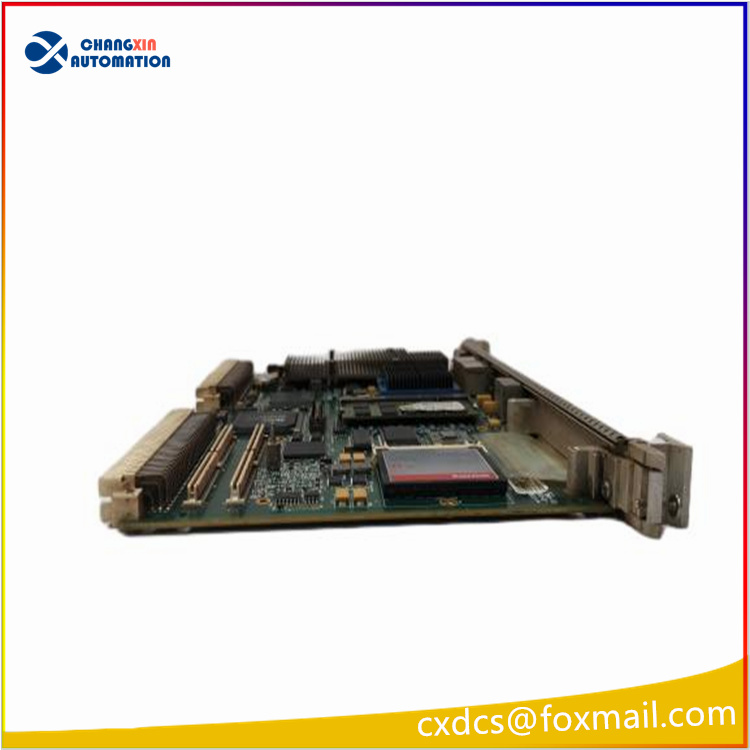

GE V7768-320000 350-9301007768-320000 A0 Industrial Controller Module

I. Basic Identity
Brand affiliation: GE Fanuc / Abaco Systems (formerly GE Intelligent Platform VME product line)
Product type: Standard single-slot VME64x bus industrial single-board computer (SBC)
Model interpretation
V7768: Basic board card model
-320000: Hardware configuration version (high-end specification of Core 2 Duo)
350-9301007768-320000: Original factory complete material code, suffix A0 indicates hardware version
Bus standard: Strictly follows VITA 1-1994 VMEbus specification, with PCI-VME transparent bridge, can be used as the main CPU or secondary processor multi-machine system

Core Hardware Configuration (-320000 High-End Version)
1. Computing Core
CPU: Intel Core 2 Duo, maximum clock speed 2.16GHz, 4MB L2 cache, 667MHz front-side bus
Alternative low power consumption: Celeron M 1.07GHz (this 320000 model is fixed with dual-core Core)
Chipset: Intel 945GM + ICH7-M Southbridge
Memory: Single SODIMM slot, maximum 2GB DDR2 SDRAM
2. Front and Rear I/O Interfaces

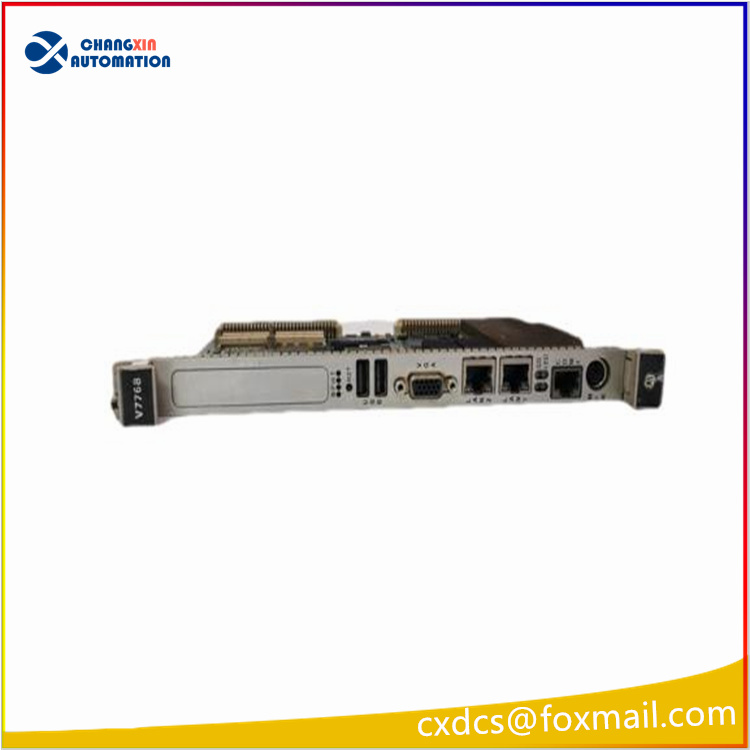

Front panel output
2 Gigabit Ethernet (10/100/1000M auto-sensing)
4×USB2.0, VGA video output, PS2 keyboard and mouse interface
2×RS232 serial debugging port
Built-in expansion
2 sets of SATA hard disk interfaces (can connect SSD / mechanical disks)
1 PCI-X PMC expansion card slot, can expand optical fibers, serial ports, dedicated acquisition cards
3. Mechanical and Power Supply
Form: Standard VME single-slot Eurocard, size 233×167×23mm
Cooling: Passive non-fan cooling, suitable for sealed control cabinets
Backplane power supply: VME standard + 5V, +12V, -12V input
Protection: PCB three-proof coating, RoHS environmental certification

Environmental Tolerance Parameters Table
Project Parameter Value
Operating Temperature Standard -20℃ ~ +70℃; The high-temperature version of Celeron can reach +90℃
Storage Temperature -40℃ ~ +85℃
Humidity 5%–95% without condensation
Anti-vibration and shock resistance Complies with MIL-STD-810 military-grade industrial shock resistance standards
Protection Grade IP20 (installed in the cabinet)
IV. System and Software Compatibility
Supports real-time operating systems: VxWorks, embedded Linux, Windows XP Embedded, QNX
Bus Capability: Transparent PCI ↔ VME bridge, capable of scheduling all VME I/O, acquisition, and communication sub-boards within the rack
Application Positioning: Gas turbine main control, power plant DCS, rail transit signals, military measurement and control, core computing unit for large equipment motion control
