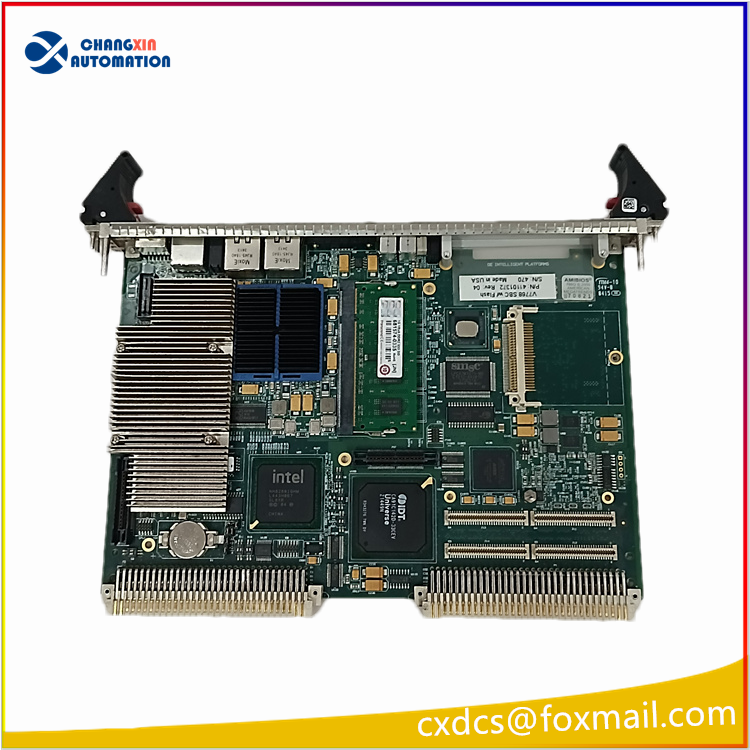

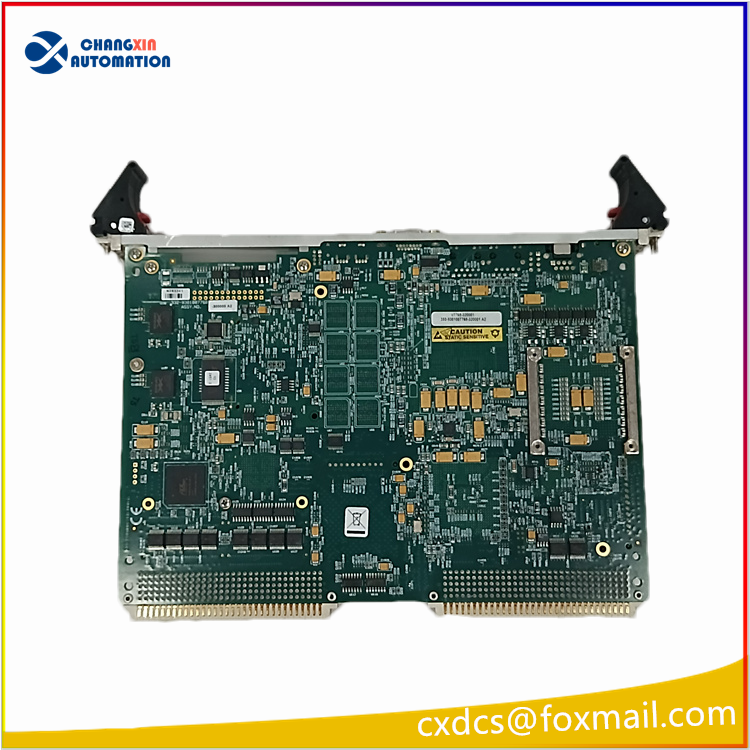

GE V7768-320001 (Part Number: 350-9301007768-320001 A2)
I. Product Basic Information
Brand: GE Intelligent Platforms (now Abaco Systems, formerly VMIC)
Product Type: 6U VME bus industrial-grade single-board computer (SBC)
Main Application: Main control CPU board for power generation / gas turbine Mark VI, Mark VIe older control systems, military / semi-physical simulation, high-speed real-time data acquisition, redundant control system computing unit. It often carries VMIC series fiber optic reflective memory PMC sub-card to achieve multi-node microsecond-level real-time data synchronization.
Core Hardware Configuration
1. Processor and Storage
CPU: Intel Core 2 Duo, base frequency 2.16GHz (optional Celeron M low-power version)
Chipset: Intel 945GME
Memory: Maximum 2GB DDR2 SDRAM (supports ECC parity check)
System Storage: Built-in CompactFlash slot (standard 8GB, used for embedded systems, program firmware固化)
Secondary Cache： 4MB L2 high-speed cache

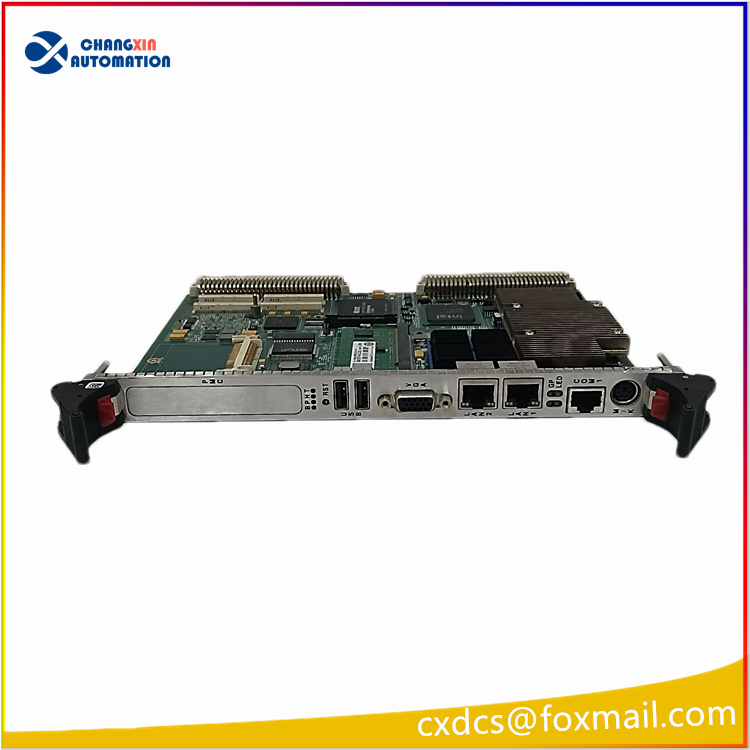

2. Built-in Native Interfaces (Front Panel)
Dual Gigabit Ethernet RJ45: Upstream SCADA communication, program download, system networking
4 USB2.0 interfaces， 2 RS232/422 serial debugging ports
SVGA video output， PS/2 keyboard and mouse interface (for local debugging and operation)
2 SATA interfaces， can be used to connect external hard drives for local historical data storage
3. Bus and Expansion Capability
Bus Specification： 6U VMEbus Rev.C standard， can be used as System Controller of VME rack No.1 slot， supports bus arbitration， watchdog hardware protection
Expansion Slots： 1 standard PMC PCI-X expansion slot (can be equipped with VMICPCI-7632 optical reflection memory card to achieve millisecond-level data mirroring and non-disruptive redundant switching between main and backup CPUs of the gas turbine control system)
3 external PMC slots can be expanded， flexible installation of field buses， high-speed acquisition type function cards
Electrical and Environmental Parameters
Power Supply： VME rack standard + 5V， +12V, -12V DC power supply
Operating Temperature: -40℃ to +85℃ (wide temperature military-grade industrial reinforcement design)
Storage Temperature: -55℃ to +90℃
Humidity: 5% to 95% RH, no condensation
Anti-vibration: 5 to 500Hz, peak acceleration 5g; anti-shock 30g/11ms
Form Size: 6U VME standard specification, weight approximately 350g
Supported Operating Systems: VxWorks, Linux, Windows XP Embedded (mainstream VxWorks real-time system is adopted for power plant gas turbine systems)
Core Functional Features
Real-time Redundant Control: Combined with PMC optical reflection memory card, realizes nanosecond-level data synchronization among multiple CPU control nodes, up to 256 control nodes in a single fiber ring network, ensuring complete consistency of key protection data such as gas turbine tripping， speed， and temperature
VME Bus Master Control Capability： Can uniformly schedule I/O modules of the entire rack， perform timing arbitration， and protect against hardware watchdog to prevent system from crashing， compatible with GE’s old Mark V/Mark VI steam turbine control systems
Wide Temperature and High Reliability Reinforcement Design： Compatible with power plant cabinets， vehicles， and airborne environments with harsh electromagnetic and temperature variations， supports long-term 7×24 uninterrupted operation
Rich Expansion Compatibility： Can be expanded with motion control， high-speed acquisition， Profibus， and other types of PMC function cards， compatible with semi-physical simulation， military testing， and other special scenarios
