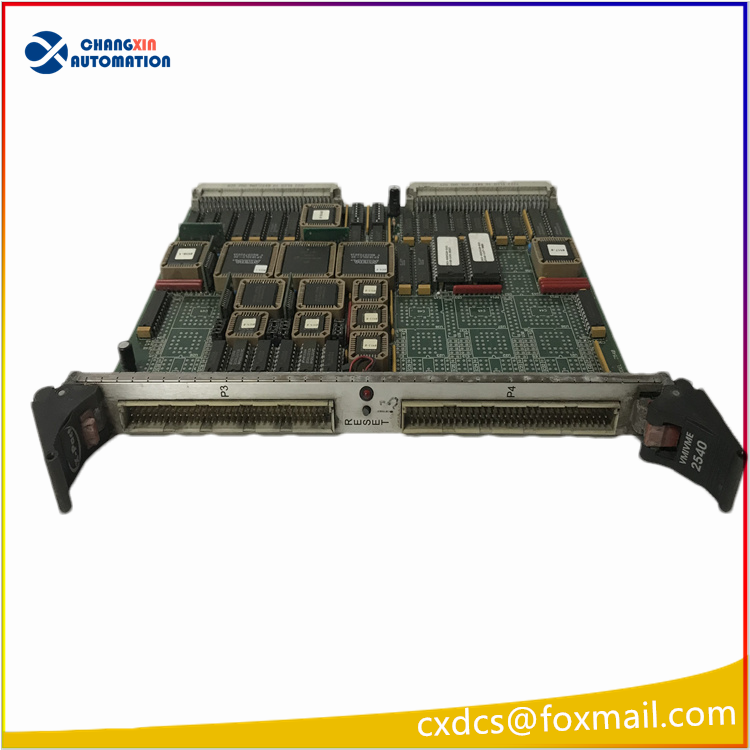

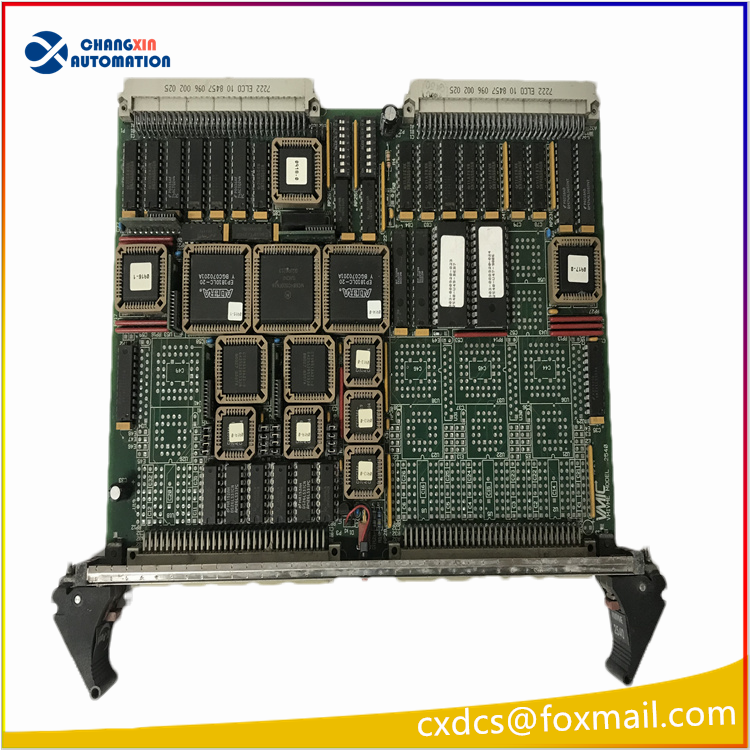

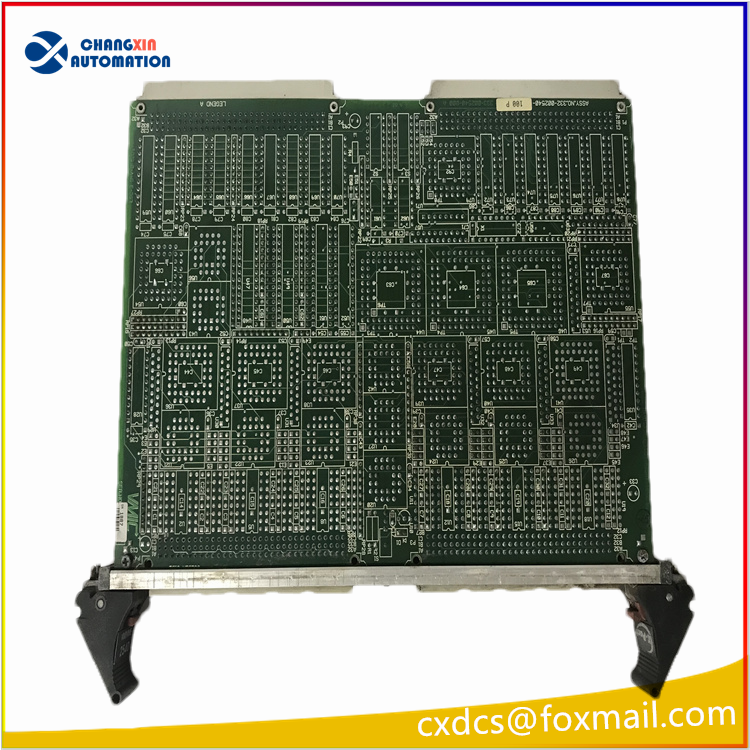

GE VMIVME-2540 Motion Control Module

I. Basic Information
Brand: GE Fanuc / VMIC (now Abaco Systems)
Model: VMIVME-2540
Board Type: VME bus 24-channel intelligent counter / motion control module (ICC intelligent counter controller)
Form Factor Specification: Standard 6U VME industrial board
Bus Type: VMEbus Rev.C.1, VME slave device, supports A24/A32, D8/D16/D32 bus modes
Typical Supporting System: GE Mark VI steam turbine / gas turbine TCS control system, semi-physical simulation platform, high-precision motion measurement and control system, often used with SBC486DX66 main control and VMIC5565 reflective memory card

 Core Hardware Parameters
On-board Processor
Motorola 68HC000, with a frequency of 15 MHz, the onboard firmware independently manages all counting channels, reducing the computing load of the VME master CPU.
Channel Configuration
Standard 24 independent programmable channels, which can be flexibly configured as 4/8/16/24 channels through onboard jumpers;
Supports single-ended TTL, differential RS-422 level input, with strong resistance to industrial electromagnetic interference.
Counting Measurement Performance
Maximum input frequency: 2.5 MHz
Counting Mode: 32-bit event counting (maximum 429 million times), orthogonal encoder position measurement (maximum 1 MHz)
Measurable: pulse frequency, pulse period, pulse width, rotational speed, displacement position
Output: programmable square wave, pulse sequence, positioning control pulse signal
Storage and Bus Resources
64KB VME bus memory mapping window, 32-bit floating-point operation, data is exchanged with the master CPU through memory mapping, with extremely low communication delay.
Electrical and Environmental Parameters
Power Supply: Backplane + 5VDC, typical power consumption 4.25W
Operating Temperature: -40℃ ~ +85℃
Humidity: 5%~95% RH (no condensation), meeting the requirements of wide temperature conditions in military and power station applications

Core Functions
High-precision speed and pulse acquisition
Acquisition of pulse signals from turbine speed probes, encoders, and speed sensors, used for closed-loop regulation of turbine speed and overspeed protection logic operations.
Orthogonal encoder position measurement
High-precision position feedback for valve opening, turbine actuator stroke, and shaft angle, achieving precise servo control.
Pulse signal generation and output
Output of high-frequency pulses to drive servo mechanisms and stepper actuators, completing precise positioning adjustment of valves and dampers.
Event timing capture
High-speed event triggering and pulse timing recording, used for SOE timing analysis of faults and vibration frequency monitoring.
Multi-channel synchronous acquisition
24-channel hardware synchronous sampling, synchronous acquisition of multiple measurement points’ speed and displacement data, ensuring the synchronization of the control loop.

Main Application Scenarios
GE Mark VI steam turbine / gas turbine control system
Turbine speed acquisition, pulse signal processing of the speed regulation system, closed-loop measurement and control of valve actuator positions (the most mainstream application scenario).
Aerospace, rail transportation semi-physical simulation test platform for high-speed pulse acquisition and analog signal generation.
Metallurgical rolling line, high-precision servo positioning, speed monitoring system of rotating equipment.
Military distributed real-time measurement and control, vibration, displacement high-frequency data acquisition system.

 Product Features
On-board independent processor: Channel configuration and counting operation are executed locally, not occupying VME master resources, with extremely strong real-time performance.
Differential signal input: Perfectly adapted to the strong electromagnetic interference environment of power plants, eliminating the problem of incorrect counting and lost pulses in speed pulse signals. Multifunctional programmable channel: A single board can simultaneously perform pulse acquisition, position measurement, and pulse output, reducing the occupation of VME rack slots.
Industrial wide-temperature rugged design, supporting long-term 7×24-hour uninterrupted operation, belongs to the core spare parts of GE’s old TCS system.
