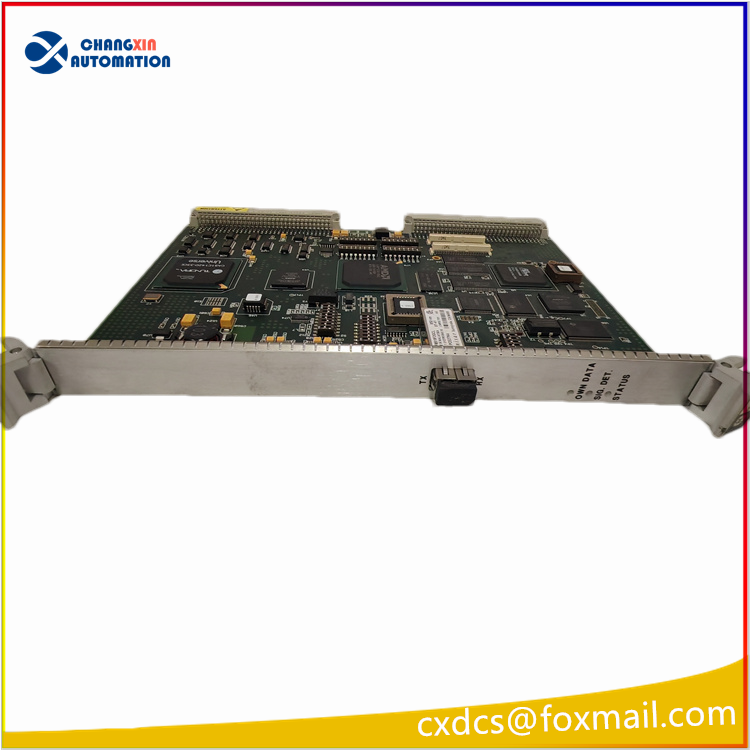

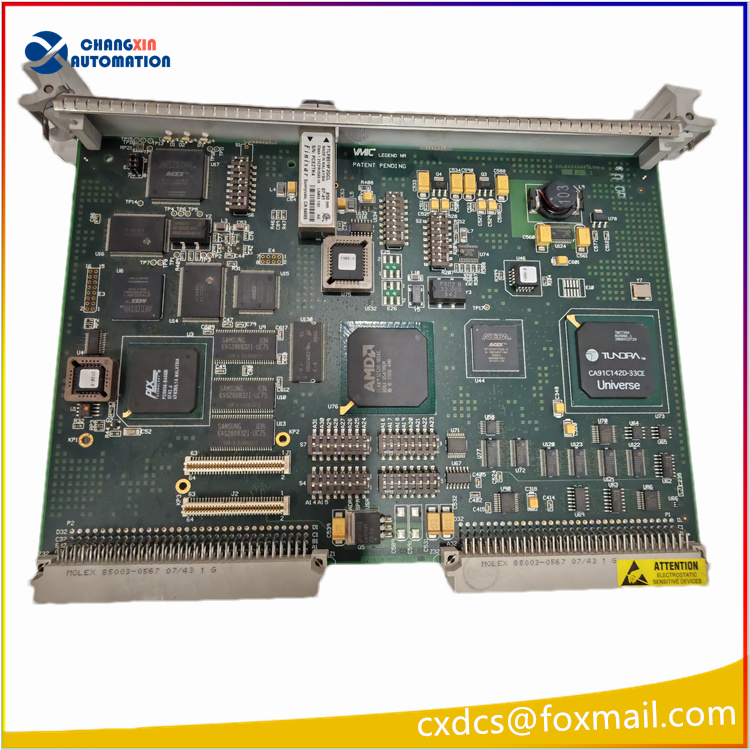

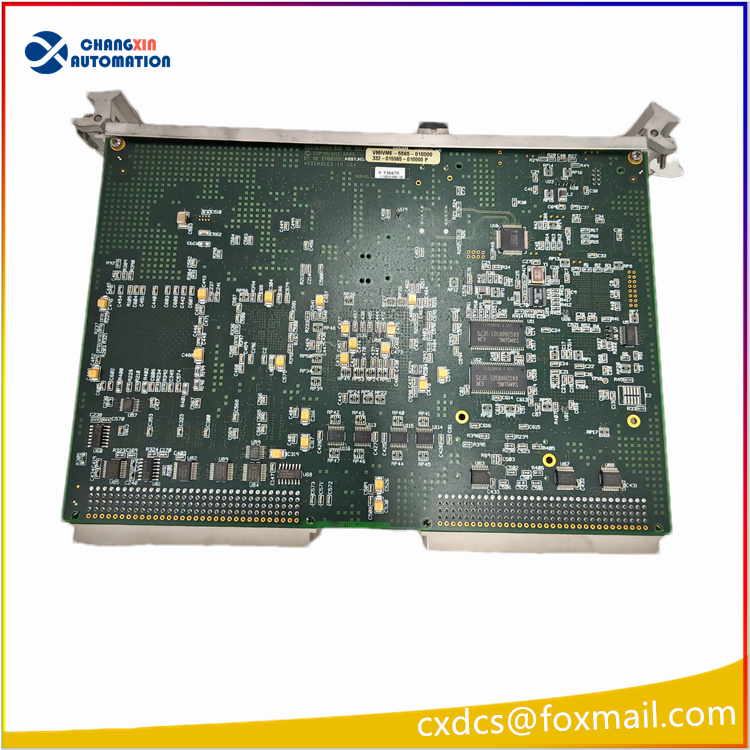

GE VMIVME-5565-010000 332-015565-010000 VME bus fiber optic reflective memory board card

GE VMIVME-5565-010000 332-015565-010000) VME bus fiber optic reflective memory board card
I. Model Basic Information
Brand： GE Fanuc (formerly VMIC, now under Abaco Systems)
Hardware Model: VMIVME-5565-010000
Original Factory Unique Material Number: 332-015565-010000. Complete filling must be done for purchase and spare parts replacement
Hardware Form： Standard 6U single-width VME64x bus industrial card， compatible with the Concurrent VME generator real-time control system rack you previously queried. It is the core communication board for multi-node high-speed real-time data interaction.
Product Type： Fiber Reflective Memory (Reflective Memory) real-time communication card， different from ordinary Ethernet and serial communication. It focuses on microsecond-level deterministic low-latency data sharing.
Model Code Interpretation
VMIVME： Prefix of GE VME bus industrial board card series
5565： Classic Fifth Generation Reflective Memory Hardware Platform
010000： Hardware Configuration Version： Onboard 16MB shared memory， multi-mode ST optical fiber interface， basic interrupt version
332-015565-010000： Original Factory Global Material Code， used for original factory inventory， spare parts traceability， customs purchase

Core Hardware Specifications
1. Bus and Storage Parameters
Bus Standard： VME64x (downward compatible with VME Rev.C.1)， supports DMA high-speed direct memory access， significantly reducing the CPU usage of the main control
Onboard Shared Memory： 16MB SDRAM， all network nodes map to the same virtual memory address space. Any node writing data， all nodes will synchronously refresh
The maximum single node memory can be expanded to 64MB， supporting massive process real-time data， vibration waveforms， excitation control parameters for high-speed interaction
2. Communication Interfaces and Transmission Performance
Dual ST multimode optical fiber interfaces (TX/RX)
Serial Transmission Rate： 2.125Gbps
Typical Transmission Delay： 1.5μs (microsecond level)， transmission delay is fixed and predictable， without random delay of Ethernet
Multimode Optical Fiber Transmission Distance： Up to 500 meters； replacing single-mode optical modules can expand to 10 kilometers
Network Capability： Single Reflective Memory Ring Network can connect up to 256 VME/PCI/CPCI nodes in the ring network， supporting ring and star (paired with VMIVACC-5595 reflective memory hub) two topological structures
Hardware Interrupts： Supports 4 programmable global hardware interrupts， enabling rapid triggering of multiple groups and emergency shutdown signal issuance upon failure linkage
3. Electrical and Environmental Parameters
Power Supply： VME backplane + 5V， +12V DC power supply， typical overall power consumption ≤ 18W
Operating Temperature： -40℃ ~ +85℃ wide industrial grade， suitable for power plants， metallurgical strong electromagnetic interference control cabinets
EMC Protection： Compliant with IEC61000 industrial anti-interference standards， optical fiber physical isolation completely avoids ground loops， frequency converters， excitation equipment electromagnetic interference
Size： Standard 6U VME card： 186.7mm (H) × 100mm (W) × 20mm (D)， supports hot-swappable maintenance in the rack

Core Working Principle
Reflective Memory is essentially a distributed shared memory technology：
Each VMIVME-5565 board card has a completely synchronized local memory；
When any VME master writes data to the memory of this floor card， the hardware automatically broadcasts it via optical fiber to all other nodes in the ring network；
All nodes complete memory data synchronization within a few microseconds， and the upper-level program can directly read the local memory to obtain the full network real-time data；
It can issue global hardware interruption instructions, enabling multi-unit gas turbines and excitation control systems to achieve millisecond-level synchronous interlock control.
