General Electric IS230PCAAH1A Core Analog I/O module

Brand: GE

Compatibility: GE Mark Systems

Dimensions: 10″ x 6″ x 3″

Weight: 2.5 lbs

Material: High-grade aluminum alloy

Power Consumption: 12V DC, 1.5A

Connectivity: Ethernet, USB, RS-232

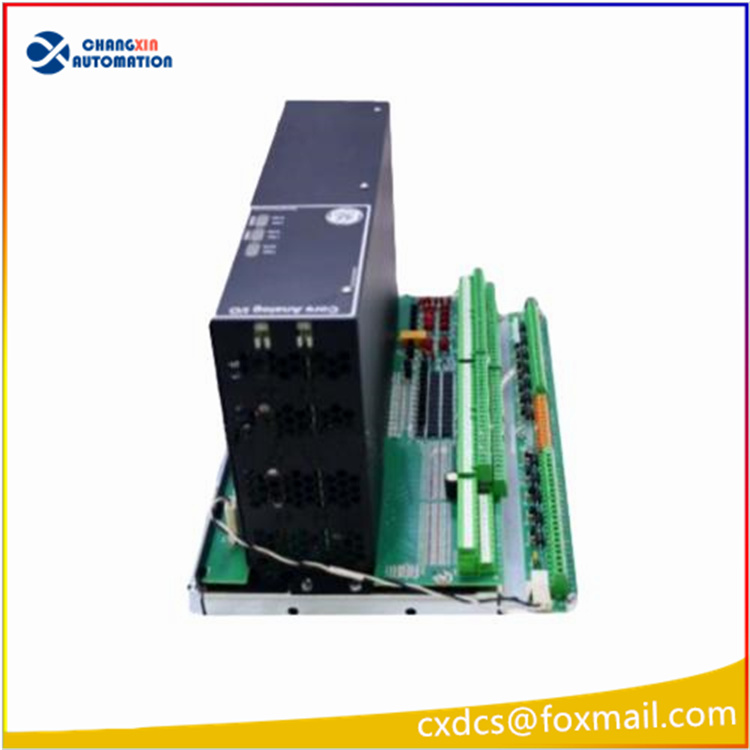

General Electric IS230PCAAH1A SPEEDTRONIC Turbine Control.The PCAA module has 120 Euro-style pluggable box terminals. A JGPA board, which mounts next to the module, provides 48 shield termination points (green) and twelve 24 V dc output terminals (orange) for 4-20 mA transmitters using Euro-style box terminals./Part Number: IS230STAIH2A Manufacturer: General Electric Series: Mark VIe Function: TERMINAL BOARD/General Electric Speedtronic Mark VIe IS230PCAAH1A Analog I/O Assembly Terminal Board is a part of gas turbine Control Systems /GE IS230PCAAH1A

Functional Description

• The module is suitable for use in simplex, dual, and TMR systems. A single TCAT terminal board distributes signal inputs to one, two, or three PCAA modules.
• An adjacent JGPA board’s shield ground and 24 V field power terminals supplement the terminals on PCAA and TCAT. Module includes a processor board that is shared by all Mark VIe distributed I/O boards, two application I/O boards, and a terminal board.
• The entire module is regarded as the least replaceable unit, and no assistance is provided to diagnose or replace the individual boards that comprise the module.

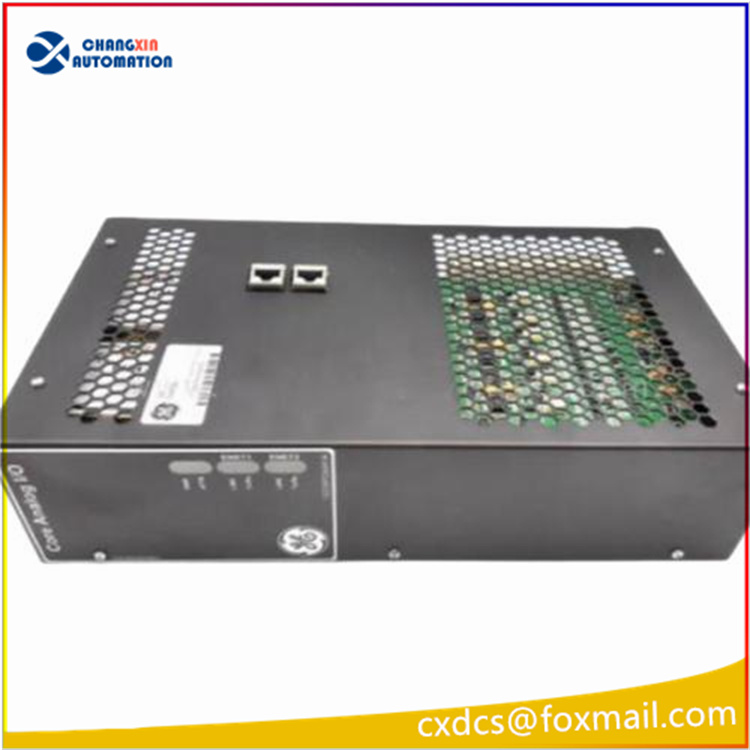

• The module is powered by a 28 V dc power connector and two RJ45 Ethernet connectors. On the module’s edge, 120 Euro-style box terminals provide field device I/O. Power is supplied to a JGPA board via connector P4. The module is connected to TCAT via two 68-pin cables on connectors P1 and P2.
