I. Product Brief Description

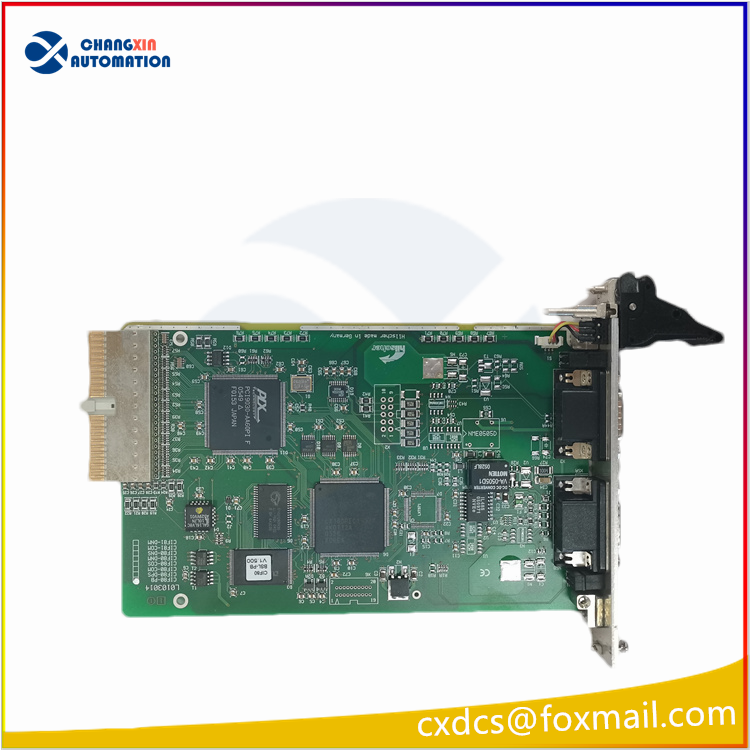

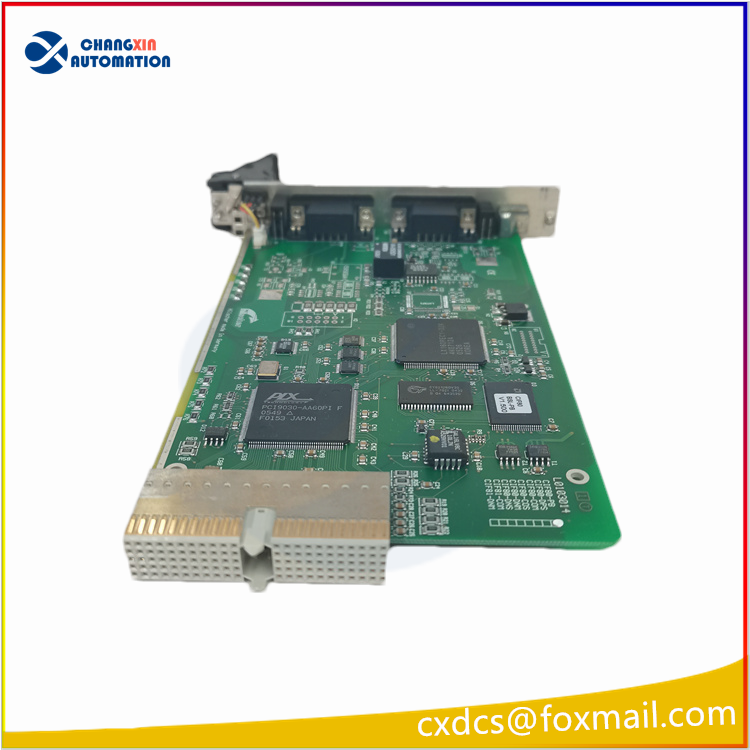

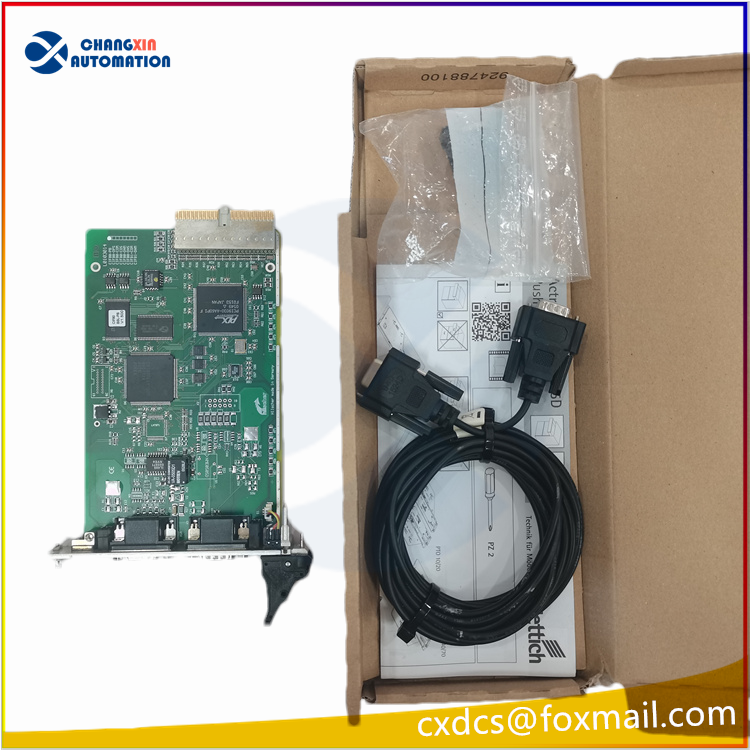

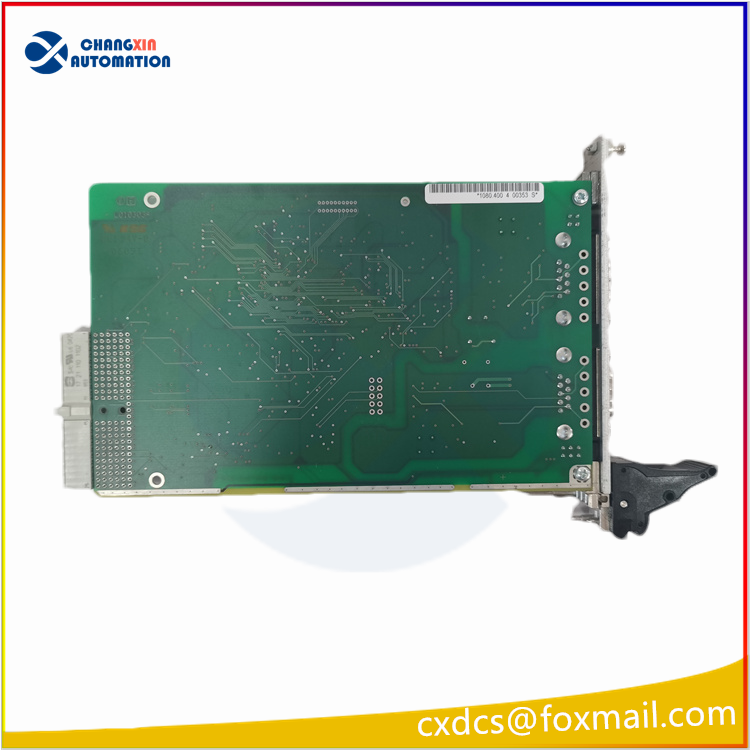

German Hilscher CIFX80 series 3U CompactPCI architecture industrial fieldbus communication card; PB represents the PROFIBUS bus version, equipped with self-developed netX communication chip, can be configured as PROFIBUS-DP master station / slave station, compatible with FMS, MPI protocols; relying on dual-port memory (DPRAM) to achieve high-speed real-time data interaction between industrial control host and PROFIBUS field devices, widely applicable to VME/CPCI industrial control complete machines, power station gas turbine control systems, and old industrial control equipment bus connection scenarios, industrial long-term stable communication spare component card.
Key Technical Parameters Table
Parameter Item Technical Indicators
Board Card Specification 3U CompactPCI standard card (CPCI bus)
On-board Main Control Chip netX EC1 dedicated industrial communication processor
Supported Bus Protocols PROFIBUS-DP (master/slave), PROFIBUS-FMS, MPI
PROFIBUS Electrical Interface Isolated RS485, 9-pin D-Sub female interface
Baud Rate Range 9.6 kbit/s ~ 12 Mbit/s adjustable throughout the line
Data Interaction Cache 64KB dual-port memory DPRAM
Power Supply Requirements Backplane 3.3V DC (maximum 500mA) + 5V DC (300mA)

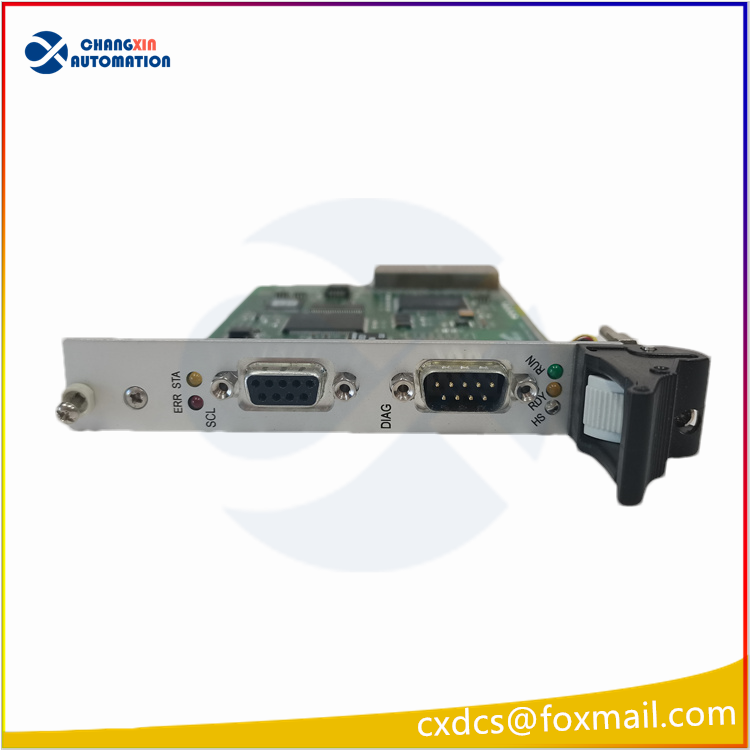

Status Indicators 4-channel LED for RUN, STANDBY, ERROR, READY
Diagnostic and Debugging Port One non-isolated RS232 debugging serial port (9-pin D-Sub male interface)
Overall Size 160mm × 100mm × 20mm
Overall Weight Approximately 130g
Operating Environment Temperature 0℃ ~ +55℃ (standard industrial); Wide temperature version available – 20℃ ~ +70℃
Storage Temperature -40℃ ~ +85℃
Electromagnetic Compatibility EN 61000 industrial anti-interference standard
Supported Systems Windows, Linux, VxWorks, QNX various embedded real-time operating systems
Core Product Performance
Self-operated bus calculation, does not occupy host CPU resources
Communication Protocol Stack runs completely on the local chip of the board card, the host only reads and writes data through the dual-port memory, significantly reducing the load of the industrial control main control, suitable for hard real-time control requirements of steam turbines and gas turbines;
Master/Slave stations can freely switch configuration
Software loading different firmware can switch PROFIBUS master station (mounting remote I/O, frequency converter) or slave station (connecting Siemens PLC), one board card can adapt to bidirectional communication scenarios;
Complete bus diagnosis and fault self-check
Support bus waveform monitoring, site disconnection detection, communication error counting, bus short circuit troubleshooting; Fault code local indicator light display, simultaneously upload to the host background;
Unified driver ecosystem, all series compatible replacement
Hilscher CIFX full series of board cards share one set of driver software, replacing different bus specification board cards does not need to modify the upper-layer application programs;
Industrial reinforced and durable design
PCB three-proof coating, anti-vibration and shock resistance, able to withstand cabinet dust, electromagnetic interference, supports 7×24h uninterrupted year-round operation;
Firmware can be upgraded online
Update bus firmware through debugging serial port or upper-level software, compatible with different versions of PROFIBUS devices for debugging.
Application Domains
GE Mark VIe, Woodward gas / steam turbine generator control system CPCI chassis PROFIBUS bus expansion;
Motorola MVME series VME/CPCI embedded industrial control computer fieldbus communication expansion;
Ship Kongsberg K-Chief engine room automation system PROFIBUS substation data acquisition;
Metallurgy, chemical large-scale DCS system upper industrial control computer connecting on-site DP bus instruments, valves, frequency converters;
Railway vehicle control system, wind power main control cabinet PROFIBUS communication redundant modification;
Imported old industrial control equipment maintenance spare parts replacement.
CIFX80 (CIF80) Mainstream Models of the Same Series
CIF80-PB: PROFIBUS-DP/FMS/MPI universal version (this model, master-slave integrated) CIF80-DPS: Pure PROFIBUS slave station compact version, only passively receiving PLC data
CIF80-CO: CompactPCI CANopen bus communication card
CIF80-DN: DeviceNet fieldbus version
CIF80-RE: Industrial Ethernet universal card (PROFINET/EtherNet/IP/EtherCAT firmware switchable)
Form iteration series
CIF50: Standard PCI desktop slot PROFIBUS card (used for ordinary industrial control computers)
CIF70E: PCIe low-profile card, compatible with new industrial control computers
CIF104: PC104 bus embedded small-sized communication card
