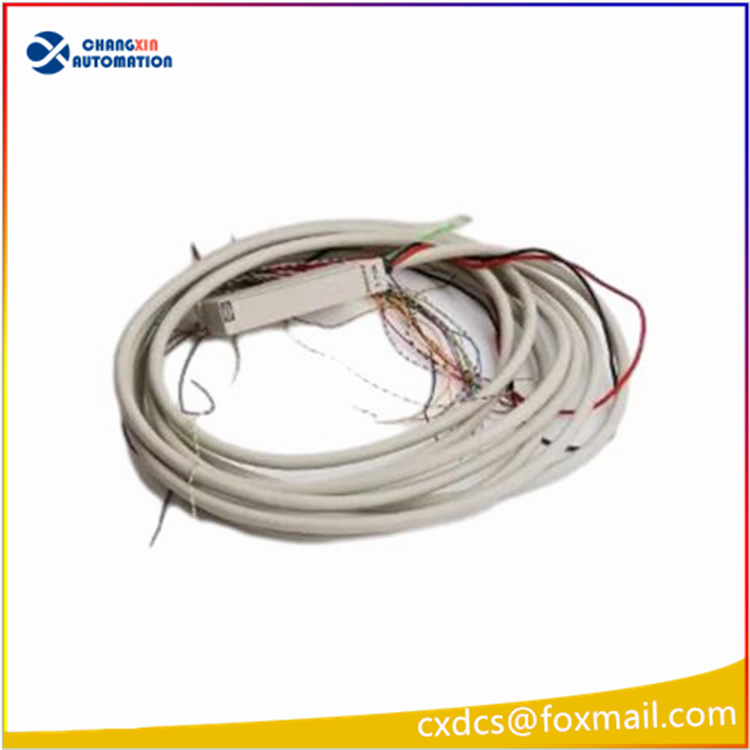

HIMA Z7108/3237/W/R1 Complete Set of Cable Connectors

I. Interpretation of Complete Model Segments Z7108/3237/W/R1
Z7108: Front connection plug / terminal connector (external cable connector for F3237 DI module)
3237: Adapter for host card model Z7108 (HIQuad series 8-channel safety digital input module)
C7: Prefabricated cable total length 7 meters (C5 = 5m, C10 = 10m)
R2: Cable sheath / wiring standard R2 version, shielded twisted industrial cable, with EMI anti-interference treatment
Original material code: 933237100-7 (corresponding to 7-meter length)

Core information of the supporting core card Z7108
Module positioning
HIQuad QMR four-redundancy safety PLC dedicated 8-channel 24VDC safety digital input module, SIL3 certified, used for ESD, F&G, BMS safety circuit collection of emergency stop, pressure / level switch, NAMUR proximity switch.
Channels: 8 dual-channel voting DI (1oo2 diagnosis)
Input type: 24VDC contacts / NAMUR 8.2V intrinsically safe proximity switch compatible
Safety level: IEC61508 SIL3, Cat.4 / PL e
Built-in diagnosis: Real-time reporting of line break, short circuit, loop fault to CPU
Installation: 19-inch VME rack slot, supports hot-swappable power-on

Core specifications of Z7108 cable plug
1. Hardware structure
One end: Z7108 32-pin European-style plug, directly inserted into the rear socket of F3237 module
The other end: Discrete wire outlet (can be wire-welded at the site for connection to on-site instruments)
Cable: Multi-core shielded twisted wire, industrial flame-retardant, oil-resistant, wear-resistant
Protection: Plug body IP20, cable meets CE/ATEX Zone2 explosion-proof wiring requirements
2. Electrical parameters
Rated voltage: 250V DC
Single-core current carrying capacity: Maximum 3A
Loop impedance matching: ≤50Ω, longest single cable length of 1000m without signal attenuation
Operating temperature: -20℃ ~ +70℃; Storage – 40~+85℃
Insulation resistance: ≥10¹² Ω
3. Length version distinction Table
Model suffix Cable length Material number
C5 5 meters 933237100-5
C7 7 meters 933237100-7 (This model)
C10 10 meters 933237100-10
4. Differences in R suffix versions
R1: Basic single shielded cable
R2: Double-layer overall shielding + split-core shielding, specially designed for strong electromagnetic interference scenarios (power plants, refining and chemical plant frequency converter cabinets), with stronger anti-interference performance
Four. Logical assembly usage
F3237 module is inserted into the HIQuad safety rack;
Z7108 plug is inserted into the rear interface of the module;
7-meter pre-extended cable is extended to the on-site terminal cabinet, and the loose wire end is connected to the on-site switch / proximity sensor;
The module has dual-channel collection inside, the cable is fully shielded to suppress interference, and meets the SIL3 safety circuit wiring specification.
