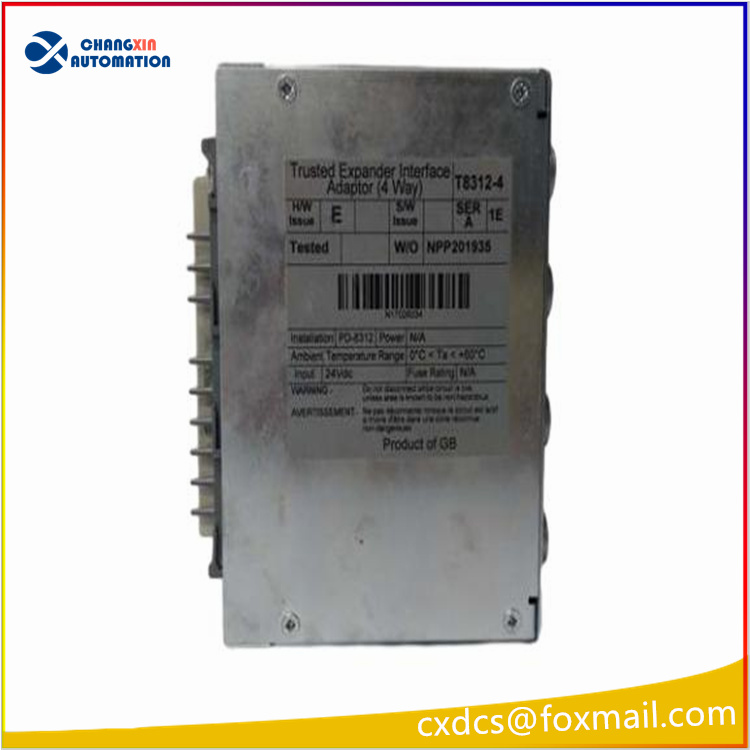

I. Model Description P8312-04
Ownership: Rockwell / ABB ICS Triplex Trusted – Triple Redundancy TMR Safety SIS System
-04 = 4 expansion channels, up to 4 remote I/O expansion enclosures can be connected; also, T8312-7 can accommodate 7 expansion enclosures
Core Function Positioning
High-speed TMR bus transfer adapter between the controller chassis and the remote expansion I/O chassis
Installed on the back of the main control frame and plugged into the 96-pin socket of the T8311 expansion interface module

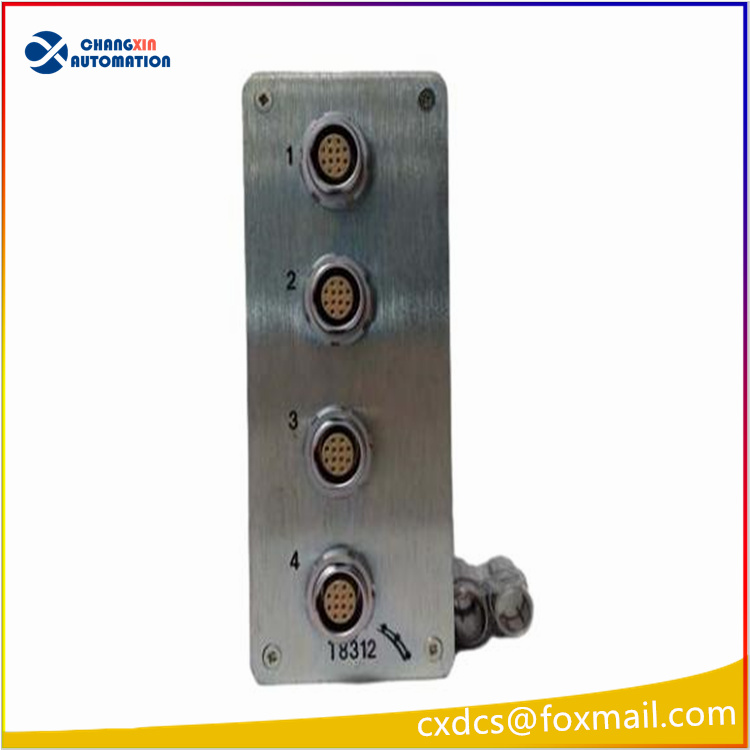

4 12-pin ODU aviation lock connectors on the front panel, connected to the T8310 processor interface cards of each expansion chassis via dedicated shielded cables
Full three-mode redundant TMR communication, no interlock shutdown in case of single-line cable/channel failure, meeting SIL3 safety level
Uniformly allocate expansion chassis ID addresses, enabling long-distance I/O expansion, with the longest total bus length of 1200 meters
Hardware Structure and Interfaces
Backplane bus: Dual-row 96-pin C-type connector, connecting to the T8311 expansion interface card of the main control chassis
External output: 4 12-pin circular aviation plugs (1/2/3/4 channels), with snap fastening to prevent loosening
Shell: Full metal shielded enclosure, with EMC anti-strong electromagnetic interference, suitable for power plants and chemical explosion-proof cabinets
Disassembly: Side release buttons, supporting online hot plugging, no system shutdown required for replacement
Electrical and Environmental Parameters
Power supply: 24VDC power taken from the backplane of the main control frame
Communication rate: 12Mbps TMR high-speed differential bus
Operating temperature: -40℃ ~ +70℃
Protection: IP30 installed in the cabinet
Weight: Approximately 0.65kg
Certifications: TÜV SIL3, ATEX, IEC61508
System Component Combinations
Main control frame: T8110B / T8110C controller chassis
Main control side interface card: T8311 (inserted into the main control slot)
Adapter: T8312-4 (P8312-04)
Expansion chassis side: T8310 expansion processor interface card
Expansion chassis: Equipped with I/O cards such as AI/DI/AO/DO, thermocouples, vibration collection, etc.
Version Differentiation Table
Model Number of Expansion Enclosures That Can Be Installed Applicable Scenarios
T8312-4 / P8312-04 4 units Small and medium-sized SIS safety systems
T8312-7 7 units Large chemical and thermal power multi-measurement point systems
Typical Application Industries
Power / Gas Turbine SIS Safety Instrumented Interlock System
Petroleum Refining, Coal Chemicals Emergency Shutdown ESD System
Air Separation, Oil and Gas Platform Compressor Unit Protection
Boiler, Pressure Vessel Triple Redundant Safety Control System
