ICS TRIPLEX TC-205-02-8M5-2 Dual-Slot Companion Cable

ICS TRIPLEX TC-205-02-8M5-2 Dual-Slot Companion Cable

1. Brand and Model Description
Brand: ICS Triplex (Trusted TMR triple-redundant safety system under Rockwell Automation)
Full model breakdown: TC-205-02-8M5-2
TC-205: Series code for the Trusted I/O companion slot cable (dual-slot accessory cable)
02: Standard 40-channel version, connecting TMR output modules to FTA field terminal bases
8M5: Cable total length of 8.5 meters
-2: Hardware version 2, upgraded LSZH (low smoke zero halogen) shielded variant

Product Positioning
Dedicated internal interconnect cable for safety systems, designed for ICS Triplex Trusted SIL3 triple-redundant ESD/safety instrumented systems:
– Connects main I/O slot modules to redundant companion slots, enabling seamless hot standby switchover without interruption
– Transmits 40 isolated analog/digital signals and backplane power circuits
– Establishes secure signal links between the main control cabinet rack and FTA field terminal bases
– Meets deterministic timing requirements for SIL3 safety loops in petrochemical and power plant applications

Key Specifications
1. Cable Structure
– Channel capacity: 40-channel composite signal cable integrated with 24V auxiliary power line
– Shielding: Dual-layer copper braid shielding for strong electromagnetic interference resistance (suitable for high-frequency, high-voltage environments in power plants and chemical facilities)
– Jacket: LSZH (low smoke zero halogen) flame-retardant material, compliant with explosion-proof cabinet fire safety standards in chemical industries
– Length: 8.5m (standard 8M5 length; other lengths available: 4.5m, 6.5m, 12.5m within the same series)

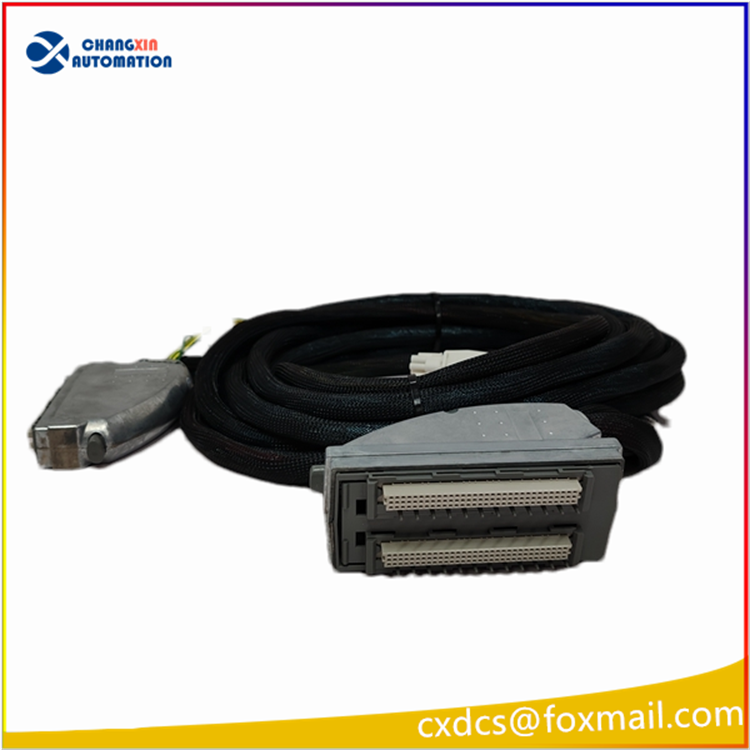

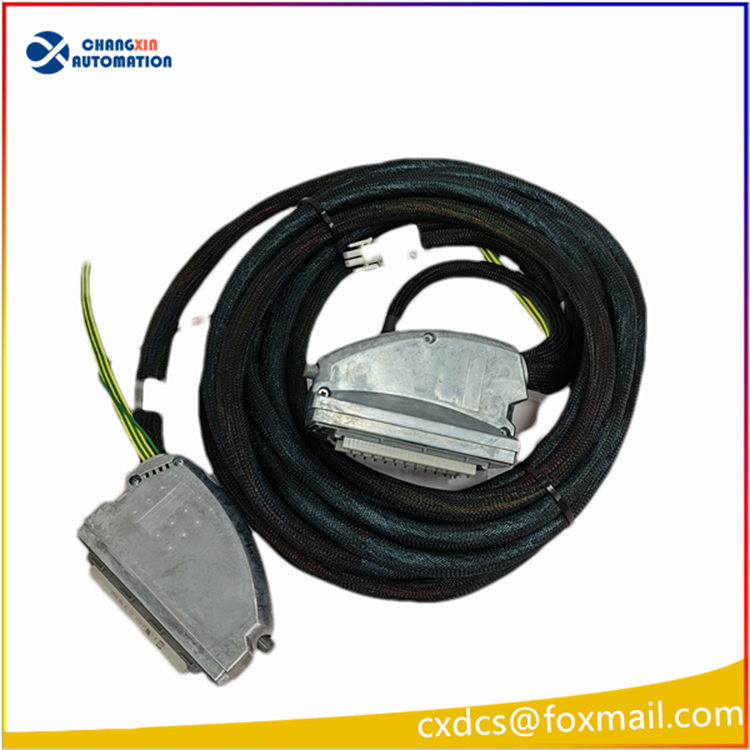

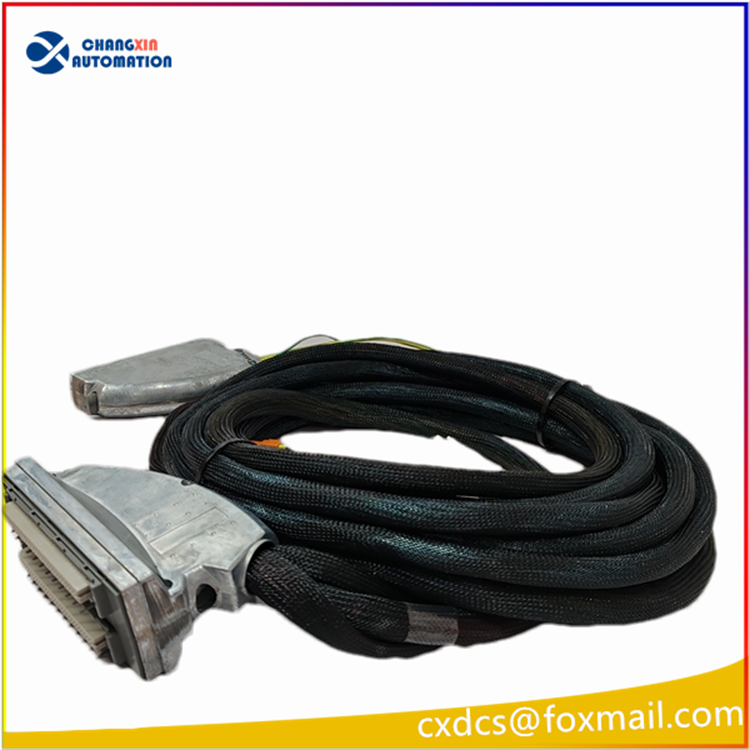

2. Connectors
– Heavy-duty, high-density rectangular metal connectors on both ends, featuring dual-side locking screws to prevent loosening
– One end connects to the Trusted rack’s dual-slot I/O backplane; the other end connects to the FTA terminal base

3. Electrical and Safety Ratings
– Safety certification: SIL3, compliant with IEC 61508 and IEC 61511 process safety standards
– Voltage withstand: 500V AC insulation between conductors
– Operating temperature: -40°C to +70°C, intended for fixed installation inside cabinets
– Bending radius: ≥10 times the cable outer diameter; hard bending or heavy compression prohibited

Version Differentiation (-1 / -2) Table
Model Suffix | Version Differences | Application Scenarios
TC-205-02-8M5-1 | V1: Basic shielding, standard PVC sheath | Indoor general-purpose control cabinets
TC-205-02-8M5-2 | V2: Upgraded dual-layer shielding + LSZH low smoke zero halogen | Chemical, oil & gas, power plant explosion-proof / enclosed cabinets (mainstream in-stock model)

 Compatible Cards and Systems
Compatible with Trusted TMR output modules: T8451, T8480, T8431, etc., 40-channel I/O cards
Matching FTA terminal bases: T8452, T8481 field wiring terminal blocks
System architecture: Triple-redundant safety shutdown ESD, burner management BMS, fire and gas F&G systems
Functional features: Supports hot-swapping of redundant modules; no interruption to safety circuits during cable faults

Installation and Maintenance Guidelines
Route cables separately from power cables to avoid interference from inverters and contactors
Ensure connector locking screws are fully tightened—loose connections may cause false alarms under vibration conditions
Do not cut or extend cables; altered lengths disrupt TMR triple-mode synchronization checks
Replacement must use identical length and version TC-205 cables; mixing versions will trigger I/O channel mismatch faults

 Length Correspondence for the Same Series
TC-205-02-4M5: 4.5 meters
TC-205-02-6M5: 6.5 meters
TC-205-02-8M5: 8.5 meters (your base model; -2 is the improved version)
TC-205-02-12M5: 12.5 meters
