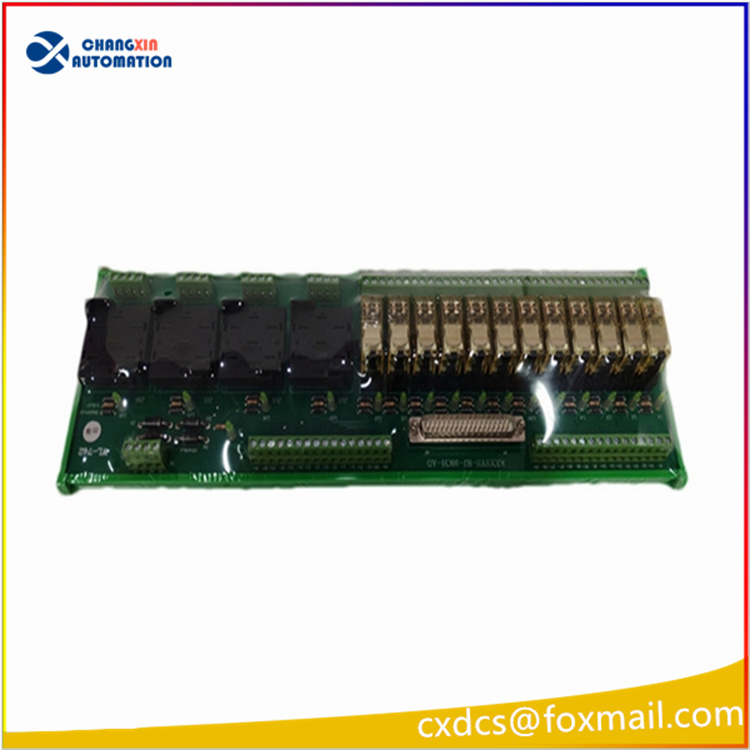

KEYSYS KEYSYS-RJ-16CH-AD Signal Conditioning Interface Board

Basic Information
Model: KEYSYS-RJ-16CH-AD
Product Category: 16-channel analog input terminal module / A/D signal conditioning interface board
Brand: KEYSYS (Industrial Signal Interface Series)
Installation Method: DIN rail snap-in installation

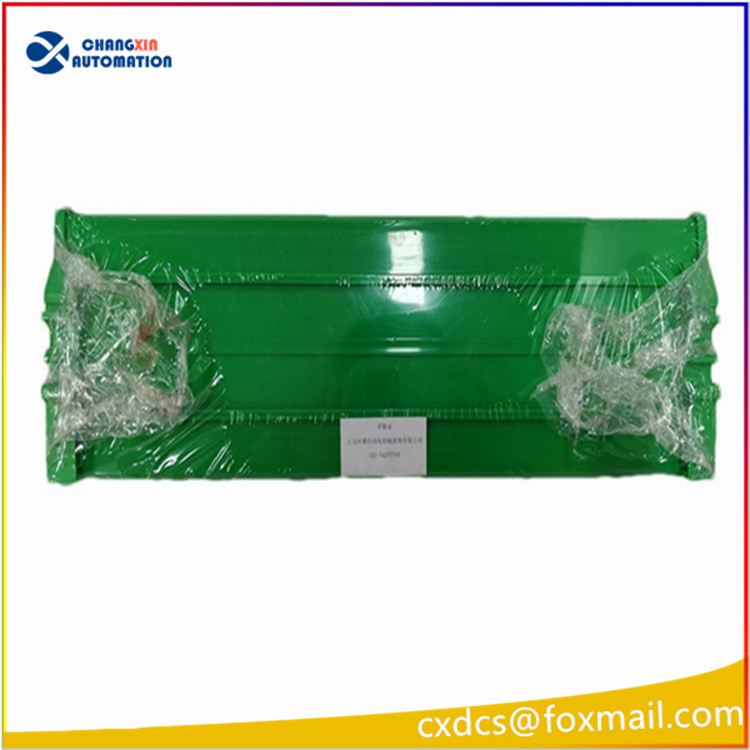

Shell: Green European-style terminal base

Core Specifications
Channels: 16CH Analog Input
Supported Signals: 4–20mA, 0–20mA, 0–5V, ±10V (Industrial standard transmitter signals)
ADC Specifications: 16-bit Analog-to-Digital Conversion
Interface Form: Terminal strip + DB37 Parallel Bus Interface (for connection to the main control acquisition card)
Power Supply: DC24V
Operating Temperature: -10℃ ~ +60℃
Protection Grade: IP20 (installed in the cabinet) Function Description
Industrial sensor signal conversion, filtering, impedance matching;
Collecting multiple analog signals and transmitting them through DB37 wiring to the upper-level acquisition motherboard;
Some versions come with simple protection for channel overvoltage and surges;

Name explanations:
RJ = Rack Junction Rack Signal Transceiver
16CH = 16 channels
AD = Analog-Digital Analog-Digital Acquisition Terminal Board Application scenario
DCS system, equipment condition monitoring system
Multi-point pressure / temperature / flow measurement for fans, compressors, pump stations
Test bench, factory automation centralized wiring of multiple analog signals
