MOOG D136-001-007 Dual-axis Hydraulic Servo Motion Controller

MOOG D136-001-007 Complete Information
I. Product Positioning

MUG MSC I Series Dual-axis Hydraulic Servo Motion Controller (manufactured by German original factory), specifically matched with MOOG electro-hydraulic servo valves, realizes integrated control of position/velocity/force in a closed loop. It comes with an embedded PLC and can complete the synchronization of equipment logic and motion without an additional PLC.

Core Hardware Parameters
Processing Core
40 MHz PowerPC 32-bit floating-point processor; 4MB Flash program storage + 4MB RAM; Minimum closed-loop cycle 100μs, standard 500μs.
Power Supply
Standard 24V DC direct current supply, built-in overvoltage / overcurrent / overtemperature hardware protection, automatically cuts off servo output and alarms when exceeding 75℃.
Analog Channels (16-bit high precision)
8 analog inputs: support ±10V / ±10mA / 4–20mA (sensors, pressure, displacement feedback)
2 analog outputs: ±10V, directly drive servo valve torque motor
Digital I/O

Multiple high-speed digital input/output, supports limit, enable, fault relay output.

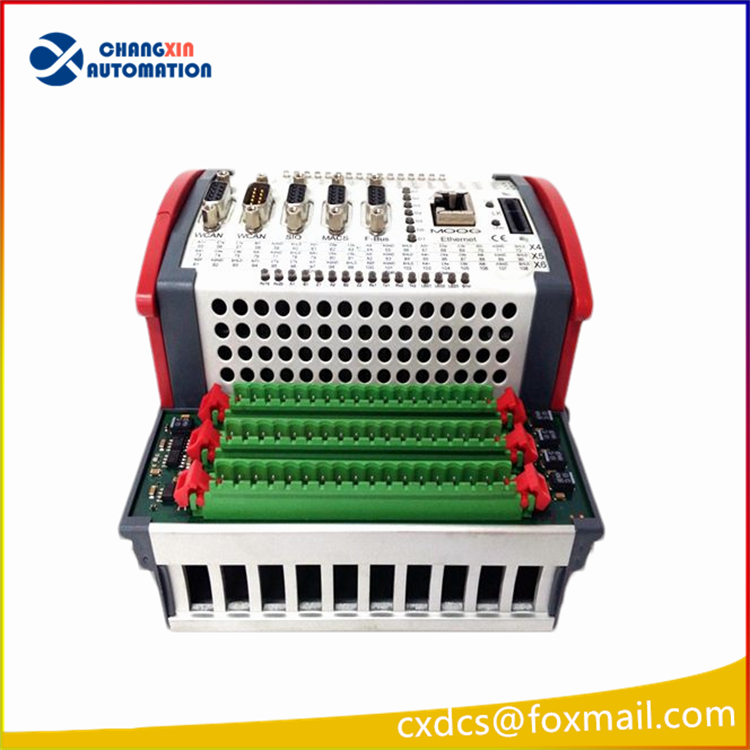

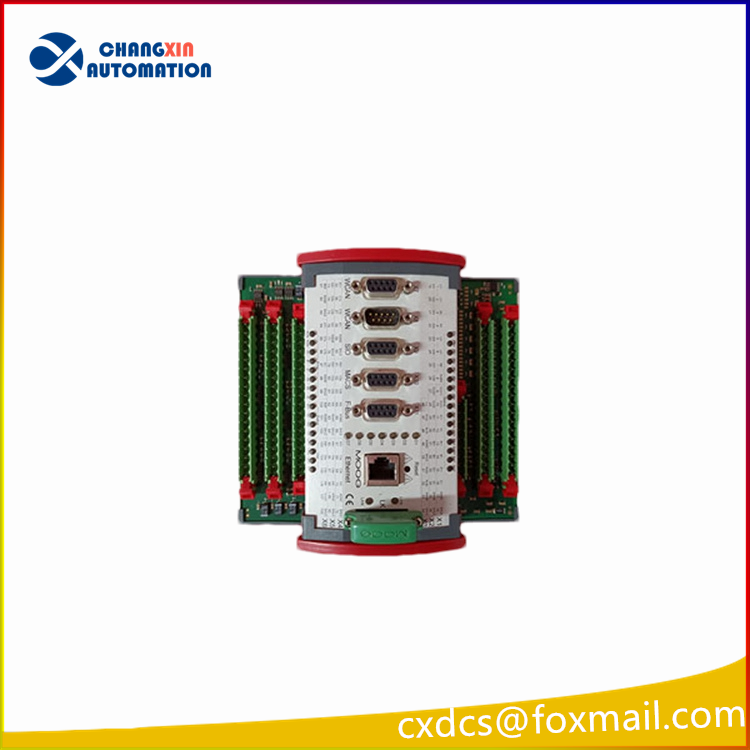

Front communication interface (panel DB interface)
WCAN×2: CANopen bus, multi-controller synchronous networking
SIO: RS232 free serial port
MACS: dedicated serial port for debugging upper computer software
F-Bus: expansion bus
Ethernet: network port, program download, remote monitoring
Side expansion E-Bus: up to 7 external I/O expansion modules
Optional Buses: Profibus-DP slave module, compatible with Siemens PLC system

Software and Control Capabilities
Programming Software: MACS (MOOG Axis Control Software), follows IEC 61131 standard programming
Control Modes: Dual-axis independent / synchronous electronic gear, position closed loop, velocity closed loop, force / pressure closed loop
Compatible Valves: MOOG D634, 7600, D792 and other series electro-hydraulic servo valves, output ±10mA standard drive current
Diagnostic Function: Real-time collection of servo valve coil current, oil temperature, system pressure; 8 types of fault self-diagnosis (open circuit, short circuit, over-temperature, signal loss), LED local alarm + bus fault code upload

Environmental Specifications
Operating Temperature: 0℃ ~ +55℃ (in control cabinet)
Storage Temperature: -40℃ ~ +70℃
Electromagnetic Compatibility: industrial-level double-layer shielding, anti-surge ±4kV, complies with EN 61000 industrial standards, suitable for strong interference scenarios in metallurgy, forging

Typical Application Scenarios
Metal Forming: Rolling mill AGC thickness control, hydraulic press, bending machine
Material Mechanics Testing: Fatigue testing machine, tensile / compression force control equipment
Energy Equipment: Power plant DEH steam valve hydraulic servo system
Simulation Equipment: Flight motion simulator, multi-degree-of-freedom hydraulic platform
Military / Precision Tooling: High-precision positioning hydraulic actuation system
