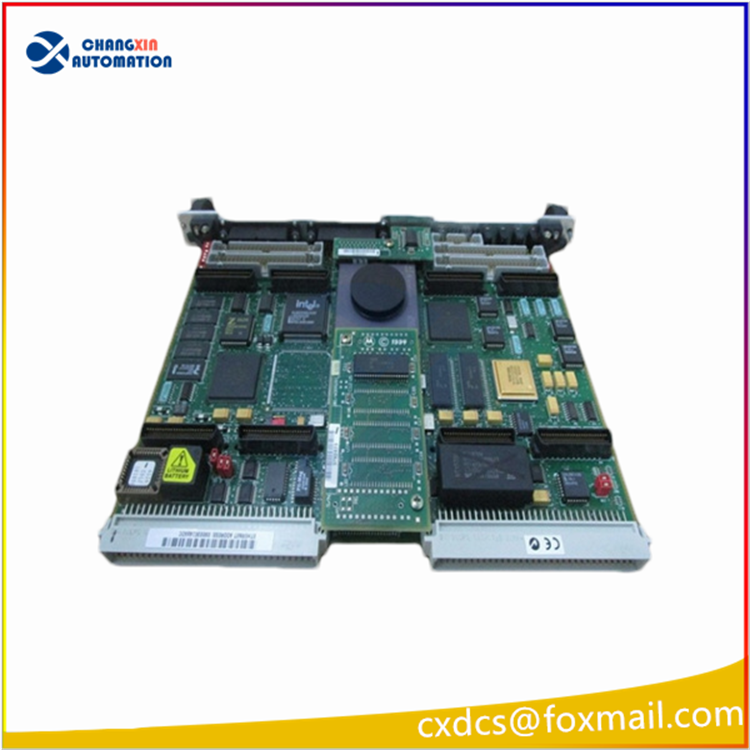

 Motorola MVME162‑010A VME Bus Single Board Computer

 Product Description

MVME162‑010A is a 6U VME bus industrial single board computer (SBC) in the Motorola (formerly Emerson) MVME series, equipped with the MC68LC040 processor and serving as the main controller of the VME chassis; it supports real-time operating systems such as VxWorks, and has 4 sets of IndustryPack expansion slots and two serial ports; there is no onboard Ethernet or SCSI interface.

Key Technical Specifications

– Brand: Motorola (Motorola / Emerson)
– Model: MVME162-010A
– Product Type: VMEbus Single Board Computer (SBC)
– CPU: MC68LC040, 25 MHz main frequency, 8KB cache, MMU, no floating-point unit FPU
– Memory: 4MB DRAM; 512KB battery-backed SRAM; EPROM/Flash for firmware booting
– Bus Standard: VMEbus (IEEE-1014) 6U single high-profile card, P1/P2 backplane interfaces
– Expansion Slots: 4 IndustryPack (IP) expansion slots
– Communication Interfaces: 2 serial ports, configurable RS-232/RS-422; **No built-in Ethernet, no SCSI**
– Watchdog: Built-in hardware watchdog, timer
– Power Supply: +5V DC as the main power supply, backplane power extraction
– Operating Temperature: 0 ~ +55℃
– Storage Temperature: -40 ~ +85℃
– Protection Level: IP20, used in cabinet interior

 Application Fields

Power control systems, rail transit equipment, metallurgical DCS, military measurement and control equipment, semiconductor old equipment, industrial real-time control systems, VME bus aged equipment maintenance.

Same Series Models (MVME162 Series)

1. MVME162-010A: 25MHz, 4MB memory, 4×IP slots, 2 serial ports, **no network port, no SCSI**
2. MVME162-011A: 25MHz, 4MB memory, with SCSI interface, no Ethernet
3. MVME162-012A: 25MHz, 4MB memory, with Ethernet, no SCSI
4. MVME162-013A: 25MHz, 4MB memory, with Ethernet + SCSI
5. MVME162-002: Basic version, 1MB DRAM
