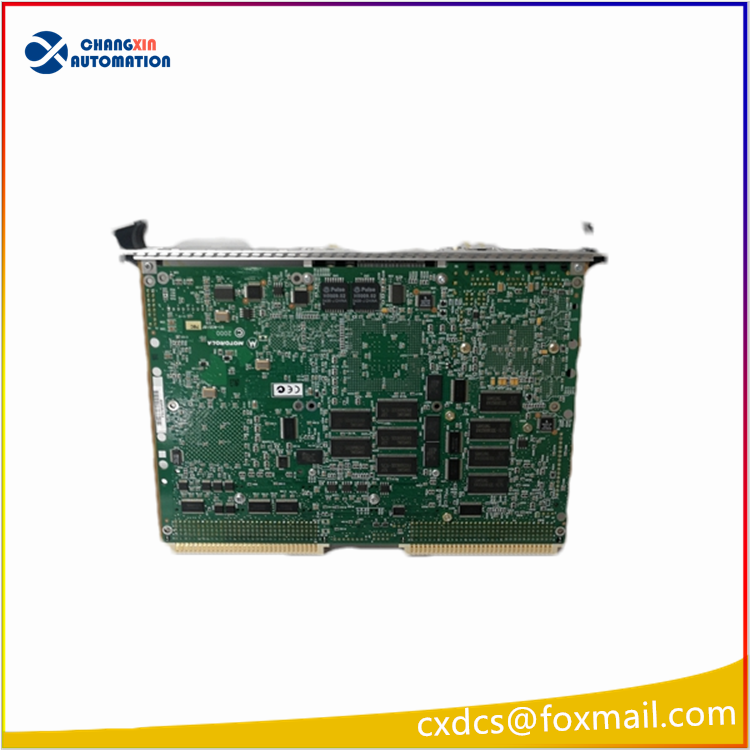

The MOTOROLA MVME5100 single-board computer is a high-performance embedded computing device based on the VME bus architecture. It is equipped with a PowerPC processor and features powerful computing capabilities, a rich set of interface configurations, and excellent environmental adaptability. It is suitable for applications in industrial automation, military electronics, communication equipment, and test and measurement fields.
Core Configuration
Processor: The MVME5100 supports a variety of high-performance processor options, including Motorola’s MPC7400, MPC7410 (using AltiVec technology), low-power MPC750 series or MPC755 series processors. These processors have excellent computing capabilities and processing speeds, which can meet the requirements of complex systems and applications.
Cache: Equipped with 32KB L1 cache and can be equipped with up to 2MB of auxiliary back-end cache, which helps to improve the performance and data access speed of the processor.
Memory: Supports up to 1GB of SDRAM memory, and the memory capacity can be increased through a memory bridge card to meet the needs of large data processing.
Storage: Usually equipped with a 2GB IDE hard disk or solid-state drive for storing the operating system and applications.
Interface Configuration
I/O Interface: Offers a variety of interfaces, including 2 RS-232C serial ports, 10/100BaseTX Ethernet interfaces, etc., facilitating the connection of various external devices and sensors.
Expansion Capability: Features 1 PCI slot and 1 CompactFlash slot, supporting extensive peripheral expansion. Additionally, it provides 32/64-bit PMC expansion slots, enabling expansion through industry-standard processor PMC modules.
Network: Supports dual 10BaseT/100BaseTX Ethernet interfaces, providing high-speed network communication capabilities.
Environmental Adaptability
Operating Temperature: The commercial version has an operating temperature range of 0°C to 55°C, while the extended temperature version has an operating temperature range of -20°C to 71°C, and some models can operate stably in extreme temperature environments of -40°C to +85°C.
Humidity Requirements: The relative humidity range is between 5% and 95%, without condensation, ensuring the reliability of the equipment in humid environments.
Power Input: Supports a wide range of DC power inputs (+5V, ±12V), adapting to different industrial site power conditions.
Application fields
Industrial Automation: Used to build industrial control systems, data acquisition systems and real-time processing systems, to achieve automation and optimization of the production process.
Military Electronics: Provides necessary computing capabilities and stability in military applications such as radar signal processing and image processing.
Communication Equipment: As the core processing unit of base station equipment and network equipment, it supports data processing and communication control.
Test and Measurement: Used in test and measurement fields such as data acquisition and signal analysis, to meet the requirements of complex systems with high demands for data processing and real-time computing.
