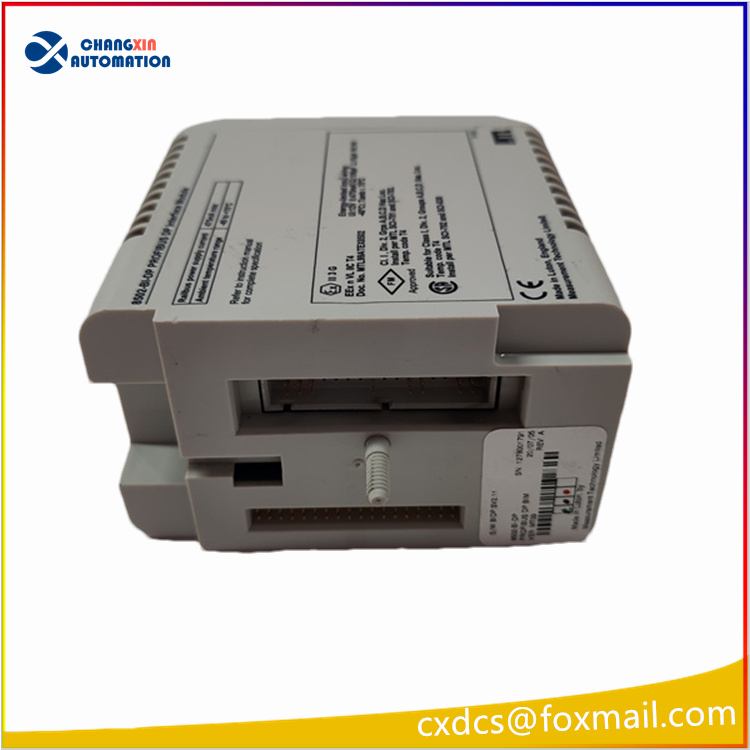

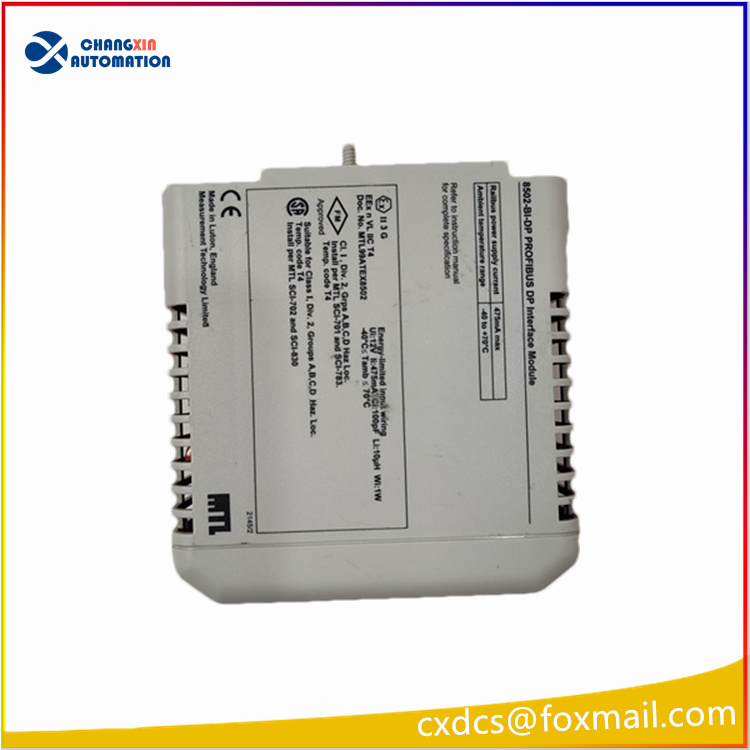

MTL 8502-B1-DP Safety Barrier BIM Bus Interface Module

MTL 8502-B1-DP (Standard model: 8502-BI-DP, commonly abbreviated as B1-DP in the industry)
I. Basic Product Information

Brand: MTL (a brand under Spectris, a leading brand in explosion-proof safety barriers)
Product type: BIM bus interface module (Bus Interface Module)
Series: MTL8000 series of intrinsically safe remote I/O system
Bus protocol: PROFIBUS-DP slave module
Main purpose: As the gateway main card of the MTL8000 intrinsically safe I/O rack, it collects the intrinsically safe I/O signals from the hazardous area and uploads them via the DP bus to Siemens PLC, Yokogawa/Honeywell DCS systems, supporting HART instrument data transmission. It is mainly used in petrochemical, chemical, and natural gas explosion-proof Zone 1 and Zone 2 scenarios.

Core Hardware Parameters
Bus Specifications
Maximum rate of PROFIBUS-DP: 6Mbps
Maximum number of modules per block: 24 MTL8000 series I/O safety barrier modules
DP interface: 9-pin D-SUB female port, electrical isolation 500V, anti-ground loop interference
Supports DP-V1, capable of reading HART transmitter parameters, fault diagnosis information
Power supply method
Powered by the Railbus backplane of the MTL8000 rack, typical current 420mA
No need for an external 24V power supply, directly draw power from the base
Explosion-proof certification: ATEX, IECEx, Ex ia/ib intrinsically safe certification, can be connected to 0/1/2 zone hazardous site circuits
Environmental parameters
Operating temperature: -20℃～+60℃
Storage temperature: -40℃～+85℃
Protection level: IP20, DIN rail-mounted installation
Storage configuration: Non-volatile flash memory, I/O configuration parameters are saved even when power is off, no need for repeated configuration

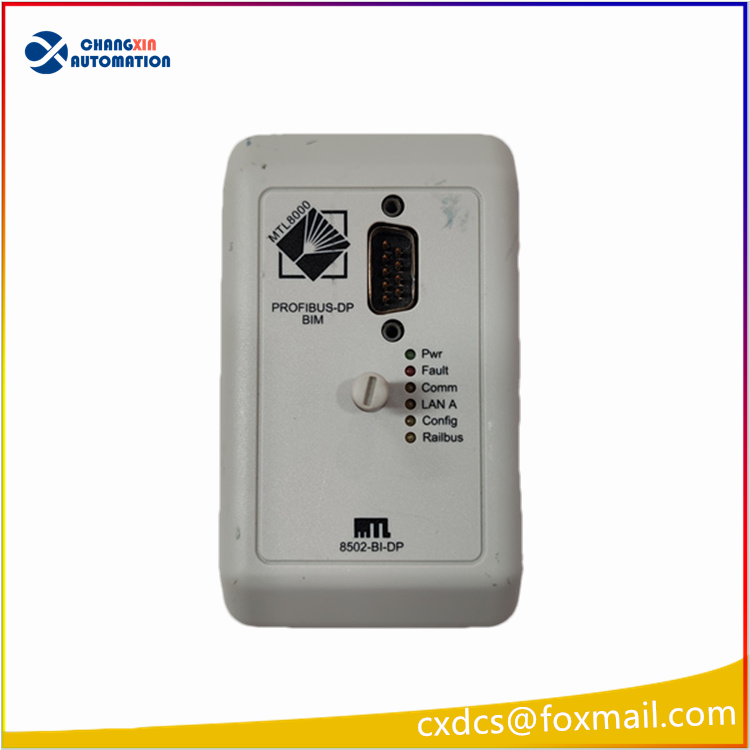

Front panel indicator light explanation
Pwr: Power indicator, constantly on = Backplane power supply is normal
Fault: Fault alarm, lit = Bus abnormality, I/O module failure, configuration error
Com: Bus communication flashing = Normal data interaction between DP master station
Config: Constantly on = Module has completed configuration; flashing = Waiting for configuration download
Railbus: Rack backplane communication status light

Core Function and Features
Intrinsically safe bus gateway
Used on the control room side of the intrinsically safe area, connects to on-site intrinsically safe AI, AO, DI, DO safety barrier modules, isolates high-energy surges in the hazardous area, meeting chemical explosion-proof specifications.
HART protocol transmission
Can remotely read two-wire HART transmitter range, temperature, fault code via the DP bus, supports remote instrument calibration, asset management.
Full-link fault diagnosis
Can report single-channel break, short circuit, module missing, bus timeout and other fault information, DCS side directly makes alarm and interlock.
Flexible networking
Up to 125 slave stations in a single DP segment, each 8502-BI-DP occupies 1 DP station address, DIP code setting DP slave station address (1~125).

Commonly used I/O modules
MTL8000 series: MTL8511 (4 channels AI), MTL8513 (4 channels AO), MTL8521 (DI), MTL8523 (DO) intrinsically safe safety barriers
Matching rack: MTL8900 series 16-slot, 24-slot installation base

Model suffix explanation
BI: Bus Interface standard bus interface version (the mainstream 8502-BI-DP in the market, your model B1 is a handwritten abbreviation)
DP: PROFIBUS-DP bus interface There is no other hardware version. 8502-B1-DP and 8502-BI-DP are the same product.
VII. Typical Application Scenarios
For petroleum refining and chemical production, LNG, pharmaceuticals, and long-distance oil and gas pipelines with explosion-proof functions, they are used in hazardous areas for remote safe collection of 4-20mA analog and switch quantity signals, and are connected to Profibus DP type DCS/PLC control systems.
