I. Brand Ownership Explanation
Panel printing is labeled as CONVERTEAM (Converteam), commonly known as ABB P110-6052 in the industry; Company History: Converteam was acquired by ABB and later merged as a whole into GE Vernova (GE Energy), with the internal hardware code being KEMAC-XR2001-A20.

Basic Hardware Specifications
Power Supply: DC 18～36V wide-range DC, standard 24VDC for the cabinet, total power consumption ≤ 25W, supports dual power supply redundancy input and reverse connection protection
Processor: 32-bit PowerPC dual-core industrial real-time CPU, VxWorks hard real-time system, minimum control cycle ≤ 1ms, meets the SIL safety closed-loop requirements for turbines / transmissions
Storage: Large-capacity NAND Flash firmware, fault recording, SOE events; ECC error-correction memory to prevent electromagnetic interference from causing calculation errors
Heat Dissipation: Integrated aluminum alloy heat sink, fanless natural cooling, suitable for high-reliability working conditions in power plants / offshore
Form and Protection
Size: 260×143×75mm, wall-mounted metal enclosure
Net weight: 3.5kg
Protection Level: IP20 (installed in the cabinet)
Operating Temperature: -20℃ ~ +70℃; Storage – 40℃~+85℃
Anti-Vibration: 5g (10–2000Hz), CE and classification society certifications

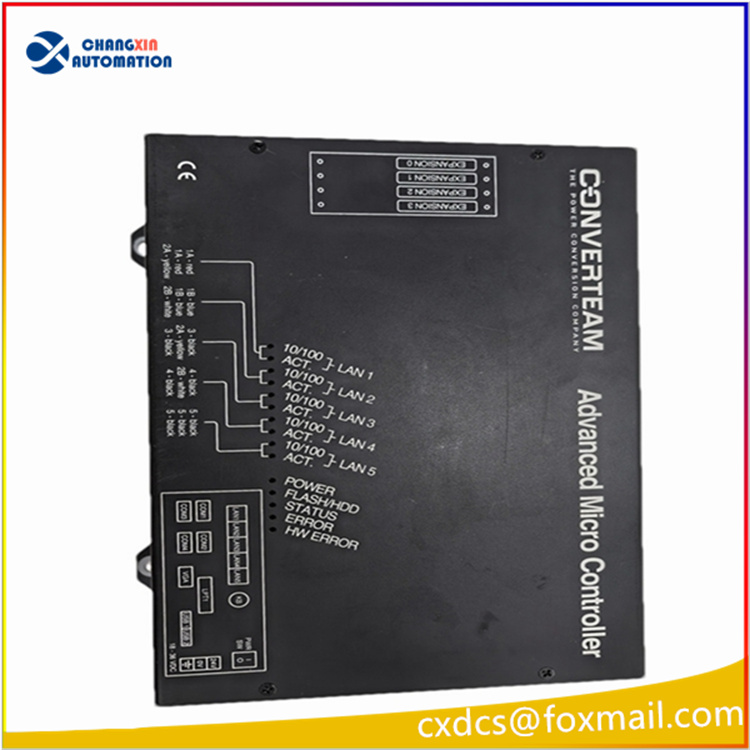

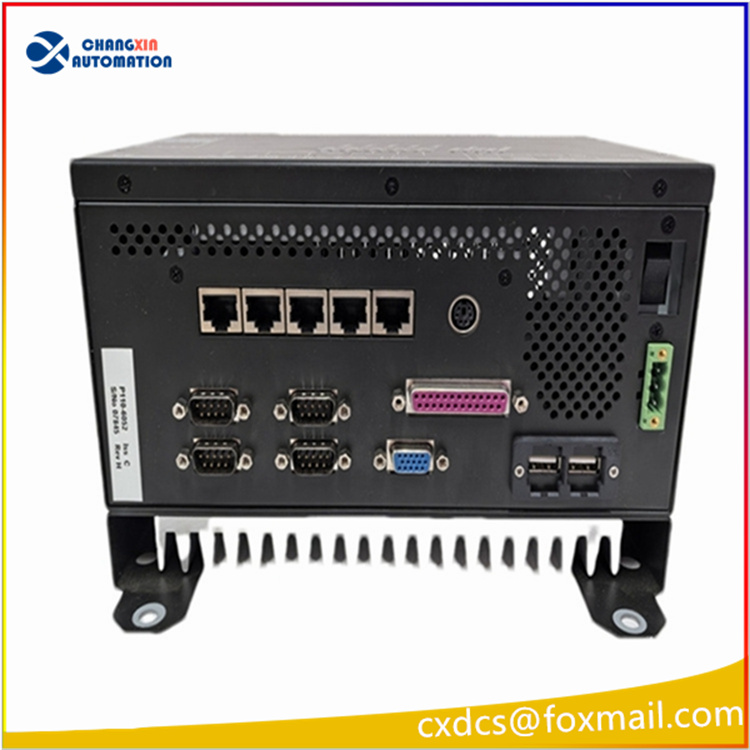

Full Interface Configuration (Front Panel Zones)
1. Ethernet (LAN1~LAN5, a total of 5 RJ45 ports)
Gigabit industrial Ethernet, supports redundant ring network, IEEE1588 precise clock synchronization
Protocols: Modbus TCP, EtherNet/IP, DNP3, IEC60870-5-104
Purpose: Connect to upper-level HMI, remote IO substation, multi-controller synchronous communication
2. Serial Communication (DB9 serial port)
4 independent RS232/RS485 adaptive ports, supports Modbus RTU, third-party instruments, and old-fashioned analyzers for connection
3. Human-Machine Interface Peripheral Devices
VGA video interface: local on-site debugging display
PS/2 keyboard and mouse interface: on-site parameter modification, logic monitoring
USB2.0×2: program download, fault curve export, firmware upgrade
4. Terminal Block (green wiring terminals on the right side)
24VDC power supply terminals
Hardware fault relay output
External hardware emergency stop safety signal input
Analog expansion (0–10V / 4–20mA sensors connected)
5. Status Indicators
POWER power, RUN operation, COM communication, HW FAULT hardware fault, TEMP overheating alarm

Core Control Functions
Multi-mode Closed-loop Control
Speed / Position / Torque / Pressure composite closed-loop; gas turbine fuel valve speed regulation, large-power transmission torque adjustment, short-term support for 2 times rated torque output
IEC 61131-3 standard programming
Supports ladder diagram LD, function block FBD, structured text ST, writing unit control, ESD emergency stop safety interlock logic
Dual-machine 1:1 hot redundancy
No-jam switching between main and backup controllers, switching within milliseconds, suitable for critical safety circuits in power plants / ships
Full-channel Self-Diagnosis
Hardware self-check, communication disconnection, sensor short circuit, over-temperature, over-current real-time recording of fault recording curves, remote upload to upper-level system
IO Expansion Capability
External analog/digital IO subboard, collecting temperature, pressure, limit, valve feedback, output electromagnetic valve, actuator control signal

Supporting Software
Special Configuration and Debugging Tools: Kemac Developer
Control logic writing, parameter setting
Built-in oscilloscope, real-time monitoring of speed, pressure, torque dynamic curves
Firmware online upgrade, overall parameter backup / restoration

Typical Application Scenarios
Power Generation Industry: Gas / steam turbine speed control system, ESD protection main control for combined cycle units Marine Vessels: Main propulsion motor, side thruster controller, control of offshore platform oil and gas equipment
Heavy-duty Transmission: Rolling mills, coiling machines – high-precision motion control
New Energy: Wind turbine pitch control, high-power inverter core control unit
Industrial Test Bench: Material fatigue loading, hydraulic servo force control testing equipment

 Distinction of Series Models
P110-6050: Basic model, fewer network ports, small auxiliary transmission used
P110-6052: High-end configuration with 5 network ports, large-capacity storage, mainstream models for turbines / marine main transmission
P110-6053: With PMC expansion slot, can be externally connected with dedicated IO / communication expansion boards
P111-6052: Marine reinforced anti-corrosion wide-temperature version
