Parker ECD-INTERFACEKABEL-RS-232 Special Communication Cable Explanation
1. Model Interpretation

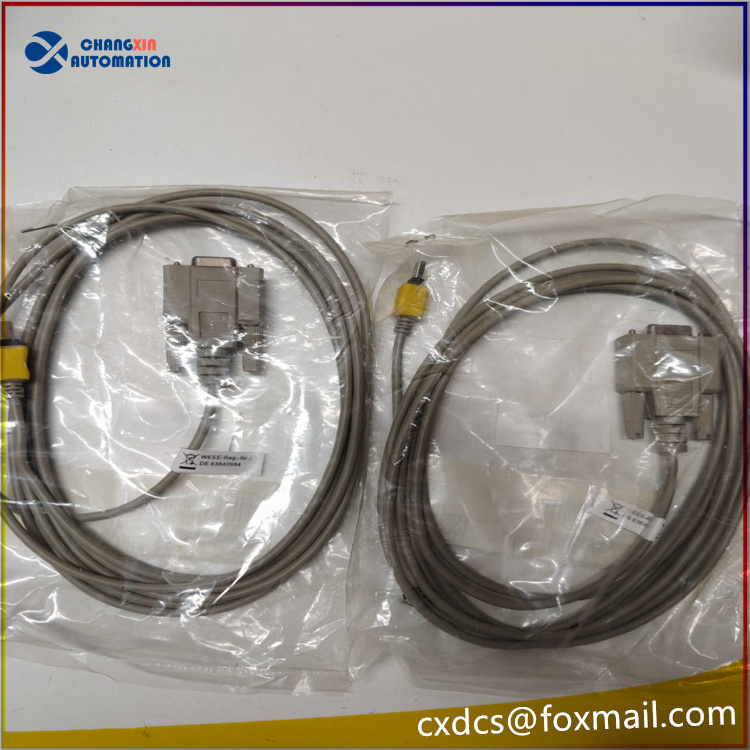

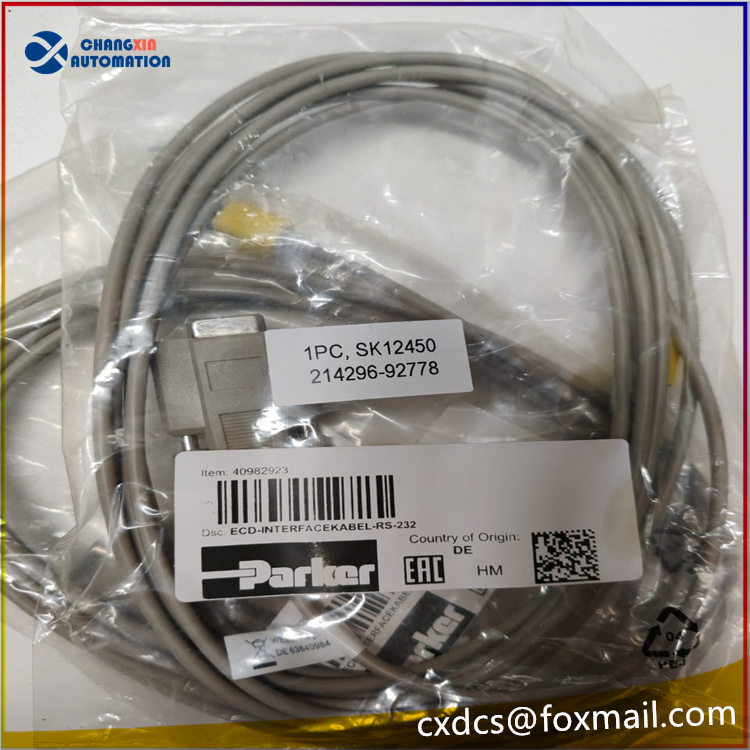

`INTERFACEKABEL` is a German term, literally meaning **interface cable**; this entire product is a dedicated RS232 debugging communication cable for Parker Parker’s original ECD series drives. It is an exclusive accessory for the equipment and cannot be replaced directly by ordinary universal serial cables.
Basic Hardware Features
1. Structural Process**
– Dual-layer shielded twisted-pair structure, suitable for industrial workshop environments with strong electromagnetic interference, reducing the probability of signal packet loss and communication interruption;
– Both ends of the connector are equipped with Parker ECD ports + standard DB9 (RS232) custom pins, the pin sequence is originally fixed by the manufacturer, and using a regular straight-through serial cable with an incorrect pin sequence will result in communication failure;
– The standard factory cable is approximately 2-3 meters long， suitable for on-site debugging distances in control cabinets， the standard effective transmission distance of RS232 ≤ 15 meters.
2. Communication Specifications
– Follows the standard RS232 asynchronous serial protocol， commonly used baud rates are 9600/19200/38400/115200 bps；
– Core three-wire communication： TX for sending， RX for receiving， GND for signal ground， with complete handshake control pins.
Core Functions
1. Parameter Configuration: On the computer, open the Parker-exclusive debugging software to modify the running parameters such as drive speed, torque, acceleration and deceleration, and protection thresholds online;
2. Operation Troubleshooting**: Retrieve the fault codes of the drive, historical operation records, and identify overload, communication errors, and encoder abnormalities;
3. Program Downloading: Write custom motion control scripts to the ECD series motion controllers;
4. Local Online Connection**: Use the old industrial control desktop computer (with DB9 serial port) to directly connect to the device without the need for USB-to-serial port conversion, resulting in higher stability.
