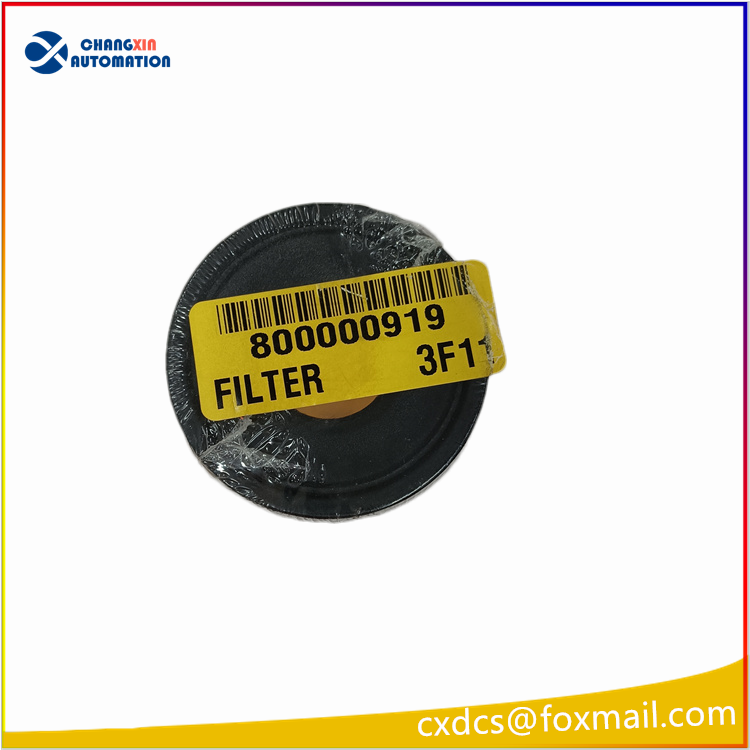

Pentek 3F11 (Material Code: 800000919) Industrial Precision Filter
I. Basic Information
Brand: Pentek (an industrial filtration brand under the Pentek Group)
Model: 3F11
Original Factory Material Code: 800000919
Product Type: Three-position Pipeline Precision Filter (3 Filter Bottle Integrated Filter System)
Product Status: The original factory has discontinued production. Most are circulation models for industrial control / fluid systems
Installation Method: Wall-mounted / Floor-standing bracket installation
Core Functions
Three-level Progressive Precision Filtration
It adopts three-stage sequential filter bottles for filtration, successively intercepting sand, rust, colloids, fine suspended substances, and oil and dirt impurities, protecting the flowmeter, solenoid valve, precision instruments, pneumatic-hydraulic components, and sampling pipelines of DCS analysis instruments, avoiding pipeline blockage, equipment wear, and measurement distortion.
Multi-condition Medium Adaptability
It can be used for process cooling water, instrument compressed air, water sample sampling medium, hydraulic oil, circulating pure water, etc. and is suitable for pre-treatment circuits of online analysis systems in power plants, chemical industries, and metallurgy.
Convenient Maintenance Design
Each filter bottle is independent and detachable, allowing for the replacement of corresponding precision filter elements separately; the filter bottle is equipped with a pressure relief valve as standard, enabling safe pressure relief before replacing the filter element to avoid high-pressure splashing; an external differential pressure gauge can be connected to monitor the degree of filter element blockage intuitively and predict the replacement cycle.
Corrosion-resistant and Pressure-resistant Structure
The filter bottle shell is made of reinforced polypropylene / stainless steel (optional), with an EPDM corrosion-resistant sealing ring inside, resistant to acids and alkalis, and able to withstand industrial corrosion, suitable for complex industrial fluid conditions.
Key Technical Parameters Table
Parameter item Specification parameters
Number of filter bottles 3 integrated single-stage filtration at one workstation
Standard filter element specification 10-inch universal DOE flat-bottom filter element
Inlet and outlet interfaces Standard NPT threads (common 1/2″ and 3/4″)
Maximum working pressure 8.6bar (125PSI)
Maximum working temperature 51.7℃ (125℉)
Sealing ring material Buna-N nitrile rubber (optional EPDM polyetheretherketone)
Recommended filtration accuracy combination Primary 20μm coarse filter → Secondary 5μm medium filter → Primary 1μm fine filter
Overall machine dimensions Approximately 150×240×350mm, total machine net weight 2.9kg
Typical configuration scheme for the fourth and fifth stages of filtration
First stage (pre-filter): melt-blown polypropylene filter element (20μm), intercept rust, sand, large particle impurities, protect the secondary precision filter element
Second stage (intermediate filtration): wound/folded filter element (5μm), remove colloids, fine suspended matter
Third stage (terminal fine filtration): precision folded filter element (1μm), ensure clean medium input for the rear-end instruments and sampling circuits
Typical application scenarios
Power plants, chemical DCS online flue gas / water quality analysis instrument sampling pre-treatment system, filter process water samples, condensate liquid of sample gas
Air compressor instrument air, hydraulic lubrication system oil circuit pre-filter, protect precision valves, cylinders, flow sensors
Pure water circulation system, electroplating, coating process fluid pre-filter
Replacement of old fluid pre-treatment equipment parts, maintenance and renovation of filter devices in analysis cabins
