Phoenix Contact VL PPC 6015 FLS 15 – 15-inch fanless industrial panel-mounted all-in-one computer

Phoenix Contact VL PPC 6015 FLS (Order Number 2913031) Product Details

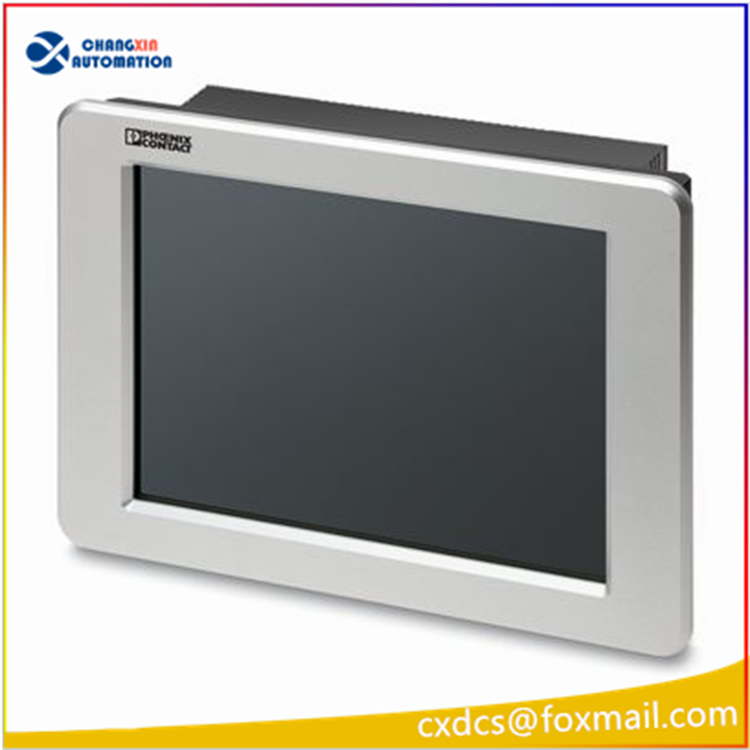

This is a 15-inch fanless industrial panel PC from the Valueline series by Phoenix, designed for stable operation in embedded industrial control scenarios in workshops. The appearance is as follows:

I. Core Hardware Configuration
Computing and Storage
Processor: Intel Atom N270, base frequency 1.6GHz, low power consumption suitable for long-term industrial operation
RAM: 1GB DDR SODIMM
Storage Medium: 2.5-inch SATA industrial solid-state drive (SSD)
Cooling Solution: Passive whole-machine non-fan cooling to prevent dust and foreign objects from entering the equipment, resulting in lower failure rate
Expansion Slots: No additional expansion slots, compact structure
Display and Touch
Screen Specifications: 15-inch TFT industrial screen, resolution 1024×768 (XGA)
Touch Type: Resistive industrial touch screen, can be operated with gloves, suitable for complex factory operation environments
Backlight Type: CCFL backlight, typical brightness 350cd/m², supports brightness adjustment
System Pre-installation
Factory pre-installation of Windows XP Professional OEM SP3 (multi-language version)

Interfaces and Power Supply
Communication Interfaces
Network Ports: 2 Gigabit RJ45 Ethernet (10/100/1000Mbps)
Serial Ports: 1 RS232 (COM1)
USB: 4 USB interfaces
Video Expansion: VGA, DVI-D external display output
Storage Expansion: 2 CompactFlash card slots
Power Supply Parameters
Rated Input: 24V DC, compatible with industrial standard power supply
Voltage Tolerance Range: 19.2~28.8V DC, strong compatibility with voltage fluctuation environments
Built-in battery backup real-time clock, typical battery life 5 years

Environmental Tolerance
Operating Temperature: 0℃ ~ 55℃
Storage Temperature: -40℃ ~ 70℃
Humidity Requirements: 5%~95% without condensation
Impact Resistance: Complies with IEC 60068-2-27 standard, withstands 15g/11ms impact; Front panel protection level IP65, dustproof and splash-proof, suitable for cabinet installation, production line site use

Typical Application Scenarios
Production line human-machine interaction HMI, small equipment embedded control, workshop data collection, light industry automation monitoring stations; Fanless design can avoid fan dust accumulation and malfunction problems in dusty environments.
