I. Basic Information
Brand: RELIANCE Electric (later acquired by Rockwell Rockwell)
Model: S-D4039
System: AutoMax DCS, Shark Series Distributed Remote I/O System
Product Type: Remote I/O Master Station Module (Remote I/O Head Module)
Installation Method: Standard rack plug-in installation, compatible with PSC7000 series control racks, supports hot-swappable replacement
Core Function Positioning
As the communication master control gateway of the local remote I/O rack, through the dedicated high-speed serial bus, it aggregates the on-site data of all AI, AO, DI, and DO cards in this rack and uploads it uniformly to the AutoMax main control processor.
It drives the Shark series of all types of I/O modules downward to achieve synchronous acquisition of multiple measurement points and control command issuance, ensuring mill control and process closed-loop regulation with millisecond-level deterministic data interaction.
It realizes long-distance networking between the main control rack in the control room and the on-site local I/O expansion cabinets, solving the pain points of long wiring distances and strong electromagnetic interference in large factories, and is often used for distributed control expansion of large-scale continuous production lines in papermaking, metallurgy, and power plants.
Hardware Interfaces and Specification Parameters
1. Communication Interfaces
Multiple DB-type serial ports (PORT A/B/C/D): Ryan’s proprietary high-speed serial remote I/O bus (differential RS485 hardware layer), multi-rack cascading networking, transmission distance up to several kilometers, strong anti-electromagnetic interference.

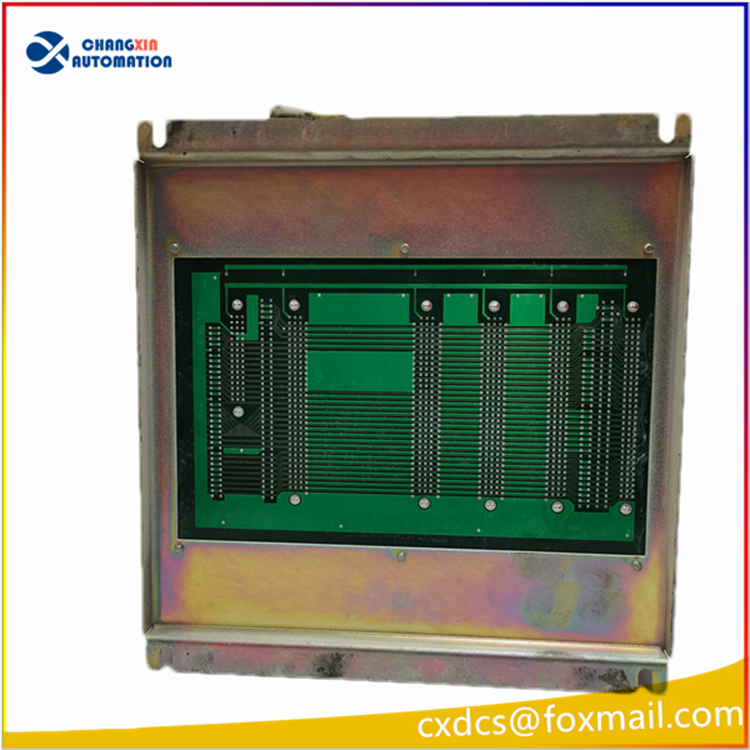

Backplane bus interface: Connects to the Shark backplane inside the rack to achieve high-speed data interaction between I/O cards in the same rack.
2. Electrical Parameters
Power Supply: Rack backplane DC24V power supply, total machine power consumption approximately 8.5W
Electrical Isolation: Communication ports 1500VAC isolation, built-in surge suppression protection
Operating Temperature: 0℃～+60℃; Storage Temperature: -40℃～+85℃
Protection Grade: IP20 (installed in the cabinet), circuit board with three-proof coating, suitable for humid and dusty industrial sites

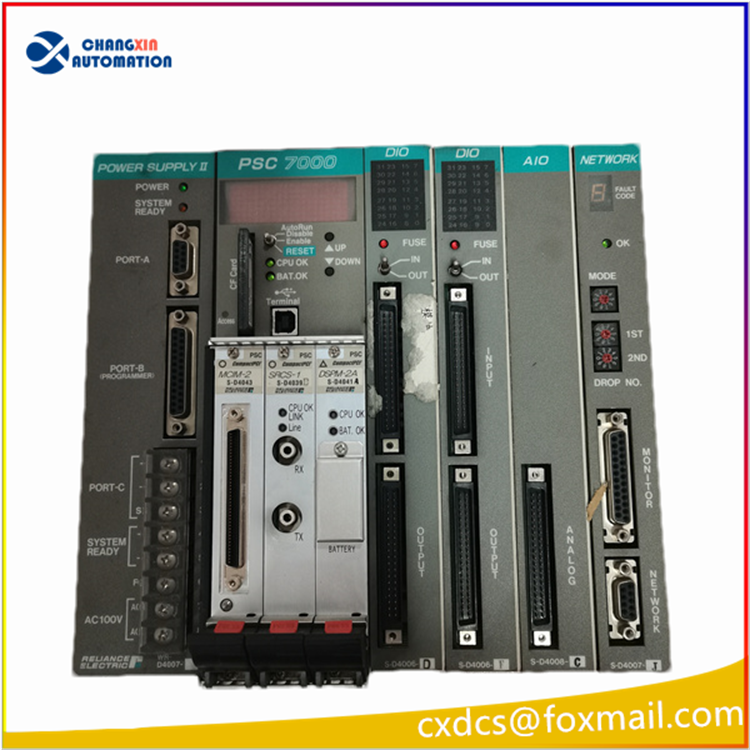

3. Panel Status Indicators
RUN: Module is running normally, green light
FAULT: Hardware failure, bus disconnection, I/O backplane abnormal, red light alarm
LINK: Indicators for each remote bus communication link status, flashing indicates normal data transmission and reception
Core Product Features
Distributed Deterministic Real-time Communication
Hardware-level synchronous data acquisition, precise timing alignment of multiple I/O channels, perfectly adapted to process scenarios with strict timing requirements such as tension control in paper production lines and synchronous transmission of rolling steel, eliminating production faults caused by data jitter.
Complete Hardware Self-Diagnosis
Real-time monitoring of bus short circuits, disconnections, backplane faults, and I/O module disconnections, precise fault location through panel indicator lights + system event alarms, significantly reducing downtime and maintenance time.
Large-capacity I/O Expansion Capability
One S-D4039 can be connected to an entire set of Shark series I/O racks, supporting analog and switch quantity mixed measurement point expansion, and multi-module cascading can achieve large-scale distributed measurement point layout throughout the factory.
Industrial Reinforced Long-life Design
Originally designed for harsh industrial conditions such as heavy industry, papermaking, and power, supports 7×24-hour uninterrupted operation, currently mostly used for replacement of old AutoMax systems and production line automation renovation projects.
Typical Application Scenarios
AutoMax DCS system of large paper mills, remote measurement point collection and synchronous control of paper machine transmission and pulping processes
Remote I/O expansion for multi-motor synchronous speed regulation and tension control systems in metallurgical hot rolling and cold rolling production lines Centralized collection of process parameters for large-scale units in thermal power plants and water treatment facilities, remote control of valve circuits
Replacement of spare parts for the outdated industrial control system of Ryan PSC7000 series and automation renovation project
