Product Description

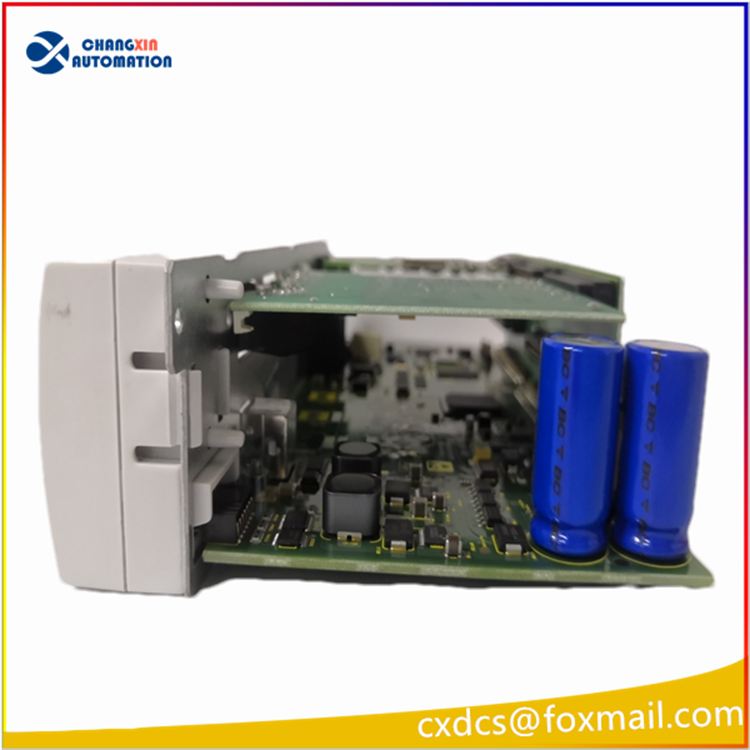

Rexroth R911325453 R911334439 HCS04.2E‑W0350‑N‑04‑NNBN is a single‑axis control section of IndraDrive Cs servo system. It must be combined with HCS02 power modules to form a complete servo drive system. Equipped with Multi‑Ethernet communication interface supporting major industrial Ethernet protocols. Multi‑encoder interface supports most common servo motor encoder types. DA digital‑analog I/O expansion is
integrated. S4 enhanced Safe Motion safety functions including certified STO, SS1, SS2, SOS are implemented. On‑board drive‑based PLC complies with IEC61131‑3 for motion & logic programming. Commissioning via IndraWorks software; optional operator panel and expansion slots available. Compact book‑style design for cabinet mounting with IP20 protection. This model is manufacturer discontinued; only surplus, used‑tested and refurbished spare parts available on marketIndramat U….
Technical Specifications
| Item | Specification |
|---|---|
| Model | CSB02.1B‑ET‑EC‑NN‑S4‑DA‑NN‑FW |
| Product Type | Servo Control Section (control board, power section not included) |
| Compatible Power Unit | HCS02 series power modules |
| Communication | Multi‑Ethernet: Sercos‑III, EtherCAT, Profinet‑IO, EtherNet‑IP |
| Encoder Interface | Multi‑encoder: EnDat, Hiperface, TTL,1Vpp, SSI, Resolver |
| Safety Functions | S4 Safe‑Motion enhanced safety, STO, SS1, SS2, SOS, TÜV certified |
| I/O Configuration | DA expansion: digital inputs/outputs, analog ±10V I/O, probe inputs |
| On‑board PLC | Drive‑integrated PLC IEC61131‑3 compliant |
| Service Interface | RS232 for IndraWorks commissioning, external operator panel support |
| Protection Class | IP20 (cabinet installation only) |
| Cooling | Natural convection |
| Ambient Temp | 0℃ ~ +40℃ |
| Mounting | DIN‑rail / vertical book‑style cabinet mounting |
| Firmware | FW designation, firmware ordered separately, not included with hardware |
| Status | Manufacturer Discontinued, surplus / used‑tested / refurbished only |
Industry Applications
- Machine Tools: CNC machines, grinders, cutting machines; feed axis positioning, spare‑part replacement for legacy machines.
- Packaging & Printing: Packaging lines, printing presses, die‑cutters for high‑speed synchronized motion control.
- Automation Production Lines: Assembly lines, transfer mechanisms, auxiliary axis positioning.
- Textile Machinery: Multi‑axis synchronization and tension closed‑loop control.
- Material Handling: Stacker cranes, conveyor servo positioning systems.
- General Industrial Retrofit: Spare‑part replacement for legacy IndraDrive systems; metallurgy, rubber & plastic machinery.
