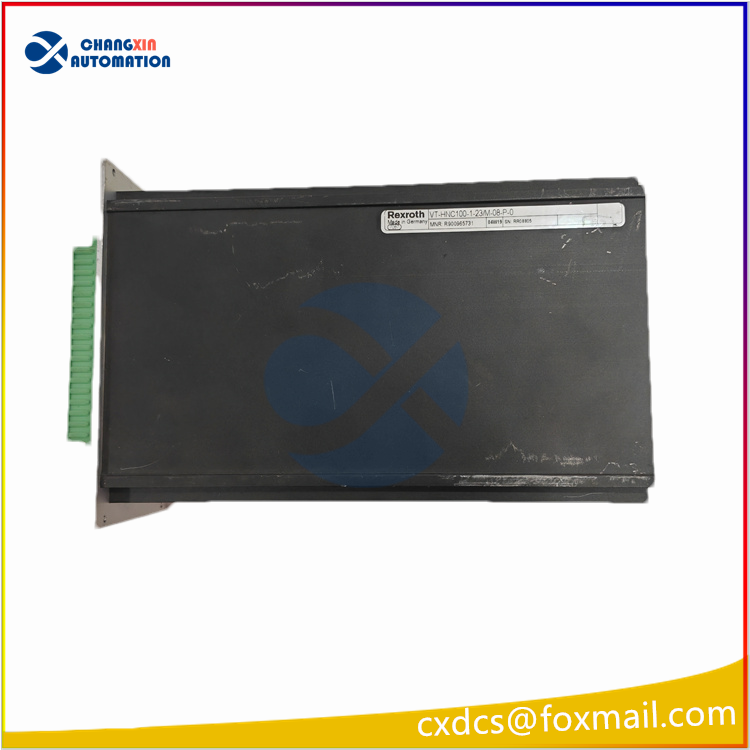

REXROTH VT-HNC100-1-23M-08-P-0 Single-axis Electro-hydraulic Digital Axis Controller

Our services

❐Condition:Brand new     ❐Delivery:1-2 days

❐Warranty:1 Year          ❐Warranty:up to 12 months

❐New + original + in stock + one year warranty

I. Interpretation of Complete Model Segments VT-HNC100-1-23M-08-P-0
1: Single hydraulic axis controller (max. supports 1 cylinder closed-loop)
23: 2X series hardware version (general installation dimensions for 20-29 generations)
M: DIN rail frame installation type (W is the wall-mounted model, both have the same hardware I/O, only the installation method distinguishes them)
08: Standard 8-channel DI / 8-channel DO digital switch quantity
P: PROFIBUS DP fieldbus interface
0: No additional optional sensor evaluation board

Basic positioning
Bosch Rexroth Indramat VT-HNC100 series programmable NC electro-hydraulic closed-loop controller, specifically for driving proportional servo valves, achieving multi-mode closed-loop switching of cylinder position / speed / pressure / force, with its own independent NC motion program, capable of completing process actions without PLC, mainstream controllers for presses, injection molding, metallurgical hydraulic systems.

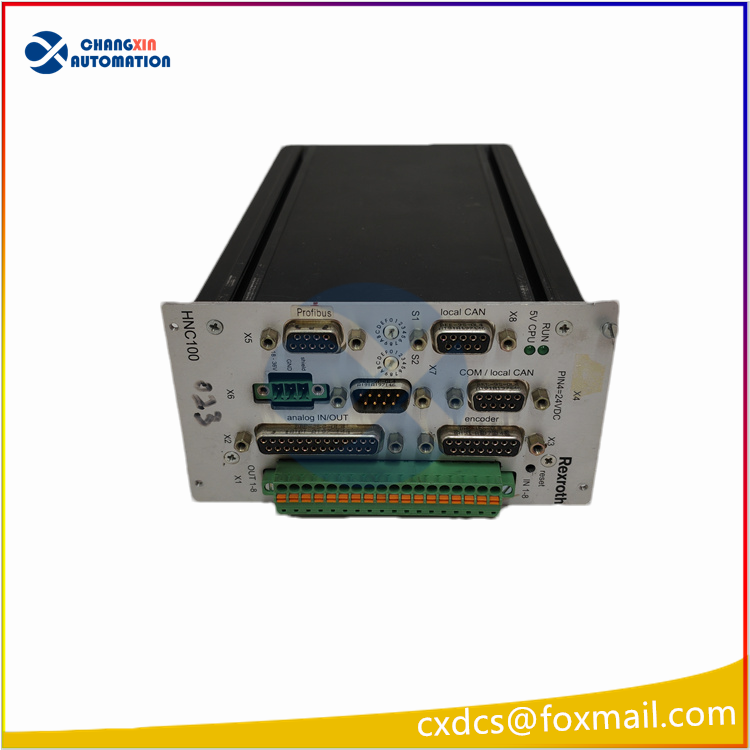

Hardware I/O and interface configuration
1. Analog channels (hydraulic closed-loop dedicated)
4 differential analog inputs: ±10V, 0.1% FS accuracy, connected to pressure sensors, displacement sensors
2 analog outputs: ±10V / 4–20mA, drive electro-hydraulic proportional valves, maximum load 500Ω
Encoder interface (DB9): 5V incremental optical grating / SSI absolute displacement feedback, up to 250kHz counting frequency
2. Digital I/O (08 specification)
8 DI 24VDC inputs: stop, emergency stop, start, mode selection
8 DO transistors outputs: solenoid valves, indicator lights, equipment readiness signals
3. Communication interfaces
PROFIBUS DP (P segment defined): connect Siemens / mainstream PLC, exchange position, pressure, fault words periodically
CAN local bus: master-slave synchronization between multiple HNC100s
RS232 debugging port: download program, parameter calibration, fault diagnosis for PC software WIN-PED
Dual network Ethernet ports: program upload, upper-level monitoring
4. Power supply and mechanics
Power supply: 24VDC (18~36VDC wide voltage), total machine power consumption ≤ 30W
Installation: standard TH35 DIN rail (M shell-specific)
Environment: -10℃ ~ +60℃, used in IP20 cabinet, CE industrial anti-interference certification

Core control functions
Free switching of multiple closed-loop modes
Position closed-loop, pressure / force closed-loop, position – pressure compound control, stamping hold pressure curve control
NC motion programming (WIN-PED software)
Standard G codes: G01 point position, G30 oscillating stamping, G63 mode switching, M subroutines, cam curve interpolation; supports soft limit, zero return, emergency stop safety logic
Single-axis synchronization / following
Can be used as a slave axis to follow external master axis instructions, suitable for synchronous press, bending conditions
Full-channel diagnosis
Valve break, sensor short circuit, encoder failure, local indicator light + bus alarm upload to PLC
Safety functions
Hardware emergency stop cut-off valve output, software stroke protection, pressure overload soft shutdown

 Supporting tools and accessories
Debugging software: WIN-PED 7 (parameter configuration, NC programming, pressure / position curve monitoring oscilloscope)
Optional accessories: BB-3 handheld operation box, BF-1 local control panel, Profibus communication cable, displacement sensor, servo proportional valve
Series differentiation:
VT-HNC100-1-23W-08-P-0: same function wall-mounted shell
VT-HNC100-2-XX: dual-axis controller, 16 DI/DO points VT-HNC100-1-23M-08-C-0: CANopen Bus Version (C instead of P)

Typical Application Scenarios
Hydraulic press, powder metallurgy press, bending machine, injection molding injection shaft
Aluminum profile extrusion, steel straightening, tire vulcanization hydraulic closed-loop
Test bench force control loading, material fatigue testing equipment
Engineering machinery, metallurgical complete equipment electro-hydraulic precise positioning control
