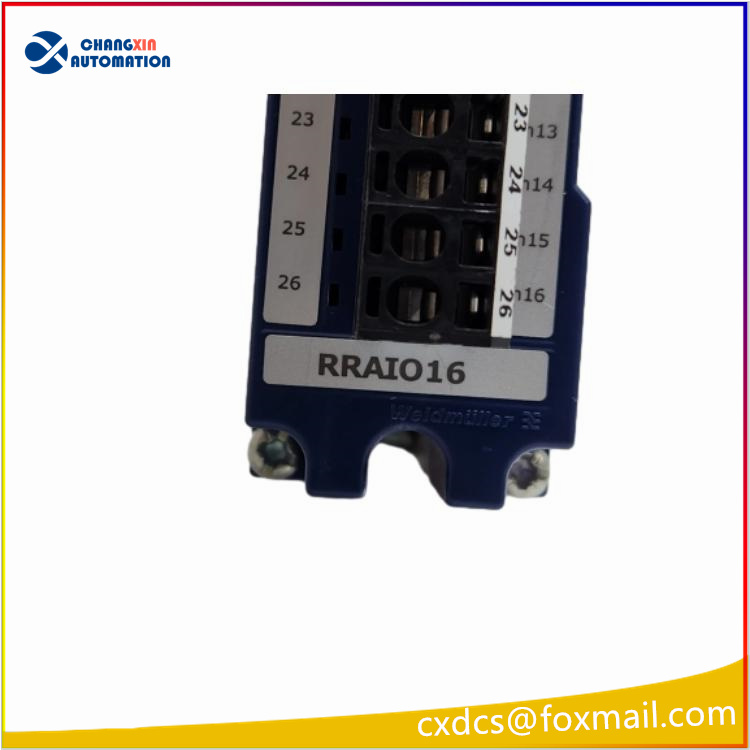

Model: RRAIO16 Brand: Rolls‑Royce Marine Product Name: Analog Input‑Output Alarm I/O Module
RRAIO16 is a high‑density integrated analog I/O alarm module co‑developed by Rolls‑Royce Marine and Weidmüller, DIN‑rail mounting, dedicated for marine propulsion and offshore power‑generation control systems. It features 16 configurable channels for analog, digital and pulse‑frequency signal acquisition, together with analog output control capability. Built‑in galvanic isolation provides good immunity against vibration, salt‑fog and wide temperature variation. It acquires field sensor signals such as temperature, pressure, liquid level and flow, and transmits data to vessel management system and central alarm monitoring unit
Technical Specifications
| Item | Specifications |
|---|---|
| Model | RRAIO16 |
| Product Type | Analog Input‑Output Alarm I/O Module |

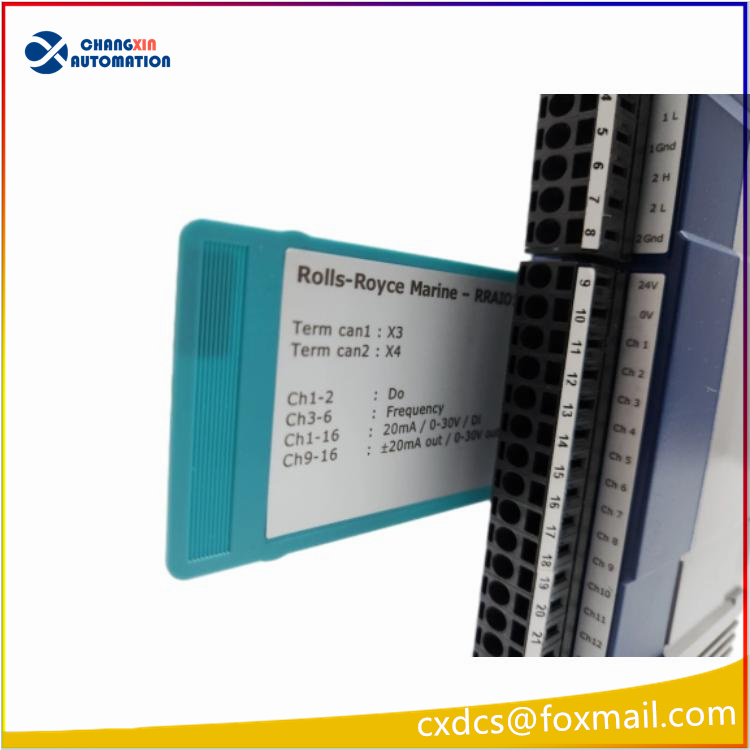

| Channel Layout | 16 configurable input channels; 8 analog output channels; 4 dedicated frequency pulse input channels (CH3‑CH6) |
| Signal Types | AI:0‑20mA,0‑30V,DI digital input; AO:±20mA,0‑30V; frequency pulse input |
| Power Supply | 12‑28VDC, typical 24VDC |
| Communication | Internal system bus, work with RRWRC01 main controller board |
| Isolation | Galvanic isolation for field‑side signals, anti‑noise design |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Environmental Rating | Marine grade, suitable for vibration, salt‑fog, non‑condensing humidity |
| Mounting | DIN rail mounting |
| Product Status | OEM obsolete, spare‑part supply (new surplus / used / tested refurbished) |
| Remark | Only for Rolls‑Royce Marine system, incompatible with standard third‑party PLC |
Product Application
- Vessel propulsion control system: signal acquisition and alarm output for main & auxiliary engine temperature, pressure and tank level sensors.
- Off‑shore platform & marine generator‑set monitoring; analog‑value acquisition and actuator analog control.
- Vessel central alarm monitoring system, acts as field interface unit between field instruments and upper‑level management system.
- Spare‑part replacement, maintenance & retrofit for legacy Rolls‑Royce marine automation systems.
Main Series Part Numbers
- RRDIO15 Digital Input‑Output Module
- RRVIO8 Versatile Configurable I/O Module
- RRWRC01 Main Control & Communication Interface Module
- RRADI16 Analog Input Module
- RRDO08 Digital Output Module
