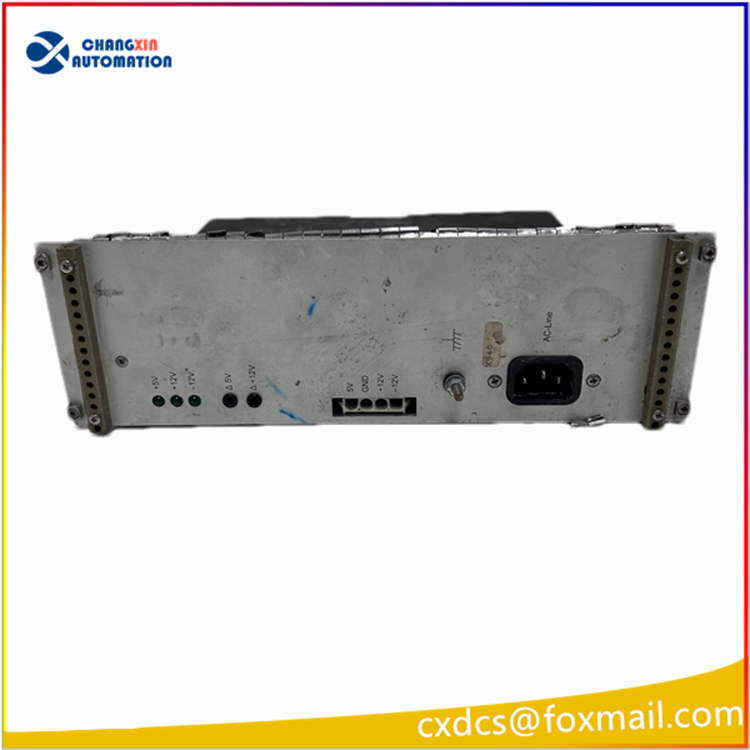

SCHROFF (nVent) MPS015 Industrial VME Bus Switching Power Supply

I. Core Electrical Parameters
Input Specifications
AC: 90~264VAC (wide-range universal power grid)
DC compatibility: 130~350VDC
Built-in active PFC power factor correction
Three standard outputs (rated total power of 150W)
Table
Output Voltage Rated Current Power +5V 20A 100W
+12V 4A 48W
-12V 3A 36W
Supplement: The combined upper limit of +12V and -12V is 60W. The ambient temperature during full load operation is 0~40℃.
Peak power: The maximum short-time power can reach 224W.

Mechanical Dimensions
Frame specification: 6U height, 8HP width
Depth: 171.93mm
Installation: 19-inch standard chassis hot-swappable modular
III. Protection and Environment
Protection mechanism: Overvoltage OVP, Overcurrent OCP, Overheat OTP automatic shutdown protection
Operating temperature: Full power operation range is 0℃~+40℃; in high-temperature environment, load reduction is required for use
Certification: CE, UL, RoHS industrial safety standards

Application Scenarios
VME bus industrial control system, military measurement and control chassis
Industrial automation testing equipment, instruments and meters
Railway transportation, communication embedded 19-inch rack equipment
Medical precision control chassis power supply

Accessories and Supply
Same series models: MPS022 (greater power 224W level)
Market status: Factory mass production spare parts, market has new original, disassembled second-hand, maintenance and repair services
Interfaces: Standard VME backplane power supply pins + side AC input socket
