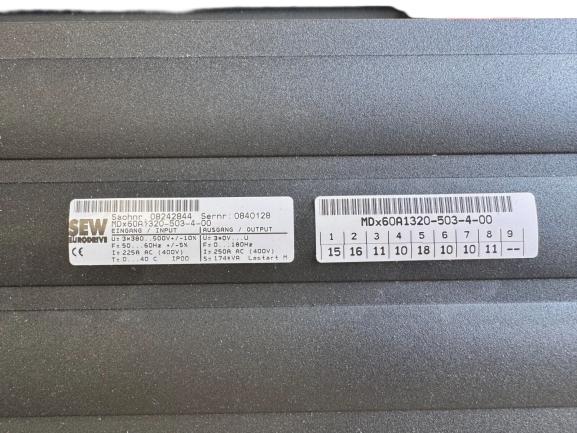

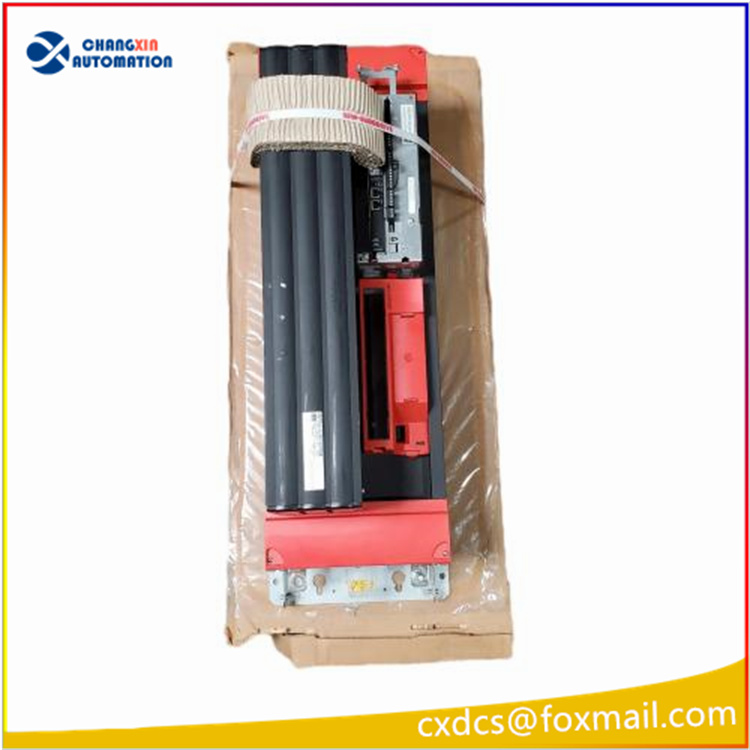

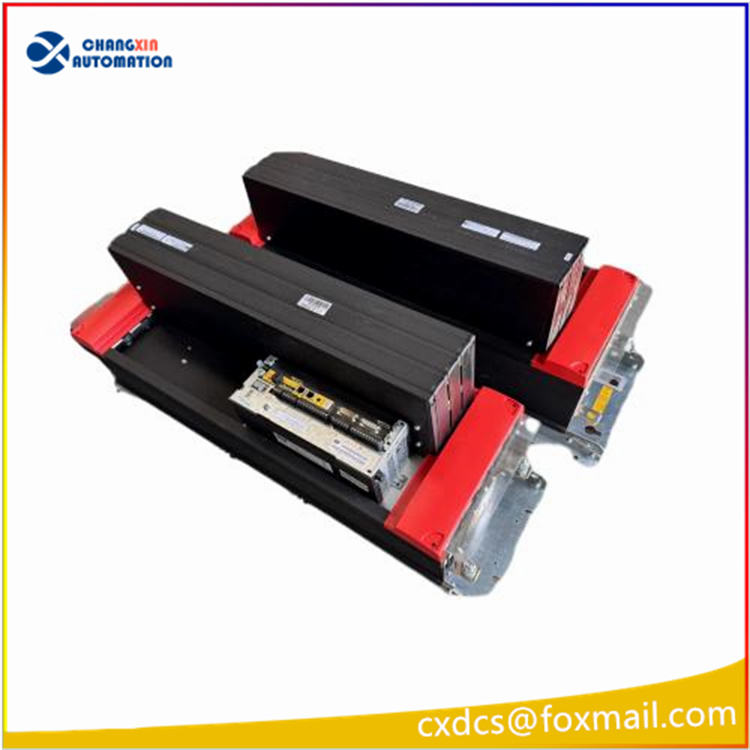

I. Model Analysis MDX60A1320-503-4-00
Brand: SEW-EURODRIVE (Germany)
Series: MOVIDRIVE MDX60A Servo Drives (Single-axis basic type, without built-in operation panel)
1320: Power specification, compatible with 132kW asynchronous / servo motors
503: Software firmware version V5.03
4: Power supply specification Three-phase 380～500V AC
00: Standard factory configuration, no special customization, no safety options

Core Electrical Parameters
Input specification
Three-phase AC 380～500V, 50/60Hz
Rated output
Rated output current: 250A
Applicable motor power: 132kW
Overload capacity: 150% overload for 60s, 200% short-term peak current limiting
Control mode
V/F open loop, VFC vector, CFC servo closed loop, servo positioning control, supports asynchronous motor + synchronous servo motor drive
PWM carrier frequency: 4/8/12/16kHz adjustable
Cooling method: Forced air cooling, cabinet installation IP20
Operating environment: -10℃～+45℃ (reduced capacity can be 55℃)

Hardware Interfaces and Expansion Capability
Standard: SBus system bus, digital input/output, analog input/output interface, encoder feedback slot
Optional expansion card (single slot):
DEH11B/DEH21B: TTL, HIPERFACE encoder acquisition
DER11B: Rotary transformer interface
DFP21B: PROFIBUS-DP communication
DFE series: Profinet, EtherNet/IP etc. industrial Ethernet
Standard built-in braking transistors, requires external braking resistor to achieve four-quadrant energy braking

Dimensions and Weight
Size: Width 315mm × Height 455mm × Depth 294mm
Net weight: Approximately 26kg

Typical Application Scenarios
Port crane equipment, metallurgical roller track, ship machinery, main drive of large production lines, hydraulic winch replacement with frequency converter servo system, high-precision multi-point synchronous transmission scenarios, often used with SEW asynchronous servo motors.
