SHINKAWA VM-5T-11010-000-000-111-0 Dual-channel Axial Displacement (Thrust) Monitoring Module

SHINKAWA VM-5T-11010-000-000-111-0 Dual-channel Axial Displacement (Thrust) Monitoring Module

I. Basic Material Information

Brand: SHINKAWA Japanese Shinkawa Electric Machinery
Model: VM-5T-11010-000-000-111-0
Product Series: VM-5 Series TSI Turbine Safety Monitoring System (Compliant with API 670 Standard)
Equipment Type: Dual-channel Axial Thrust Displacement Monitoring Card, used for monitoring the axial movement of turbine and compressor rotor shafts to prevent thrust pads from burning out and causing runaway of the unit

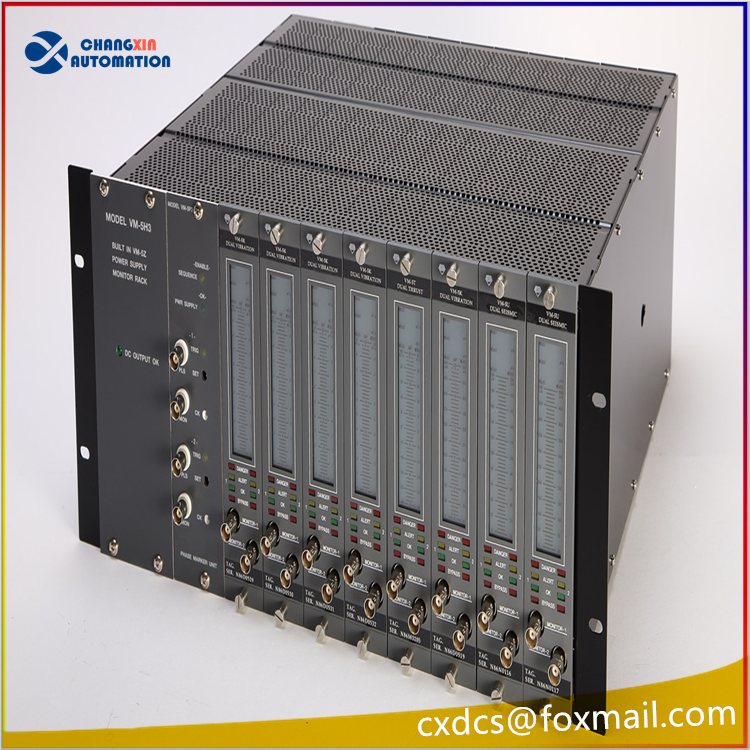

Installation Method: VM-5 Series 8-slot / 10-slot standard chassis backplane plug-in installation
Original Manual: Official English Manual “VM-5T Instruction Manual”, Manual Number: 29602E4.7, The original piece only comes with a simple safety instruction page, no paper complete manual

 Model Segmentation Analysis (VM-5T-11010-000-000-111-0)
VM-5T: Dual-channel Axial Thrust Monitor Module (Dual Thrust Monitor), compatible with VK series eddy current probe sensors
11010: Measurement Range Configuration: ±1.0mm (-1.0mm ~ +1.0mm)
First Segment 000: No explosion-proof, non-bibency type, normal working conditions
Second Segment 000: Standard 0~10VDC recorder analog output

Relay Alarm Configuration: High pre-alarm + High Hazard Shutdown + Sensor Fault Three-channel Relay Passive Contact Output
Last 0: Standard General Hardware Version, No Special Customization
III. Core Electrical and Technical Parameters
Signal Input: 2 channels of eddy current preamplifier signal input, compatible with SHINKAWA VK series axial displacement probes
Measurement Range: -1.0mm ~ +1.0mm, Measurement Accuracy: Full-scale ±0.5% (25℃ Normal Temperature)
Analog Transmitter Output: 0~10VDC Isolated Output, Can be connected to DCS System for Real-time Collection of Axial Displacement Values
Alarm Relay: 3 channels of C-type Passive Dry Contacts, Contact Capacity 250VAC/5A; Supports Warning, Hazard Shutdown, Sensor Fault Triple Alarm Interlock
Self-check Function: Can Real-time Detect Probe Breakage, Short Circuit, Preamplifier Fault, Fault Trigger OK Fault Alarm
Power Supply: Powered by VM-5 Backplane DC24V
Operating Temperature: 0℃ ~ +65℃, Protection IP20 (Installed in the Cabinet)
Communication: Supports RS485 Modbus RTU, Can Configure Multiple Card Networking to Upload Monitoring Data to the Upper TSI Management System

Core Functions
Dual-channel Redundant Axial Displacement Monitoring
Two independent collections of rotor axial displacement values, mutual verification, avoiding false protection caused by single-channel failure, real-time monitoring of thrust bearing wear, axial force imbalance faults.
Multi-level Safety Interlock Protection
Pre-alarm: Axial displacement approaching the warning value, upper-level sound and light alarm reminder for operation and maintenance inspection
Hazard Shutdown Interlock: Over-limit displacement triggers emergency shutdown of the unit, protecting turbine thrust pads and rotor from damage
Sensor Breakline Fault Alarm: Abnormal probe line directly alarms, eliminating the risk of protection failure
Data Recording and Traceability
Analog signal connection to DCS for historical trend storage, can analyze the axial force change laws during unit start-stop, load variation processes.
Peak Holding, Alarm First Out Memory Function
Lock in the maximum axial displacement peak, record the first triggered alarm fault point, facilitating post-fault traceability analysis.

Typical Application Scenarios
Power Plant, Gas Turbine, Turbine Generator Set TSI Safety Monitoring System
Axial Displacement Protection for Large Reciprocating, Centrifugal Process Compressors
Refinery, Chemical, Self-owned Power Plant Rotating Machinery Unit Safety Interlock Protection
