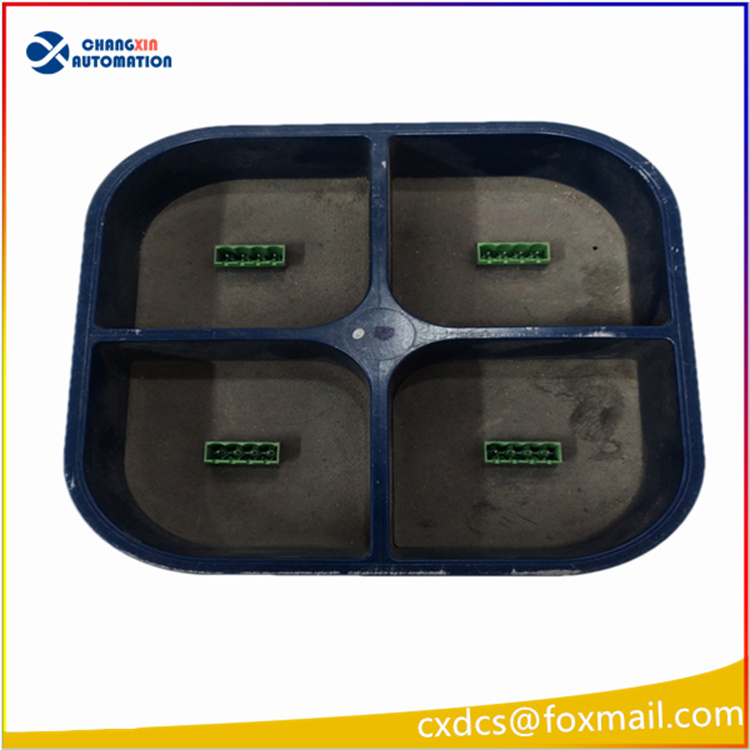

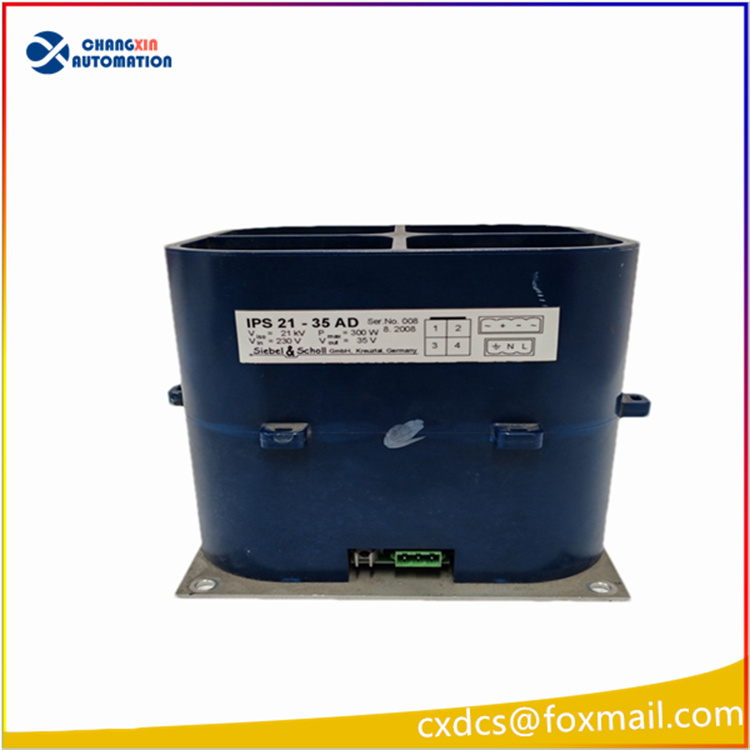

Siebel & Scholl IPS21-35 AD Rack-mounted Intelligent Power Drive / Position Control Board Card

Product Description
Rack-mounted intelligent power drive / positioning control board card, ABB transmission accessory, Siebel&Scholl IPS21 series module, slot-type installation, integrates power drive, signal conditioning, and power heat dissipation assembly. It is mainly used in large AC/DC transmission systems’ positioning control circuits.
Key technical parameters
Hardware form: European-style slot with heat dissipation fins, front pull handle
Power supply form: System backplane power supply
Structure: Integrated power circuit, control signal circuit, power heat sink
Installation method: Rack slot direct insertion installation
Operating temperature: 0℃～+60℃, cabinet installation IP20

Compatible systems:

Large industrial AC/DC transmission, synchronous motor positioning control system Product performance
Realize high-precision position closed-loop drive for the motor, integrate hardware protection for overcurrent, overtemperature and short circuit; support position command parsing and power output drive; anti-interference design, suitable for heavy-load continuous operation conditions. Application fields
Metallurgical rolling mill transmission, paper production line drive, heavy machinery positioning system, large-scale DC speed regulation device, shipbuilding industry transmission system.
