Siemens 6DD2920-0AJ0460 692.9011.00 High-speed Processor Module

I. Model Basic Information
Brand: SIEMENS (Siemens)
Platform: SIMADYN D High-performance Real-time Control System (designed specifically for high-power frequency conversion, excitation, and turbine power regulation DEH, and belongs to the same category of high-power power control as your previous ABB AC800PEC and VME gas turbine control systems)
Official Order Model: 6DD2920-0AJ0, with suffix 460 indicating the hardware firmware version
Internal Material Number: 692.9011.00 (original factory internal storage, spare parts traceability code, procurement requires simultaneous verification)
Hardware Type: PM6 64-bit real-time CPU main control processor module, which is the core computing unit of the SIMADYN D rack

Model Code Interpretation
6DD: Prefix for Siemens power transmission, high-power real-time control system materials
2920: Hardware category code of the PM6 series processor
0AJ0: Hardware motherboard configuration version
460: Firmware program version, function authorization package
692.9011.00: Siemens internal spare part material number, used for original factory inventory, customs declaration, and maintenance spare parts declaration

Core Hardware Specifications
1. Computing and Real-time Performance
64-bit industrial RISC real-time processor, minimum control cycle up to 100μs (0.1 milliseconds), meeting the high-precision closed-loop control requirements for thyristor excitation, LCI frequency conversion, and turbine regulating valve high-precision closed-loop control
Onboard large-capacity program memory + data cache, supporting complex vector control, excitation PID, valve position adjustment, fault recording algorithms
Supports multi-CPU parallel collaborative computing, multiple PM6 modules in the same rack can achieve high-speed data interaction through MM4 memory exchange module
2. Hardware Interface Configuration
Backplane C bus: High-speed bus inside the SIMADYN D rack, mounting I/O boards, communication boards, trigger boards

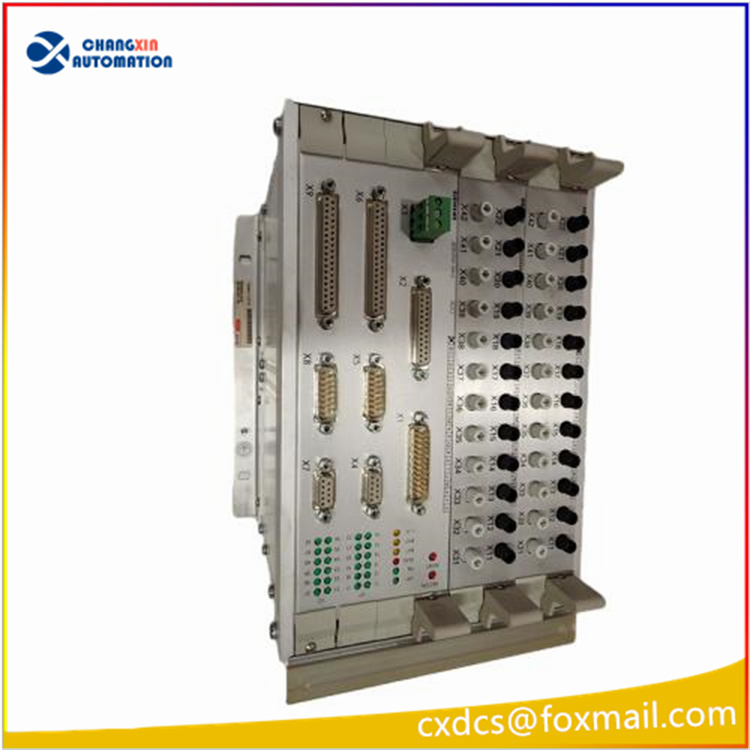

Front panel multi-channel DB interfaces:
RS232 debugging serial port: used for loading STRUC software programs and online parameter debugging
Synchronous parallel interface, optical communication interface: can achieve high-speed data interconnection between multiple cabinets and multiple units
Multiple status LED indicators: ready, bus failure, program error, watchdog alarm, communication anomaly
Complementary external storage sub-module: can be inserted with memory sub-cards to achieve power-off program and parameter preservation
3. Electrical Environmental Parameters
Power Supply: Rack backplane 24VDC direct current power supply
Operating Temperature: 0℃ ~ +60℃, IP20 cabinet installation, passing industrial EMC strong electromagnetic compatibility certification, suitable for power excitation, high-power frequency conversion strong interference environment
Installation: Standard SIMADYN D rack plug-and-play installation, supports hot-swappable maintenance without downtime
Overall Weight: Approximately 1.1kg

Core Functions
High-speed closed-loop main control for high-power transmission systems
Mainly used for synchronous generator excitation regulation, LCI load phase converter control, and can be used as a similar application scenario with the previously queried ABB GFD563A102 excitation controller, achieving precise regulation of voltage, reactive power, and current.
DEH digital electric regulation control for turbines / gas turbines
Combined with I/O acquisition module, receiving speed, load instructions, output valve control signals to drive Novotron ND32 servo driver, precisely regulating turbine main regulating valve and fuel valve opening, stabilizing the unit speed and power generation load.
Multi-device interlock and fault safety protection
Built-in over-speed, over-current, loss of excitation, vibration limit protection logic, which can be linked with VM600 vibration monitoring, flame detection EG1033 module, triggering ETS disconnection, fuel cut safety interlock.
Multi-protocol data communication interaction
Support Profibus, Modbus, and fiber-optic real-time links. It can be connected to the ABB AC800M (PM866A) DCS and Foxboro H90 upper-level monitoring server for parameter upload and remote operation.

Typical Application Scenarios
Excitation control system for thermal power/water power generating units, large-power LCI variable frequency drive control cabinet
Multi-axis synchronous transmission system for metallurgical rolling mills, mine hoist
DEH digital electric control system for steam turbine units (with Novotron servo control valve drive)
