I. Basic Model Information

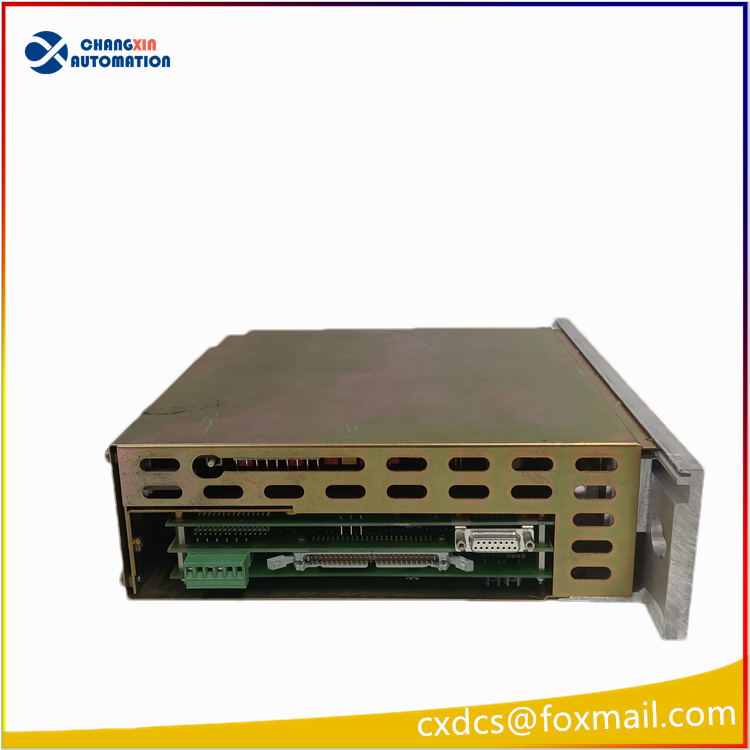

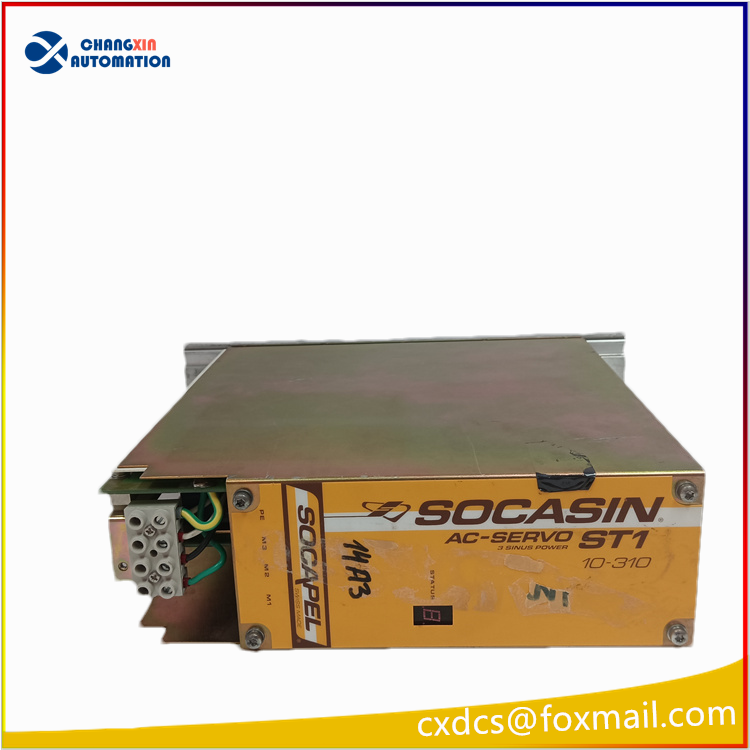

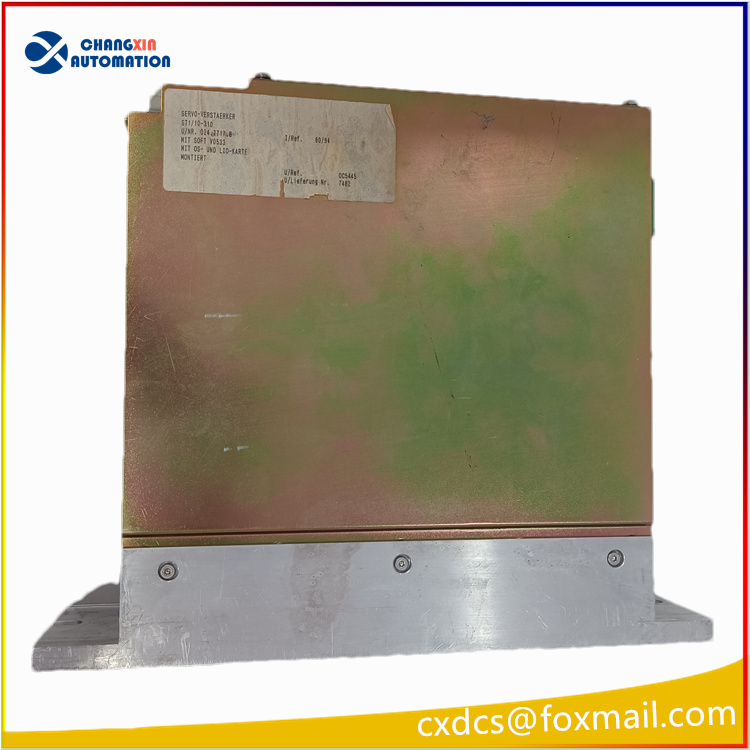

Full Name: Socapel SOCASIN AC-SERVO ST1 10-310, Abbreviation: ST110-310 / ST1-10-310
Brand: Socapel (a long-established French motion control manufacturer, SOCASIN ST1 servo series)
Product Type: Brushless AC servo amplifier / Servo driver
Series Position: ST1 standard general-purpose type, suitable for machine tools, printing, textile, and automated production lines
Model Naming Explanation: ST1-10-310
ST1: SOCASIN ST1 servo drive series
10: Power specification code (600W power level)
310: Hardware version / current specification suffix
Core Electrical Parameters
Rated Output Power: 600W
Rated Output Current: 56A
DC Bus Input: 48VDC ±10%
Switching Frequency: 9.8kHz
Cooling Method: Natural air cooling of the entire machine, cabinet installation
Operating Temperature: 0℃ ~ +50℃, Storage: -20℃ ~ +70℃
Protection Grade: IP20 (installed in the control cabinet)
Three Major Control Modes (fully supported)
Position Mode: Pulse / Bus positioning, high-precision point position movement (cutting, positioning table)
Speed Mode: Continuous constant speed control (roll material, conveyor line)
Torque Mode: Tension closed-loop control (printing, film winding and unwinding)
Feedback and Communication
Encoder Compatibility
Incremental encoder, synchronous absolute value encoder, supports differential signal
Communication Interface
Standard RS485 Modbus RTU, optional CANopen expansion card; supports upper computer parameter reading and writing, status monitoring
Hardware Protection Functions
Overcurrent, overvoltage, undervoltage protection
Motor overload, overheating shutdown protection
Encoder break wire, short circuit fault alarm
Output short circuit, grounding fault lockout
Comparison of Specifications of the Same Series (ST1 Series) Table
Model Power Bus Voltage Rated Current
ST1-25-310 2.5kW 48VDC 82A ST1-10-310(ST110-310) 600W 48VDC 56A
ST1-80-130 8kW High-voltage direct current High current model
