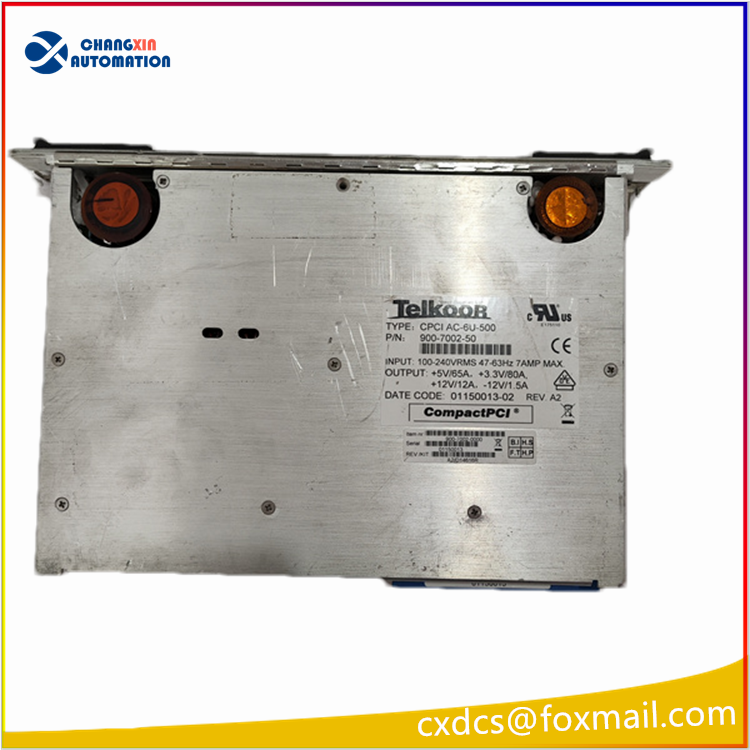

TEIKOOR (CCC) PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Module

I. Basic Information
Brand: TeIKOOR (Original CCC, Compressor Controls Corporation, a professional manufacturer of compressor control systems)
Main Model: PSMU-350-3
Specification Model: CPCIAC-6U-500
Material PN: 900-7002-10
Product Type: 6U CompactPCI (CPCI) industrial rack-mounted AC-DC redundant power module
Compatible System: CCC VANGUARD compressor anti-surge / performance control system, CPCI bus industrial computer rack, providing centralized power supply for VME/CPCI mainboards, acquisition cards, communication cards

Electrical Core Parameters
1. Input Specifications
AC Input: 85～264VAC wide voltage, 50/60Hz, with active PFC power factor correction
DC Input Compatibility: 120～370VDC, supports dual-input redundancy power supply for AC/DC
Maximum Input Current: 7A
2. Multiple DC Outputs (rated total power 500W)
+3.3V / Maximum 80A
+5V / Maximum 29A
+12V / Maximum 16A
-12V / Maximum 1.5A
Conversion Efficiency: ≥90%, low ripple noise output, suitable for high-precision industrial board card power supply
3. Hardware Specifications
Standard Size: 6U CPCI specification, supports CPCI 2.0/3.0 bus, supports rack hot-swapping
Heat Dissipation: Built-in temperature-controlled fan forced air cooling, with over-temperature load shedding protection
Protection: Built-in EMI filtering, lightning surge suppression, meets industrial EMC anti-interference standards
Operating Temperature: 0℃～+60℃; Storage Temperature: -40℃～+85℃, humidity 5%～95% RH without condensation
Certification: UL, CE industrial safety certification, IP20 cabinet installation

Panel Indicator Function
PWR (Power Green Light): Always on = Normal input power supply; Off = Phase missing, undervoltage, no input
FAULT (Fault Alarm Yellow Light): Overvoltage, overcurrent, short circuit, overtemperature, fan abnormality when lit for alarm
Voltage status indicator lights for each output, quickly locating which load is abnormal

Core Function and Features
Redundant Parallel Operation: Multiple power supplies of the same model can be paralleled and redundantly powered within the rack, a single power supply failure does not interrupt the operation of the control system, ensuring the key process of the compressor does not stop
Full Loop Protection: Overvoltage OVP, overcurrent OCP, short circuit SCP, overtemperature OTP, input undervoltage protection, fault automatically locked to prevent secondary damage to the rear board cards
Hot Swap without Shutdown: Supports CPCI live insertion and removal, maintenance replacement does not require compressor control system shutdown
Low Noise Pure Power Supply: Multi-level filtering design, suppresses grid harmonics, inverter interference, avoids data jumps and communication abnormalities in the main control and acquisition cards
Industrial Reinforced Metal Shell, anti-vibration, dustproof, suitable for harsh working conditions of oil and gas, chemical, power plant compressors on-site

Typical Application Scenarios
CCC VANGUARD anti-surge control system for long-distance pipeline compressor stations (most mainstream original power supply)
Large centrifugal compressor, screw compressor process control system for coal chemical, refining plants CPCI rack power supply
DCS / anti-surge control system for fire power, steel blast furnace blower, air compressor units
Military, rail transportation CPCI embedded measurement and control, semi-physical simulation test platform centralized power supply
