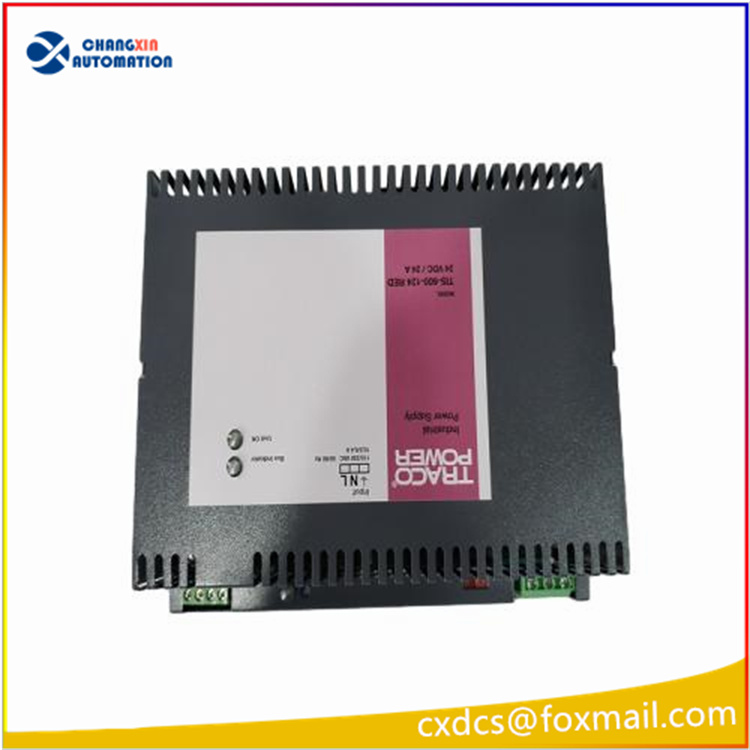

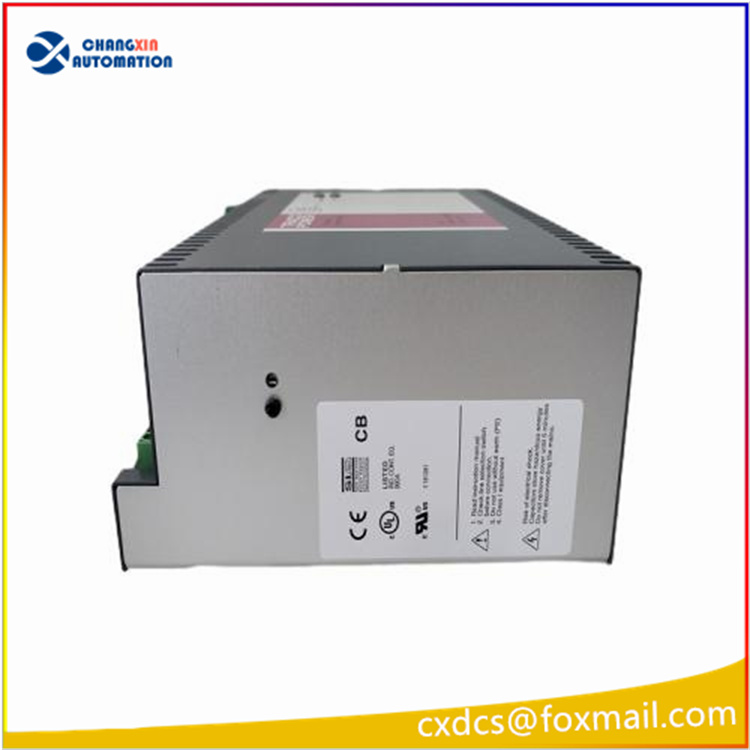

The Traco TIS600-124RED is an industrial-grade AC/DC rail power supply produced by Traco Power Company. Its main parameters and features are as follows:
I. Core Parameters Input voltage
Input voltage range: 93–132 VAC or 187–264 VAC (Supports wide voltage input, adaptable to different power grid environments). Output voltage
DC output: 24 VDC (stable output, suitable for powering industrial equipment).
Output current
Maximum output current: 24 A (satisfies the demand of high-power loads).
Output power
Rated power: 576 W (high efficiency, suitable for industrial automation scenarios). Efficiency
Conversion efficiency: 90% (Energy-saving design, reducing energy consumption).
Physical properties Size
Length × Width × Height: 243.1 mm × 82.6 mm × 177.3 mm (standard DIN rail installation size, facilitating integration into the control cabinet).
Installation method
DIN rail installation (compatible with industrial standard rails, easy to install). Protection level
IP20 (dust-proof design, suitable for indoor industrial environments).
III. Functional Features
Adjustable output
Supports fine-tuning of output voltage (to meet the voltage requirements of different devices).
Load balancing
Supports parallel operation of multiple power supplies to achieve load balance (improving system reliability). Operating temperature range
-25°C to +70°C (wide temperature design, suitable for harsh industrial environments).
Protection functions
Overload protection, short circuit protection, overvoltage protection (ensuring safe operation of the equipment).
Application scenario
Industrial Automation
Supply power to PLCs, sensors, actuators and other equipment.
Process control
Suitable for control systems in industries such as chemical engineering, pharmaceuticals, and food processing.
Mechanical manufacturing
Provide stable power to CNC machines, robots, etc.
Dangerous locations
Complies with Class I, Div. 2 certification and can be used in potentially explosive environments (such as in the petrochemical industry)
