Product Description

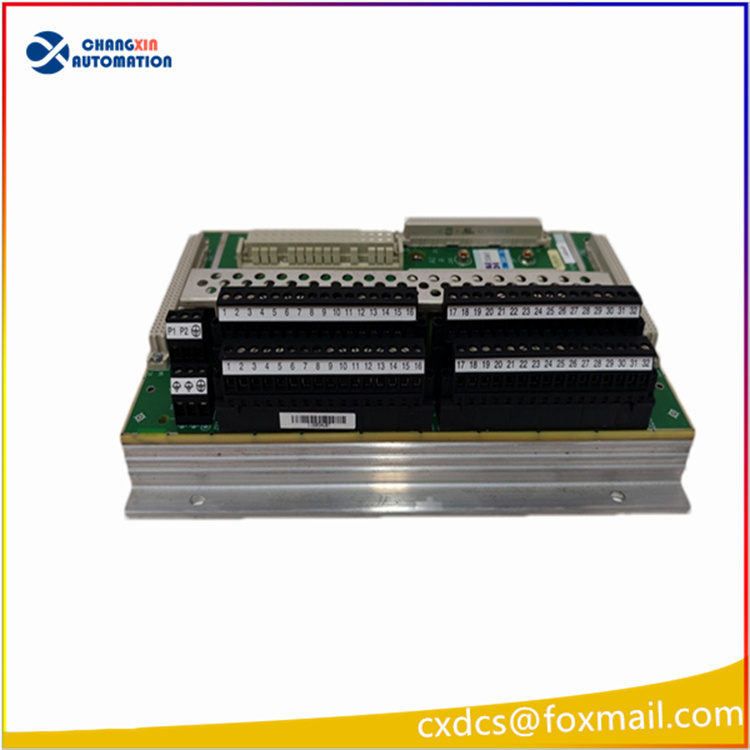

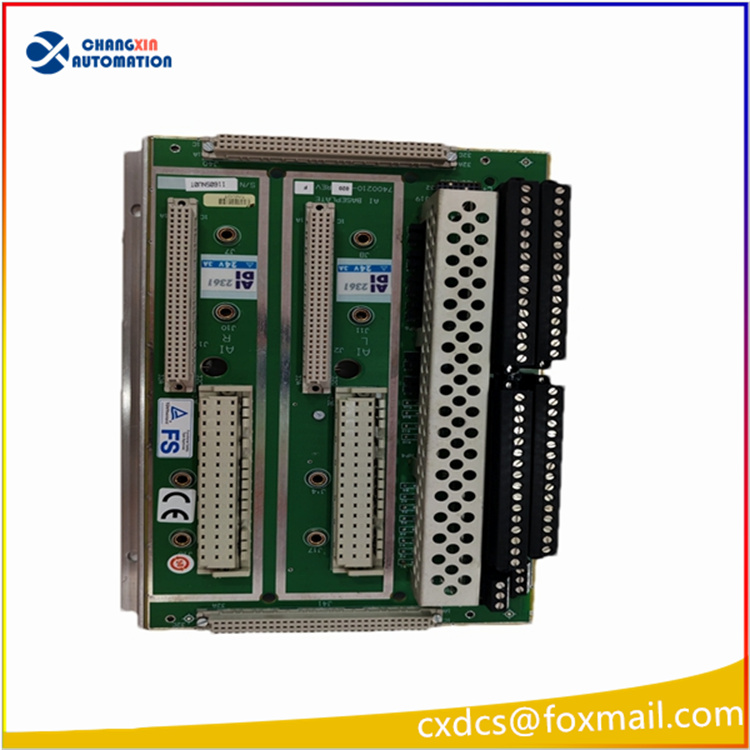

AI2361 is the I/O baseplate kit (Baseplate Kit 2361) for the Tricon Trident system, equipped with the plug-in module 3361 (analog/digital mixed input TriPak card); it is a component of the TMR triple-redundant SIS safety instrumented system, used for cabinet and rack installation, providing terminal wiring, backplane bus interconnection, mechanical error-proof installation base, carrying the 3361 input module, and enabling on-site signal access and system bus communication.
The market commonly refers to the entire set of AI2361 as = AI2361 baseplate + 3361 module
Key technical parameters
Compatible system: TRICONEX Trident safety control system
Matching module: 3361 Analog/Digital Input TriPak
Structural form: Rack slot-type I/O baseplate kit, with front terminal connectors
Installation specifications: Standard Trident cabinet slot installation, mechanical key-controlled error-proof insertion
System architecture: Supports TMR triple-module redundancy
Functionality: Supports online hot plugging of modules, without shutdown
Kit components: 2361 baseplate, interconnection components, terminal cover plate
Operating temperature range: -20 ℃ ~ +60 ℃
Protection level: IP20 (installed in the control cabinet)
Power supply:
Unified power supply from the Trident cabinet backplane
Bus interface: Trident internal parallel I/O backplane bus Product performance
Realize the electrical connection between the on-site signal terminals and the 3361 module, isolating the external lines;
Hardware mechanical anti-error mechanism, preventing incorrect insertion of different types of I/O modules;
Support online replacement of faulty modules without stopping the device operation, improving the continuous operation rate of the device;
Equipped with TMR triple voting mechanism, a single-channel hardware failure does not cause system failure;
Compatible with mixed analog and switch quantity acquisition circuit wiring. Application fields
Petroleum refining, natural gas pipelines, coal chemical industry, power plant ESD emergency shutdown system, F&G fire gas monitoring system; high-risk process safety instrument system SIS, pressure, level, temperature, switch signal safety acquisition.
Same series baseplate models (Trident I/O Baseplate)
2301: DI digital input baseplate
2351: AI analog input baseplate (matches 3351)
2352: RTD/TC dedicated analog input baseplate
2361 (AI2361): Mixed analog/digital input baseplate (matches 3361)
2481: AO analog output baseplate
2401: DO digital output baseplate
Important distinction: 23XX = I/O baseplate; 33XX/34XX = plug-in I/O modules, both must be paired as a set and cannot be mixed separately.
