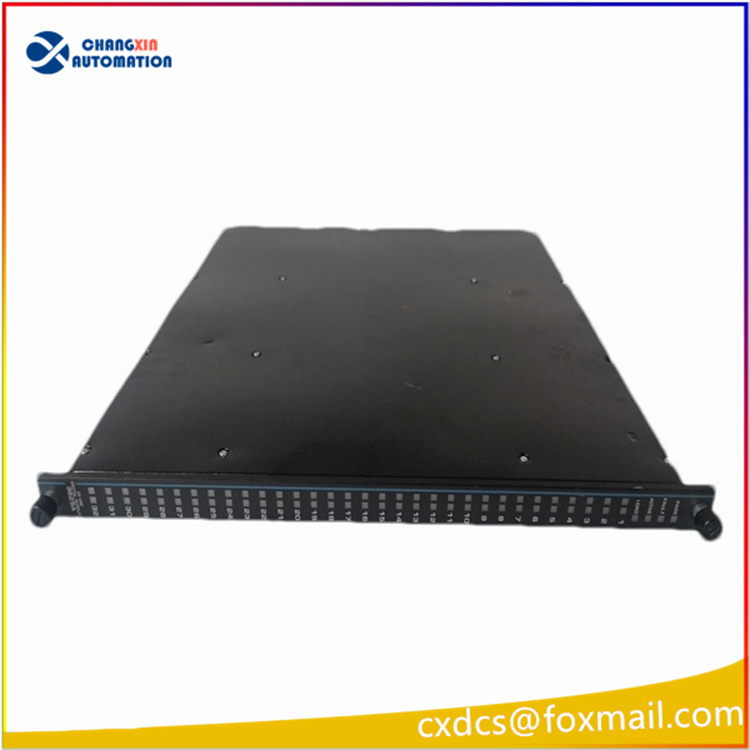

The Triconex 3625C1 is an analog input module in the Triconex system of Invensys (now part of Schneider Electric). It features high precision, high reliability, and multiple safety protection mechanisms, and is suitable for industrial fields such as petrochemicals, power, and metallurgy where safety requirements are extremely high. Here is a detailed introduction about the Triconex 3625C1 :
I. Product Overview
The Triconex 3625C1 analog input module is a component of the Triconex safety instrumented system (SIS), which is renowned for its high fault tolerance and programmable process control technology. The Triconex 3625C1 module is capable of receiving and processing analog signals from various sensors, such as temperature, pressure, flow, etc., providing accurate data support for the safe monitoring of industrial processes.
Technical features
High precision input:
The Triconex 3625C1 module features high-precision analog input capabilities, capable of receiving 0 to 5 volt DC or -5 to +5 volt DC signals. The input points are 32 differential with DC coupling.
The resolution of the module can be programmed to 12 bits or 14 bits, ensuring precise measurement of the input signals.
The accuracy is less than 0.15% FSR (full scale range), maintaining high accuracy within the working temperature range of 0 to 60 degrees Celsius.
Multiple safety protections:
Input over-range protection: 150 VDC/115 VAC continuous protection to prevent damage to the module from overvoltage.
Common mode suppression: -85 dB (DC–100 Hz), effectively suppressing common mode interference and improving signal quality.
The module has an intelligent diagnostic function within itself, capable of filtering and repairing input signals and diagnosing hardware faults on the module.
High reliability design:
The Triconex 3625C1 module adopts a three-module redundant structure (TMR), featuring three identical sub-circuits. Each sub-circuit performs independent control and conducts “voting” on the input and output through a dedicated hardware/software architecture to ensure reliable system operation.
The module can operate stably in harsh industrial environments, with excellent anti-interference and fault-tolerant capabilities.
Easy integration and maintenance:
The Triconex 3625C1 module supports hot-swappable functionality, allowing for module replacement and maintenance without interrupting the system operation.
The module provides comprehensive online diagnostic and repair capabilities, supporting remote monitoring and fault troubleshooting, reducing maintenance costs and time.
Application scenario
The Triconex 3625C1 analog input module is widely used in industrial fields such as petrochemicals, power, and metallurgy, which have extremely high safety requirements. In these fields, the system needs to monitor various process parameters in real time, such as temperature, pressure, and flow rate, to ensure the safety and stability of the production process. The Triconex 3625C1 module, with its high precision, high reliability, and multiple safety protection mechanisms, provides reliable data support and security guarantees for these application scenarios.
