Product Description

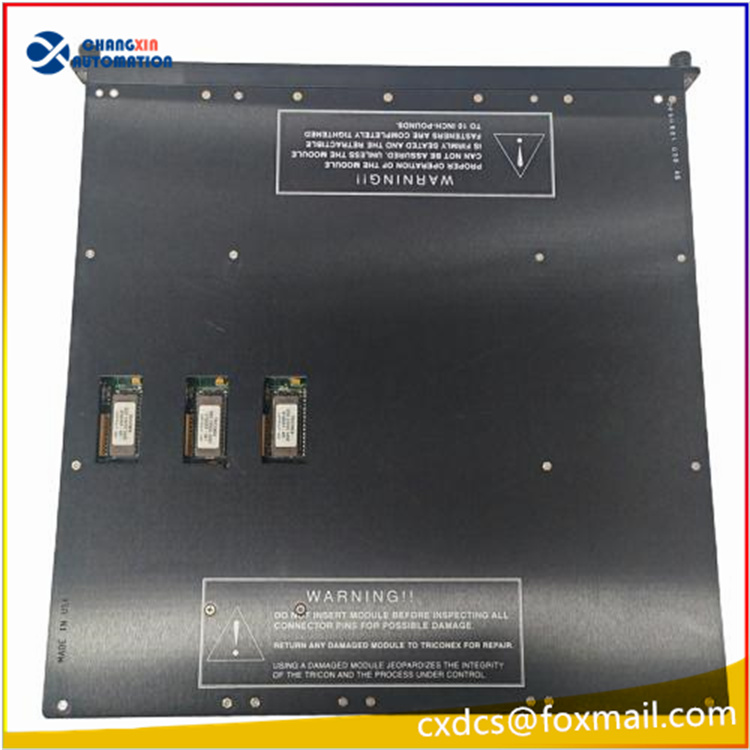

TRICONEX 3664 is a 32-channel digital output module of the 3600 series for Schneider Tricon Safety Instrumented System (SIS). It adopts Triple Modular Redundant (TMR) architecture and is certified to IEC 61508 SIL3. The module converts logic commands from safety controllers into field digital output signals to drive field actuators. It is equipped with comprehensive channel diagnostics, open/short circuit detection, and supports online hot-swap. Module replacement can be performed without system shutdown, ensuring stable operation of safety loops for high-risk industrial safety interlock applications.
Specifications
| Item | Specification |
|---|---|
| Model | TRICONEX 3664 |
| Module Type | Digital Output Module (DO) |
| Channel Count | 32 commoned output channels |
| Rated Voltage | 24VDC |
| Operating Voltage Range | 16~30VDC, max surge 36VDC |
| Continuous Current per Channel | 2A; 10A surge current for 10ms |
| Typical Voltage Drop | <1.5VDC |
| Max Load Leakage Current | 2mA |
| Channel Isolation | Min. 1500VDC galvanic isolation |
| Module Power Consumption | <10W (excluding load current) |
| Safety Integrity Level | IEC 61508 SIL3, TÜV approved |
| Diagnostics | Channel status, load fault, module fault diagnosis with status LED indicators |
| Architecture | TMR triple redundancy, automatic fault voting |
| Maintenance | Online hot-swap supported |
| Operating Temperature | 0℃ ~ 60℃ |
| Weight | Approx. 2.1~2.7kg |
Application
- Petrochemical, oil & gas, refineries: ESD emergency shutdown system for shutdown valves; FGS fire & gas system for sounder/beacon and fire solenoid valves.
- Power plant, coal chemical: Boiler safety interlock, turbine protection and emergency trip circuits.
- Pharmaceutical, metallurgy: Safety interlock for hazardous processes, control of safety valves, relays and pumps.
- Works with Tricon controllers and integrates with DCS / SCADA systems to build fault-tolerant safety instrumented systems.
Series Models
- 3604: Digital Input Module DI
- 3624: Analog Input Module AI
- 3664: Digital Output Module DO
- 3674: Analog Output Module AO
- 3684: Communication Module
- 3614: Digital Input Module
