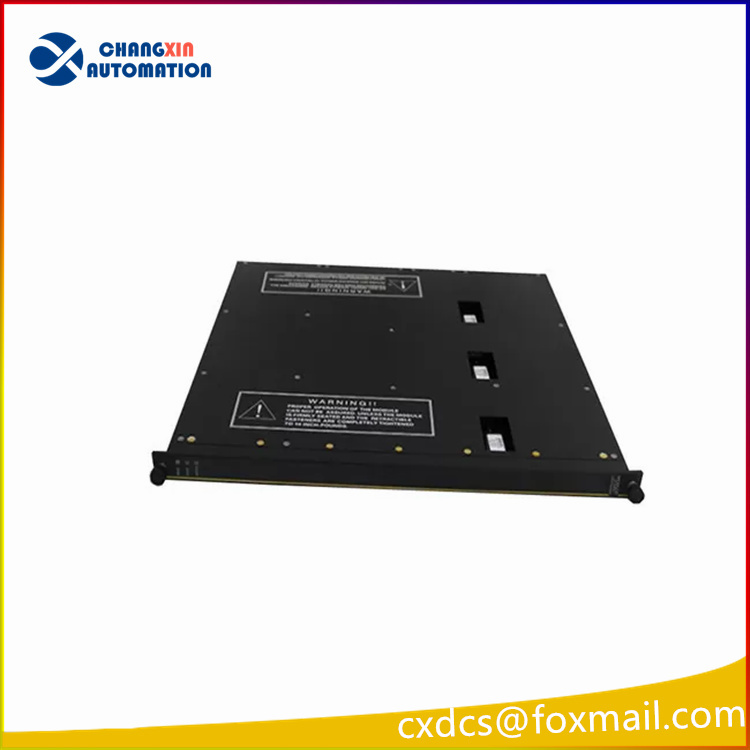

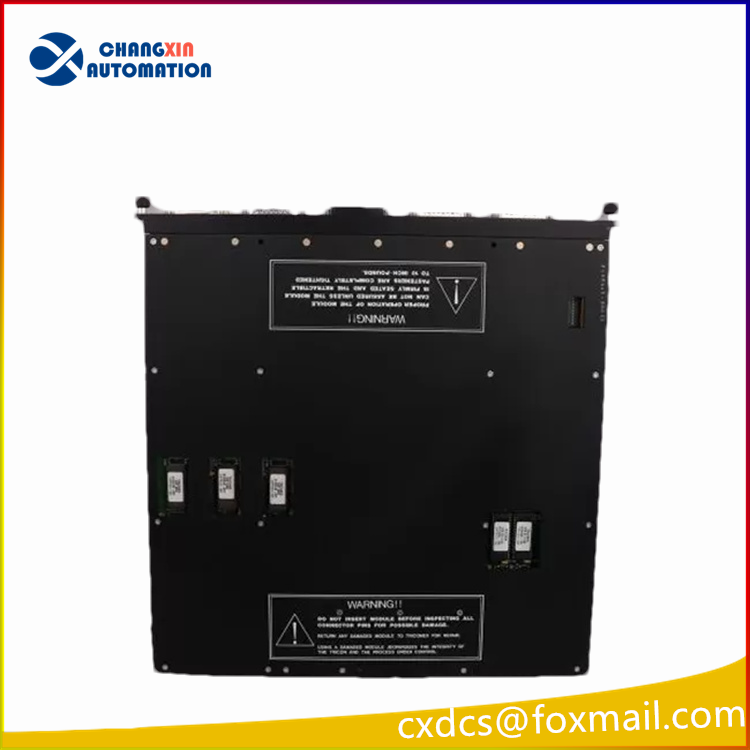

TRICONEX 4119A Enhanced Intelligent Communication Module

I. Product Positioning
4119A = Enhanced Intelligent Communication Module (EICM), compatible with Tricon 3000 series (8110 chassis) SIS safety system. It is a serial Modbus communication card for the TMR triple-redundant controller, responsible for serial data interaction with third-party PLCs, DCSs, instruments, and upper computers. It can also be connected to event printers.

Hardware Interface Specifications
4 isolated serial ports (DB25)
Each channel can be configured software-wise: RS232 / RS422 / RS485, 500VDC electrical isolation, strong anti-interference
RS485: Single bus can connect up to 32 Modbus slave stations, maximum transmission distance 1200m
RS232: Point-to-point short-distance communication
Baud rate: 1200/2400/9600/19200bps
1 Centronics parallel port
Specialized for SOE event printer, for printing interlock and fault sequence records
Panel indicator lights
PASS (normal operation), FAULT (module failure), independent TX/RX transmit/receive lights for each serial port
System capacity limit
Up to 2 4119A cards can be installed on a single 8110 chassis
The entire system can simultaneously enable up to 7 Modbus master stations
Does not support module redundancy hot standby, but supports online hot swapping, without stopping the machine to replace faulty cards

Supported Protocols and Functions Modbus RTU / Modbus ASCII
Full support for standard Modbus function codes: 01/02/03/04/05/06/08/15/16, can be used as master station / slave station
TriStation debugging interface
Serial port direct connection for downloading programs and online monitoring
SOE printing output
Real-time printing of safety system events, interlock actions, and card failure records through parallel port
Data interaction: Tricon internal variables mapped to Modbus registers, enabling bidirectional reading and writing between SIS and DCS / third-party instruments

Electrical and environmental parameters
Power supply: Backplane 24VDC power supply, unified power supply for Tricon rack
Operating temperature: 0℃ ~ +55℃ (standard cabinet conditions)
Certification: SIL3, Class I Div 2 explosion-proof area available
Architecture: The module itself is a TMR triple redundancy backplane bus, single-channel communication failure does not affect the safety logic of the system

Typical application scenarios
Petrochemical ESD, FGS system: Serial data inter-transmission between SIS and DCS (Oriental Union / Honeywell / Central Control)
ITCC compressor unit: Connect local PLC, vibration instrument, temperature inspection instrument
Power plant BMS boiler protection: Exchange interlock signals with the auxiliary control system
Old-fashioned field instruments, analyzers without Ethernet, connected to Tricon safety system through 4119A

Differences in communication cards of the same series (avoiding pitfalls)
4119A EICM: 4 serial ports + parallel port, Modbus RTU/ASCII, dedicated for old-fashioned serial port communication
4329: Modbus TCP Ethernet communication card (network port, modern mainstream)
4409: Internal expansion card for ARCNET system
4509: HART bus acquisition card
