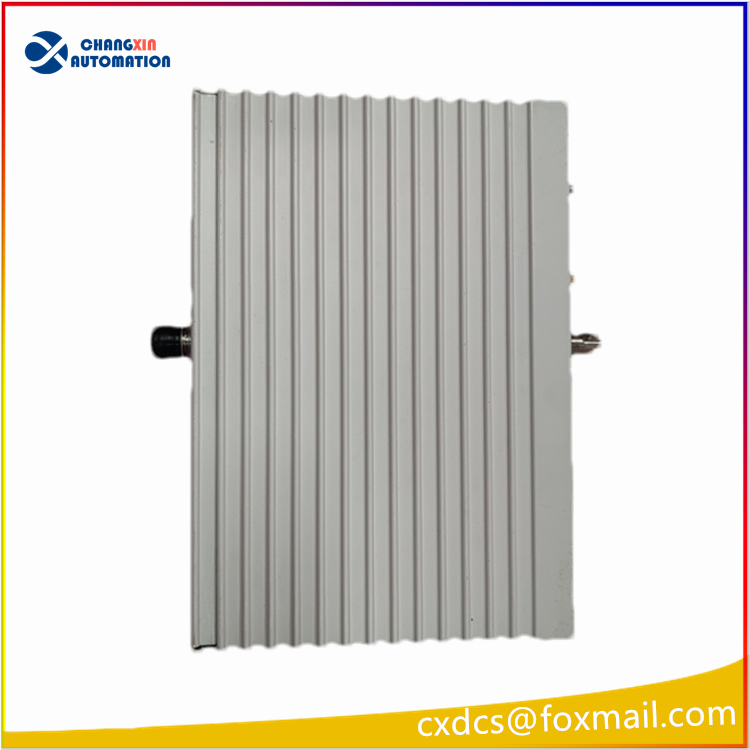

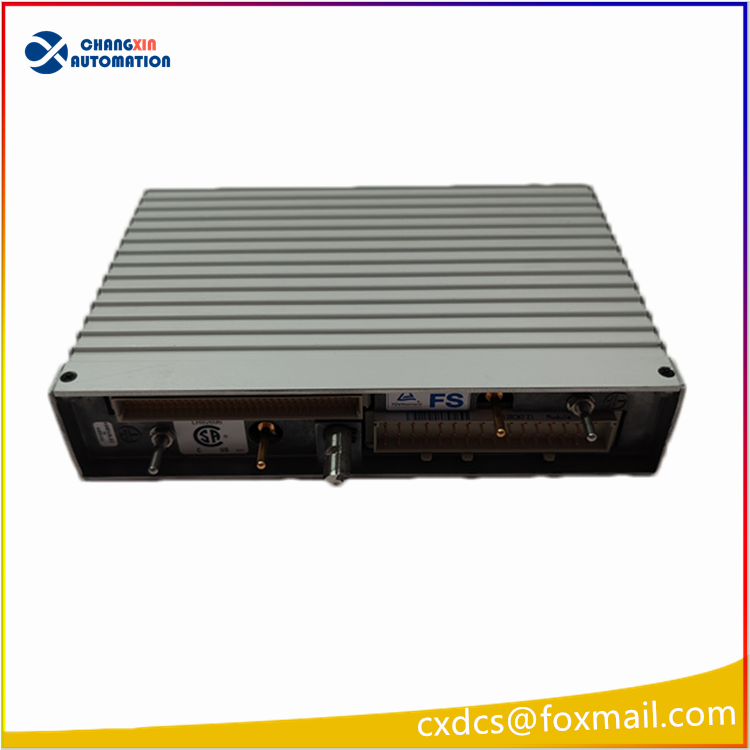

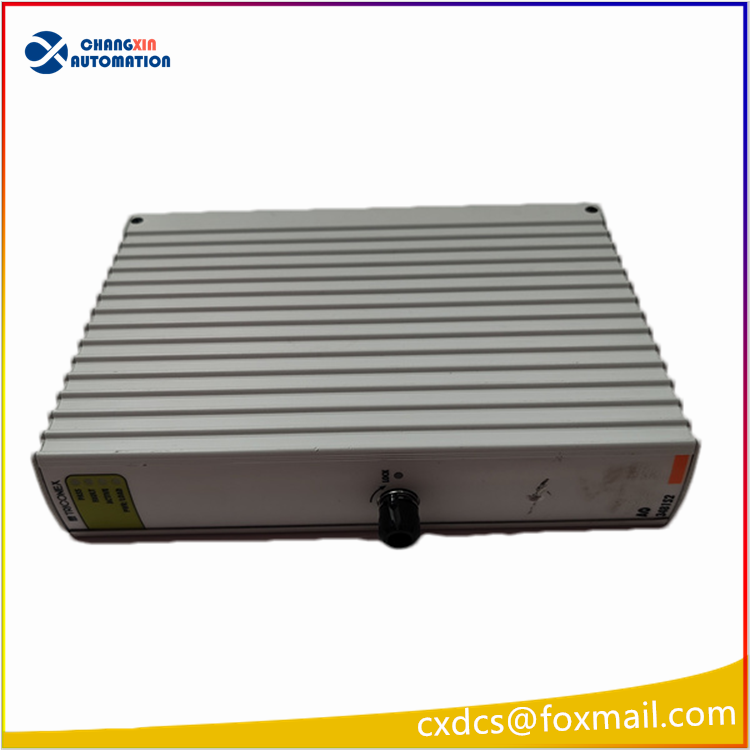

TRICONEX AO3481S2 4-channel Analog Output Module

I. Basic Information
Brand: TRICONEX (a subsidiary of Schneider)
Product Type: Tricon Series SIL3 Safety System 4-channel Analog Output AO Module
Architecture: TMR Triple Module Redundancy Architecture, IEC61508 SIL3 Safety Level
Compatible Systems: Tricon 3000/4000/5000 Series ESD, F&G, BMS Safety Instrumentation Systems
Version S2: Second-generation Hardware Optimized Version, enhanced channel fault diagnosis, anti-electromagnetic interference, supports firmware V9.0 and above, supports hot-swappable operation while powered on, online replacement without interrupting safety interlock operation

Core Electrical Parameters
Channel Configuration: 4 independent isolated analog output channels, standard 4-20mA current signal
Accuracy Indicators: Full-scale accuracy ±0.1% FS, resolution 16 bits, signal refresh cycle ≤ 10ms
Load Capacity: Maximum load for a single channel 600Ω, compatible with control valves, valve positioners, on-site actuators
Overload Protection: Maximum output 36VDC withstand voltage, supports over-range 0-22mA fault diagnosis detection
Power Supply Method: Rack backplane + 5V digital power supply, backplane 24V field circuit power supply, total power consumption ≤ 10W
Isolation Design: Three redundant branches are isolated from each other, electrical isolation between channels, withstand voltage 500VAC, suppress ground loop interference
Environmental Parameters: Operating temperature 0℃～60℃, storage – 40℃～+85℃, IP20 cabinet installation

Core Safety Features
TMR Triple Redundant Voting
Three independent hardware synchronous output, through three-out-of-two median voting, single hardware, line fault automatically shielded, no false output, false trip, ensuring reliable control of control valves, emergency shut-off valves.
Full Channel Real-time Self-Diagnosis
Can detect: output circuit short circuit, open circuit, load overload, channel over-range, backplane communication abnormality, module hardware failure, faults are uploaded to the upper HMI/SCADA alarm through panel FAULT light + system internal fault code.
Fault-Safe Failure Prevention Strategy
Software configurable fault states for output holding, zeroing, full-scale three safety modes to meet process safety interlock requirements.
Hot Swap Maintenance
Single module failure can be directly unplugged and replaced without stopping the machine, does not affect the safe control operation of other I/O channels in the same rack.

Panel Indicator Light Explanation
PASS: Always on = Triple hardware self-check normal, TMR synchronization normal; Blinking = Initializing
FAULT: Red light on = Module hardware failure, channel circuit abnormality, backplane communication failure
CH1~CH4: Channel status lights, normal operation flashes, circuit fault always on alarm

Typical Application Scenarios
ESD emergency shutdown system in petroleum refining and coal chemical industries, control emergency shut-off valves, control valves
Gas turbine, compressor unit anti-stall, speed/pressure closed-loop regulation
Boiler BMS combustion safety system, F&G fire and gas system linkage regulation valves
HIPPS high-integrity pressure protection system, high-risk process pressure, flow safety regulation loop

Commonly Used Companion Modules of the Same Series
AI3451: 8-channel Analog Input Module
DI3301: 16-channel Digital Input Module
DO3624: 16-channel Digital Output Module
CIM3211S2: System Communication Gateway Module (the model you previously queried)
