I. Basic Information
Brand: Triconex (a subsidiary of Schneider, formerly Invensys)
Model: PLM3900N (Priority Logic Module, a priority logic module)
Compatible System: Tricon Classic TMR Tri-Redundant SIS Safety Instrumentation System
Safety Level: IEC 61508 SIL3 certification, TÜV functional safety certification
Installation Method: Standard Tricon system rack slot installation, supports hot-swappable online replacement
Core Function Positioning
Dual-channel redundant power monitoring and distribution
Real-time monitoring of the status of the two 24VDC redundant input power supplies in the rack, achieving load balance for both power supplies, automatic fault switching to prevent the entire safety system from shutting down due to a single power supply failure, and overvoltage, undervoltage, and overcurrent protection for the entire power supply.
Safety system priority interlock logic processing
Independent hardware implements ESD emergency stop, priority hard logic voting for critical safety circuits. Even if the main control CPU malfunctions, this module hardware circuit can still complete the safety trip, meeting the fault safety design principle.
Centralized diagnosis of system I/O circuits
Collect all I/O modules, power supplies, and backplane bus fault signals, give local alarms through panel indicator lights, and upload to the safety controller to record fault events, quickly locating power supply, backplane, and card-type faults.
System test circuit interface
Equipped with multiple TEST test input/output terminals for offline calibration of safety circuits, simulation testing of interlock circuits, and verification of SIL circuits. No need to modify the on-site wiring to complete the system’s regular safety tests.
Hardware Channels and Panel Description

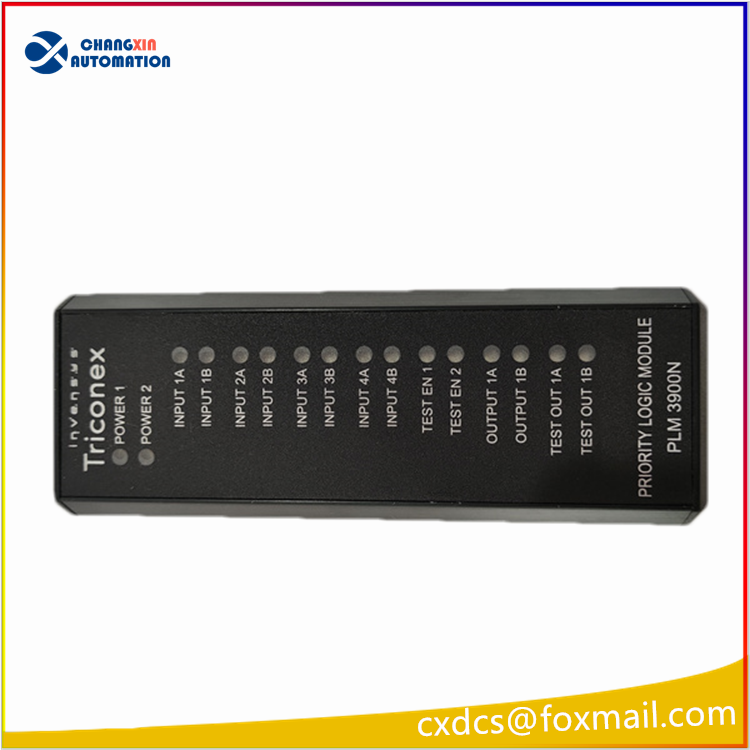

1. Panel Indicator Light Definitions
POWER1 / POWER2: Two redundant power input indicator lights, constantly on indicates normal power supply for the corresponding power supply
INPUT 1A/1B, 2A/2B, 3A/3B, 4A/4B: 8 hardware interlock priority digital input channels
TEST EN1 / TEST EN2: System test enable terminals
OUTPUT 1B, TEST OUT 1A/1B: Safety trip hard logic output, test feedback circuit
2. Channel Configuration
8 passive digital priority inputs: Connect critical unit operation, process allowed, bypass withdrawal, etc. hard contact signals
Multiple hardware relay outputs: Directly drive ESD emergency stop, critical valve safety cut-off circuits (hardware safety trip, not relying on software)
Multiple test-specific I/O: Used for annual functional safety verification of SIS systems, interlock simulation testing, SIL circuit function verification, without modifying the on-site wiring to complete the system’s regular safety tests.
Electrical Technical Parameters
Rated Power Supply: DC 24V (18～32VDC wide input range), supports dual redundant power supply
Input Signals: Passive dry contacts / 24VDC active switch quantity, optically isolated 1500VAC
Relay Output Contact Capacity: AC250V 5A / DC30V 5A, can directly drive trip circuits
Operating Temperature: -40℃ ～ +70℃; Storage Temperature: -40℃ ～ +85℃
Humidity: 5%～95% RH (no condensation), industrial EMC anti-interference design
Protection Grade: IP20 (installed in the cabinet)
Architecture Characteristics: Compatible with TMR tri-Redundant voting mechanism, single-channel failure does not affect the execution of safety logic
Product Core Features
Hardware safety fallback design
Different from software logic, PLM3900N is a pure hardware priority interlock, can still execute safety stop even if the CPU crashes or the program is abnormal, is the key fallback protection component of SIL3 safety circuits.
Dual power supply redundant monitoring Real-time monitoring of the power supply quality of two circuits can provide early warnings for power deviation, power shortage, and grounding faults, preventing major process accidents caused by power loss in the safety system.
Convenient safety circuit testing function
Equipped with a hardware testing interface, it can realize online/offline calibration of interlock circuits, meeting the legal periodic functional testing requirements of SIS systems in the petrochemical industry.
Full-link fault self-diagnosis
Power abnormalities, input circuit short circuits / breaks, and backplane communication failures can be indicated by panel lights + dual alarms on the system upper computer, facilitating efficient fault location in operation.
Native Tricon system support
Can be paired with 3500 series DI/DO/AI/AO safety I/O cards and main control modules, widely used for spare parts replacement of old Tricon first-generation safety systems.
typical application scenarios
ESD emergency shutdown SIS safety instrumented system power monitoring + hardware interlock backup protection for petroleum, chemical, and coal chemical plants
Safety shutdown protection systems for boilers, steam turbines, gas turbines in thermal power plants
High-risk process safety interlock control systems for compressor stations, long-distance pipelines, and large storage tank areas
Functional verification and hard logic protection of SIL3-level safety instrumented systems in pharmaceuticals and metallurgy high-risk production facilities
