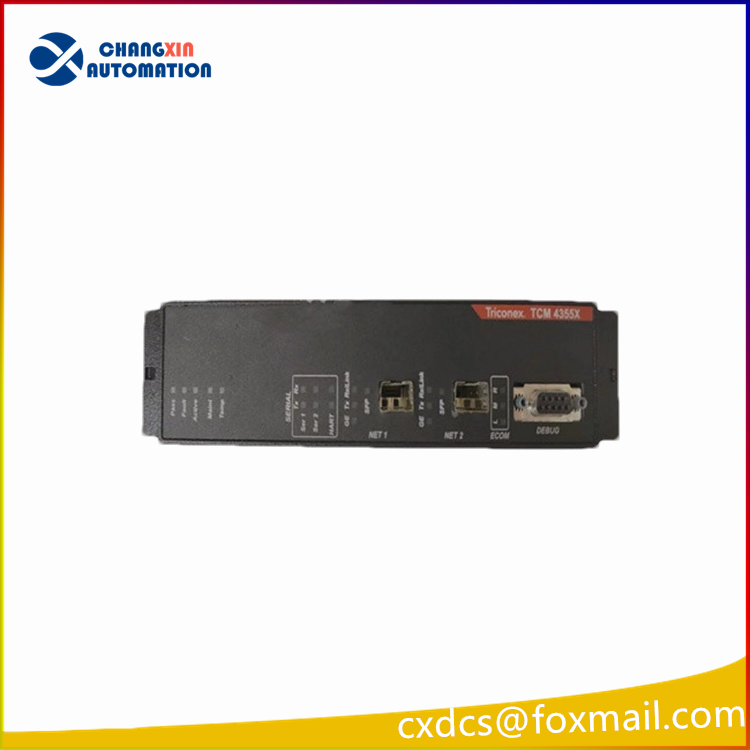

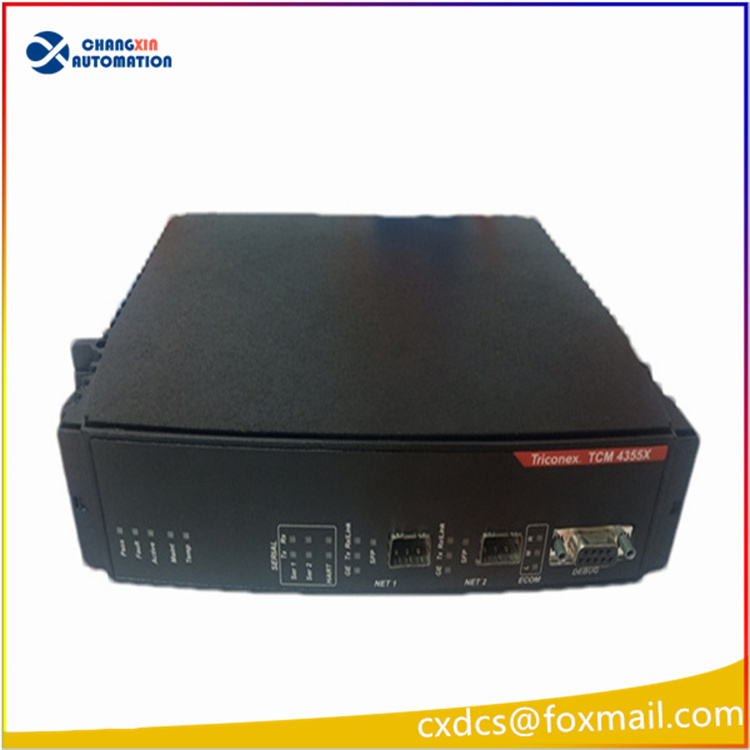

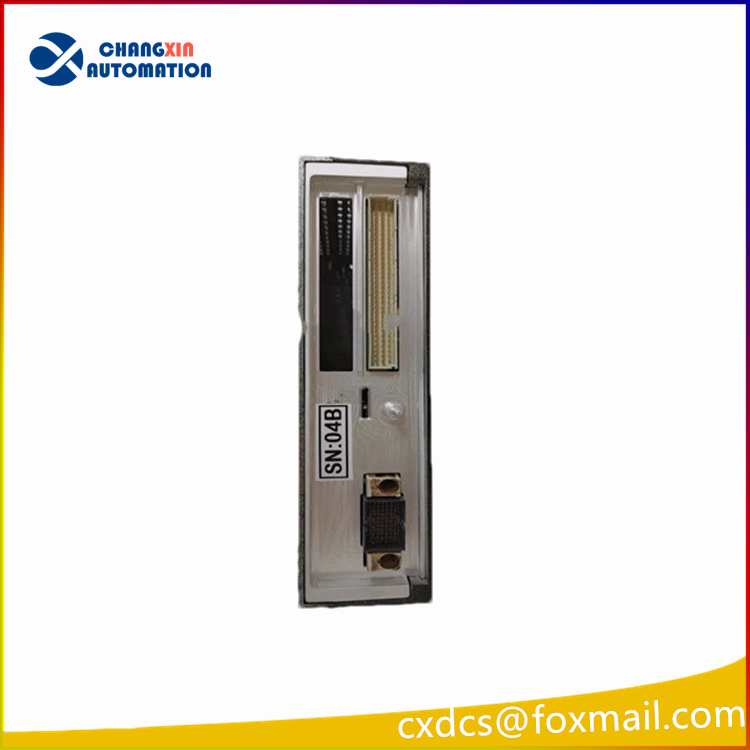

TRICONEX TCM 4355X Tri-Module Redundant Communication Module
I. Product Description
Full Name: Tricon Communication Module (TCM) 4355X Tri-Module Redundant Communication Module
Brand Ownership: Triconex (formerly Invensys, now affiliated with Schneider Electric)
Compatible Systems: Tricon v10/v11 (MP/MP+) series SIS safety instrumented systems, adopting TMR triple-module redundant architecture
Safety Level: SIL3 (IEC 61508), applicable for ESD emergency stop, unit interlock, boiler protection, etc., for high-risk process safety control
Life Cycle: The original factory has discontinued production (EOL), currently the market is dominated by disassembled spare parts, second-hand refurbished, and in-stock products
Hardware Interfaces and Electrical Parameters
Interface Configuration
Dual Ethernet (NET1/NET2)
2×100/1000Mbps Auto-Sensing Network Ports, copper cable RJ45; can be equipped with SFP optical modules for fiber optic communication, dual networks for redundancy to avoid single network failure
Isolated Serial Channels
2 channels of configurable RS232/RS485 (DB9), ports are electrically isolated from the backplane with 500VDC, resistant to on-site interference
Special Diagnostic Serial Port (DIAG)
Independent isolated RS232 port, used for local module debugging, firmware diagnosis, and fault reading
Electrical & Environmental
Power Supply: Provided by the rack backplane at 24VDC
Power Consumption: <19W
Operating Temperature: -40℃ ~ +70℃, cabinet installation protection grade IP20
Humidity: 5%~95% without condensation, with strong anti-vibration and anti-EMI electromagnetic interference capability
Support Hot Swap (Hot Swap): No downtime for online replacement, no interruption of safety interlock operation
Supported Communication Protocols
TriStation Protocol: Download from engineer station program, online monitoring, system diagnosis
Modbus TCP / Modbus RTU (Master/Slave): Connect with brands such as Yokogawa, Honeywell DCS, upper computer, HMI
TSAA Multi-Controller Peer-to-Peer Communication: Data exchange and collaborative interlock between multiple Tricon racks
SNTP Network Time Synchronization: Millisecond-level clock alignment for the entire system
HART-IP: Direct connection to HART intelligent transmitters, reading of instrument diagnostic information
Optional Expansion: DNP3, OPC UA, etc. protocol configuration
Core Functions
System External Communication Gateway: Data bridge between Tricon safety controller and external DCS, SCADA, remote operation platform
Interconnection of Multiple Tricon Racks: Redundant data exchange between multiple safety stations in large-scale installations
Engineering Maintenance Channel: Online debugging with TriStation1131 software, fault log collection, firmware upgrade
TMR Three-Channel Voting: Independent transmission and reception of communication data, fault-tolerant voting, single-point communication failure will not cause safety function failure
Comprehensive Self-Diagnosis: Real-time display of PASS/FAULT/ACTIVE indicator lights on the panel, automatic recording of communication abnormality logs
Typical Application Scenarios
ESD emergency stop system for petroleum refining, LNG, natural gas long-distance pipeline
Steam turbine / gas turbine, compressor unit interlock protection in power plants
SIS safety interlock for chemical reaction vessels, high-pressure equipment
Bidirectional secure data interaction with third-party DCS, remote secure monitoring
