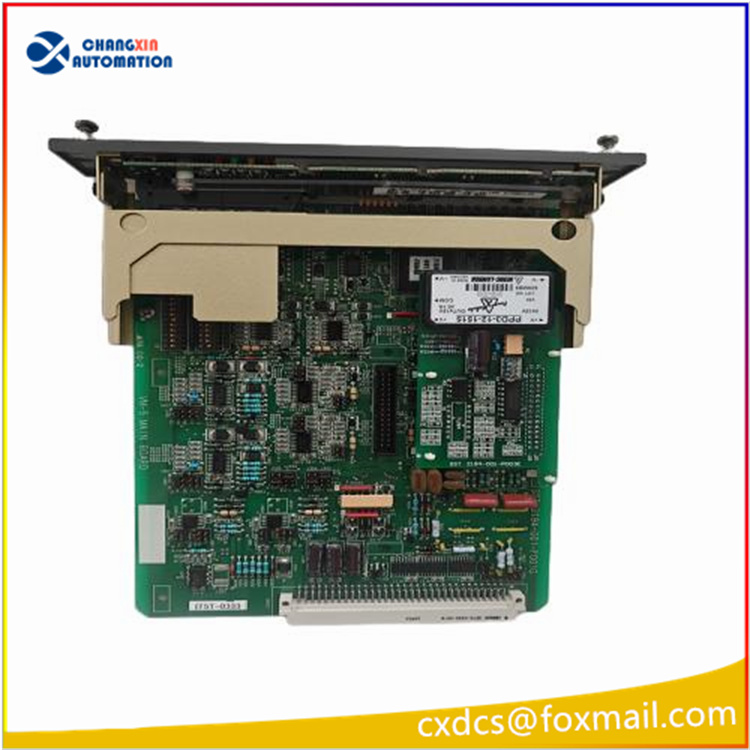

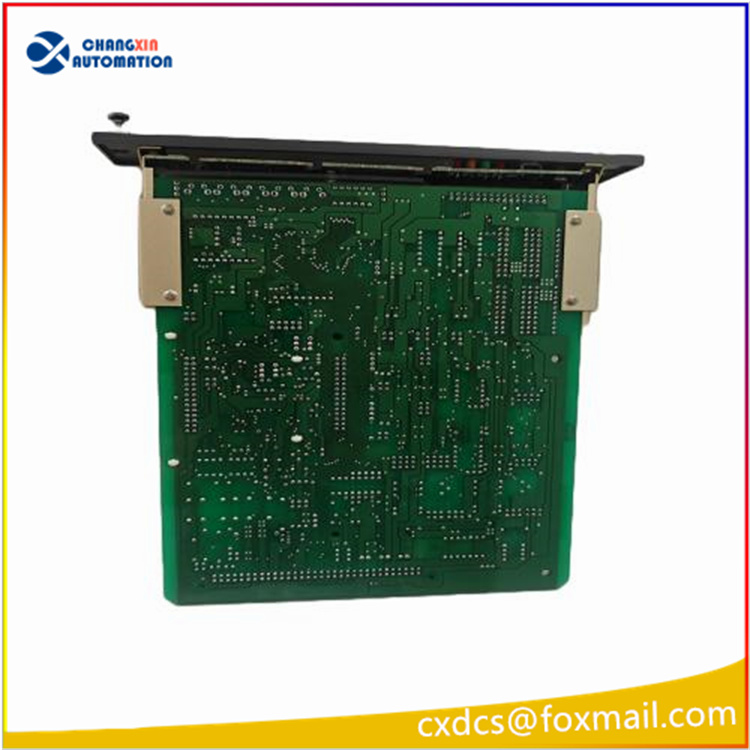

VM-5T-21010-111-111-011-0EX5 Industrial Vibration Monitor

Key Features and Advantages

The Shinkawa VM-5T-21010-111-111-011-0EX5 industrial vibration monitor delivers critical machinery protection in hazardous environments with its ATEX/IECEx Zone 1 certification. Engineered for continuous monitoring of rotating equipment, its five independent channels simultaneously track velocity (mm/s) and displacement (μm) with 25.6 kHz sampling rate per channel for precise fault detection. The monitor’s rugged IP66 enclosure withstands harsh industrial conditions including extreme temperatures (-30°C to +85°C) and exposure to dust/moisture.

Advanced diagnostic capabilities: Real-time FFT analysis identifies specific failure modes including imbalance, misalignment, bearing defects, and resonance issues. The VM-5T-21010-111-111-011-0EX5 features programmable alarm thresholds with delay timers to prevent nuisance trips, while three SPDT relays trigger protective shutdowns when critical vibration levels are exceeded. Its SIL 2 certification ensures reliable safety instrumented function performance.

Flexible integration: Dual communication protocols (Modbus RTU and CANopen) enable seamless connection to PLCs and DCS systems. Two 4-20mA analog outputs provide continuous vibration level signals for process control systems. The monitor’s ICP® compatible inputs support industry-standard accelerometers without external signal conditioners.

Predictive maintenance features: Continuous waveform capture and spectral storage create historical baselines for trend analysis. The VM-5T-21010-111-111-011-0EX5 includes built-in sensor diagnostics that detect cable faults and accelerometer degradation before measurement accuracy is compromised. Its modular design allows field replacement of I/O cards without recalibration.

Configuration efficiency: Shinkawa’s dedicated software simplifies setup with pre-configured templates for common machinery types (pumps, fans, compressors). The monitor’s web interface provides remote access to real-time vibration data, historical trends, and configuration parameters via standard browsers. LED status indicators offer immediate visual confirmation of operational status and alarm conditions.
