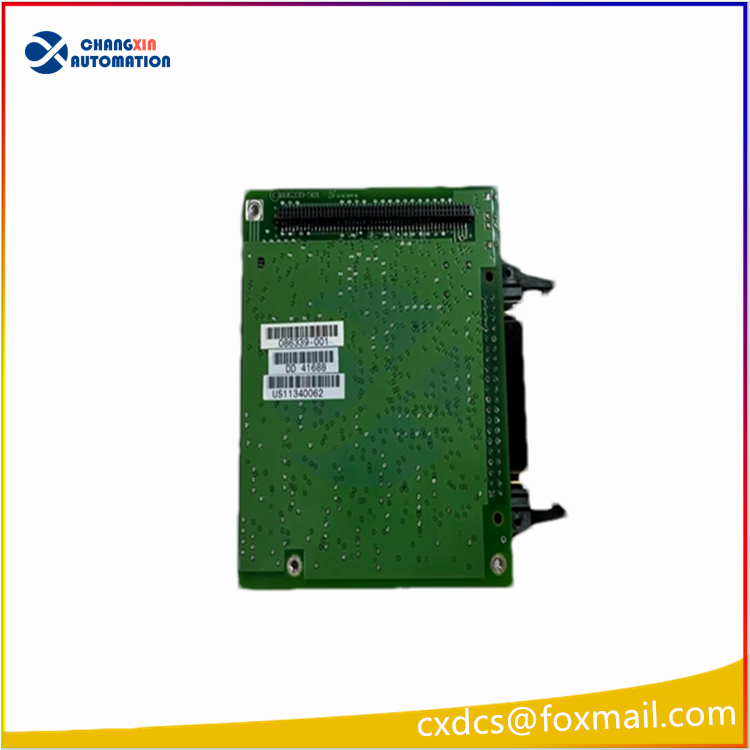

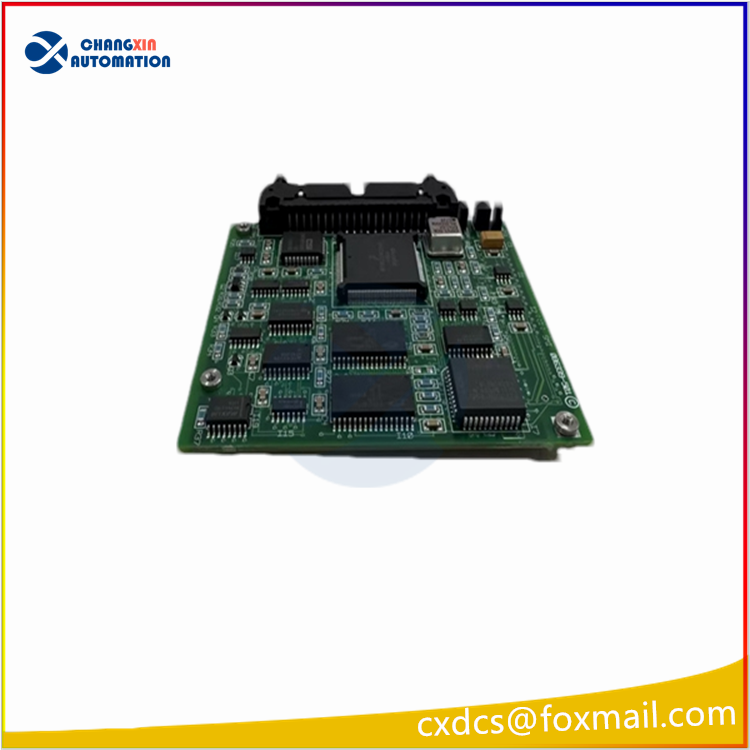

ABB 086339-501 Digital Output Board

I. Product Description
Original manufacturer: Westinghouse. Currently, it is an I/O board specifically for ABB OVATION DCS system.
Full model name: 086339-501 Digital Output Board. Digital Output Board
System compatibility: Ovation large-scale DCS controller frame for thermal power plants and chemical plants. Standard spare parts for boiler, turbine, and auxiliary control systems.
Form: Plug-in European-style card, black snap-backboard bus interface, DB-type field wiring port

Core Hardware Parameters
Channel configuration: 16 independent digital output DO channels (CH1 to CH16)
Output specification: 24VDC transistor output. Maximum single-channel resistive load of 2A. Can directly drive solenoid valves, relays, sound and light alarms, and damper actuators
Power supply: Module backplane power supply 24VDC ±20%
Diagnostic function: Channel open circuit, short circuit, load absence detection. Onboard status indicator light. Real-time fault reporting by upper computer
Isolation: Electrical isolation between channels and backplane bus. Resistant to EMI interference from frequency converters and high-voltage motors
Bus interface: Ovation dedicated backplane high-speed parallel bus. Redundant controller synchronous reading and writing

Environmental and Mechanical Specifications
Operating temperature: -25℃ ~ +70℃. No condensation
Humidity: 5%~95% RH
Protection: IP20 (installed in the cabinet)
Vibration resistance: Compliant with IEC60068. Applicable for power plant cabinet vibration conditions
Installation: Hot-swappable rack-mounted. Can be replaced with spare parts during shutdown or online operation
Size: Approximately 198×140×12mm. Weight ≈210g

Key Features
Redundancy compatibility: Supports OVATION dual redundant controller configuration. No disturbance switching of output during faults
Industrial EMC protection: Built-in surge absorption and filtering circuits. Suitable for large-power auxiliary equipment on-site in thermal power plants
Loop integrity detection: Safety interlock loop can be diagnosed for open circuits. Suitable for FSSS furnace safety system, ESD interlock
Software support: Ovation Developer, Ovation Operator Console configuration and diagnosis

Typical Application Scenarios
Thermal power industry: FSSS furnace ignition, oil gun / coal mill cut-off, turbine electromagnetic valves, fan damper control
Chemical / Oil and Gas: ESD emergency cut-off, flare ignition, pump valve interlock output
Water treatment, waste incineration: Valves, dosing pumps, alarm sound and light drive
