Product Description

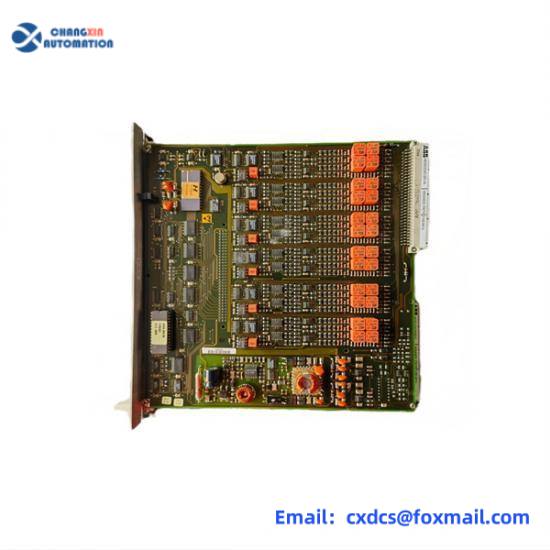

ABB HESG448230R1 is an analog input AI module of the HESG / HIEE range for Symphony DCS system. It is a rack-mounted I/O card for ABB Symphony distributed control system, discontinued by OEM and high-value spare part for legacy thermal power and chemical plants. This card receives field signals such as 4-20mA, thermocouple and RTD, provides signal isolation, filtering and A/D conversion, and transmits data to controllers. It supports redundant configuration and connects to Symphony backplane bus, widely used for replacement of measurement loops for boilers and steam turbines.
Technical Parameters
- Brand: ABB
- Model: HESG448230R1
- Series: Symphony DCS
- Product Type: Analog Input AI Card
- Signal Types: 4-20mA, RTD, Thermocouple
- Channel Count: 8 isolated analog input channels
- Isolation: Channel-to-channel isolation, input to bus isolation
- Resolution: 16-bit A/D conversion
- Backplane Bus: Symphony internal bus
- Mounting: Rack slot mount
- Power Supply: Powered via backplane
- Protection Class: Bare PCB IP20
- Operating Temperature: 0℃ ~ +60℃
- Storage Temperature: -20℃ ~ +70℃
- Functions: Analog signal acquisition, signal conditioning, self-diagnosis, wire break detection
- Lifecycle: Discontinued, spare part for power & chemical DCS
Application
- Boiler and turbine measurement acquisition for ABB Symphony DCS in thermal power plants;
- Temperature, pressure and flow signal collection in refineries and chemical plants;
- Spare replacement for DCS I/O in CHP and captive power plants;
- Interface for RTD / TC temperature sensors and 4-20mA pressure transmitters;
- Overhaul and fault replacement for aged Symphony DCS systems;
- Monitoring loops for water treatment and metallurgy plants.
Similar Series Models
HESG448229R1, HESG448231R1, HESG448232R1, HESG448233R1
