Basic Identification and Product Line Assignment

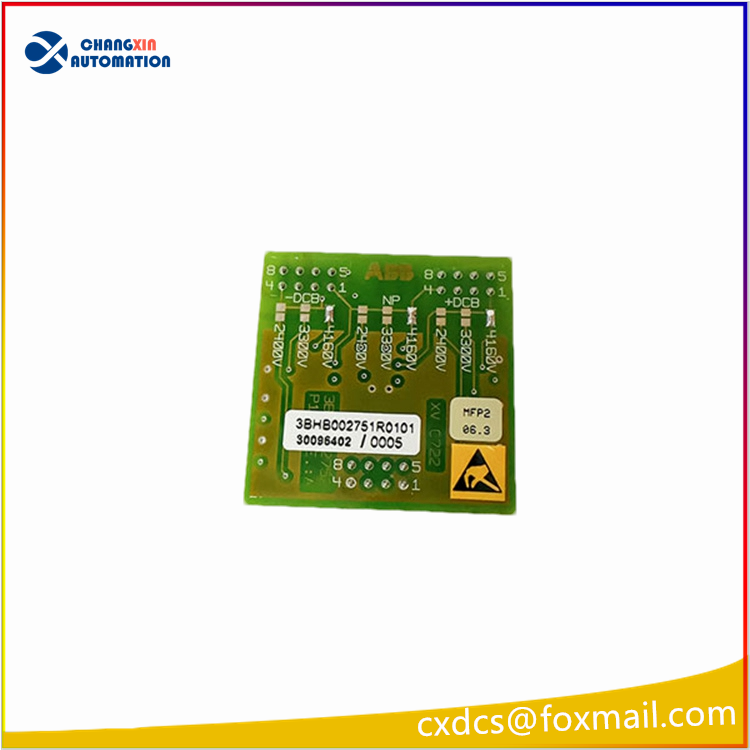

1. **Complete Numbering**: Material order number `3BHB002751R0105`, commercial model `XVC722AE015`; the hardware architecture of this iteration piece `3BHB002751R0106` is consistent with the previous series, and most working conditions are compatible for replacement.
2. **Category Positioning**: This is an ABB high-power excitation cabinet and an embedded computing sub-board for the integral transmission system. It **does not belong to the IRC5 industrial robot accessories**. It is separate from the previously queried DSQC639 robot main control board and cannot be used interchangeably.
3. **Application Industry**: Excitation regulation for hydropower / thermal power units, main drive of metallurgical rolling mills, heavy lifting and large-power rectifier control cabinets.
2. Core Hardware Parameters (Same as XVC722 Series Standard Specifications) Table
| Parameter Item | Detailed Specifications | | — | — |
| Main Control Chip | MCF5475, with a main frequency of 256 MHz and computing power of 410 MIPS |
| Built-in Storage | 64MB DRAM + 4MB ROM, equipped with power-saving NVRAM cache |
| Power Supply Specifications | 24VDC ± 10%, rated power consumption 5W, working current 200mA |
| Operating Temperature Range | -40℃ to +85℃, suitable for the harsh temperature conditions of industrial cabinets |
| Communication Capability | Dual 100Mbps Ethernet, natively supports Modbus-TCP industrial bus |
| Protection Grade | IP20 (standard cabinet installation), can withstand humidity ≤ 95% without condensation |
Core Functions
1. **Excitation Closed-loop Regulation**: Receives upper-level main control instructions, dynamically adjusts the excitation current of the generator / high-power motor, stabilizes output and suppresses grid harmonics;
2. **Transmission Closed-loop Calculation**: Completes real-time closed-loop calculations of speed, torque, and position, suitable for high-precision speed regulation scenarios of large equipment;
3. **Fault Chain Protection**: Integrates overvoltage, overcurrent, and overtemperature monitoring, immediately reports fault codes and triggers the entire machine to stop in case of abnormalities;
4. **Data Transfer and Interaction**: Connects the main control unit with the underlying power module, bidirectionally transmits data of operation collection and control instructions.
Purchase Replacement & Operational Practice Key Points
Spare Parts Replacement Considerations
– Prioritize the purchase of the complete original model `3BHB002751R0105`; higher suffix new versions (such as R0106) can be downward compatible, while lower suffix old versions are prone to firmware adaptation errors;
– Before replacement, check the firmware version of the entire excitation system to avoid failure of power-on self-test due to incompatible software and hardware versions.
Typical Fault Phenomena
– Communication interruption of the excitation unit, failure of the entire machine’s power-on self-test;
– fluctuation of motor speed， unstable excitation output；
– Continuous reporting of hardware fault codes by the control cabinet.
