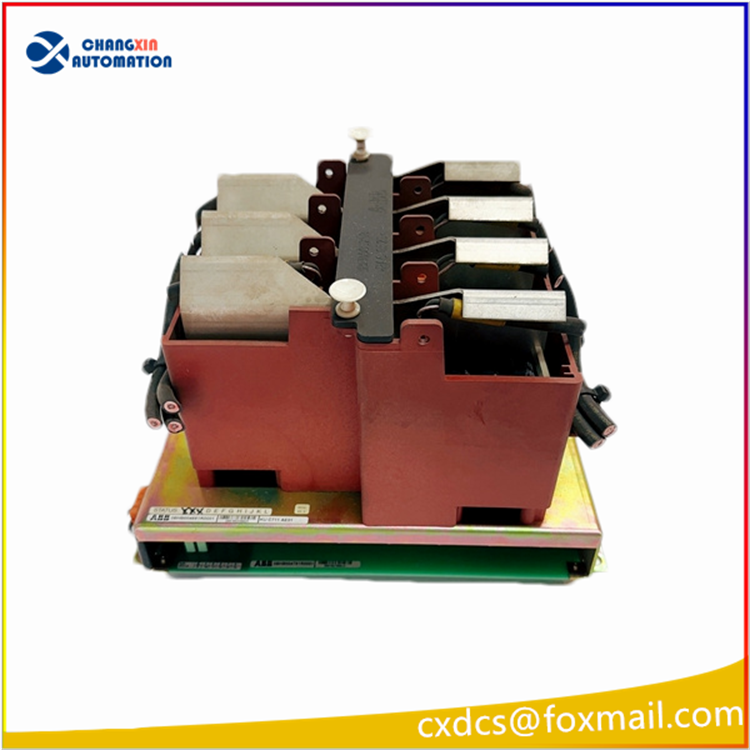

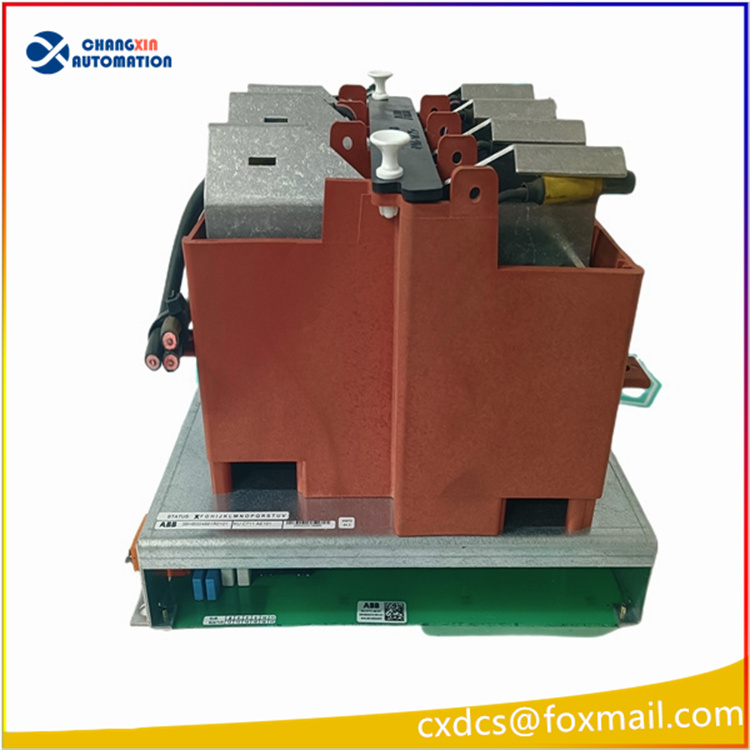

ABB 3BHB004661R0101 Excitation Controller Module

ABB 3BHB004661R0101 is a versatile module. Common types include excitation controllers and power modules. The following is an in-depth introduction to this module:
I. As an Excitation Controller
Product Overview: The ABB 3BHB004661R0101 excitation controller is an indispensable part of the power system, used to regulate the excitation current of synchronous generators, thereby controlling the voltage and reactive power of the generators.
Key Features:
High Precision Control: Utilizes advanced control algorithms to achieve high-precision control of the excitation current.
Fast Response: Has a fast response speed, capable of quickly adapting to system changes.
Multiple Protection Functions: Equipped with overvoltage, undervoltage, overcurrent, and other protection functions to ensure the safe operation of the generator set.
Flexible Configuration: Can be flexibly configured according to different generator sets and system requirements.
Rich Communication Interfaces: Supports multiple communication protocols, such as Modbus and IEC61850, facilitating communication with other devices.
User-friendly Human-Machine Interface: Provides an intuitive human-machine interface for easy operation and maintenance.
Application Domains: Widely used in power generation systems such as thermal power, hydropower, nuclear power, and new energy power generation (such as wind power, solar power) systems.

As a Power Module
Product Overview: The ABB 3BHB004661R0101 power module is a highly reliable power module specifically designed for industrial automation control systems.
Key Features:
High Reliability: Utilizes redundant design, including power redundancy and battery redundancy, to enhance the reliability of the power supply.
Easy Maintenance: Supports hot swapping, facilitating online maintenance and replacement.
Modular Design: Easy to install, convenient for on-site configuration and maintenance.
Product Parameters:
Input Voltage: 100V – 240V AC
Output Voltage: 24V DC
Output Current: 10A
Power: 240W
Application Domains: Widely used in industrial automation control systems, power systems, petrochemicals, metallurgy, and other fields.

Technical Specifications (Based on Similar Products)
Input/Output Channels: The specific number of channels may vary depending on the product version, but there are usually multiple analog input/output channels.
Signal Range: Supports various analog signal ranges, such as 0-10V, 4-20mA, etc.
Resolution: High resolution, capable of accurately measuring and converting analog signals.
Isolation Voltage: Equipped with high isolation voltage to ensure electrical isolation between input and output.
Operating Environment: Adapts to a wide temperature range and has good anti-electromagnetic interference capability.

Application Scenarios
Industrial Automation: In automated production lines, used for monitoring and controlling various analog signals, such as temperature, pressure, flow, etc.
Power Electronics: In power conversion and transmission systems, used for monitoring and controlling key parameters such as voltage and current.
Renewable Energy: In solar, wind, and other renewable energy systems, used for monitoring and controlling the operation status of power generation equipment.
