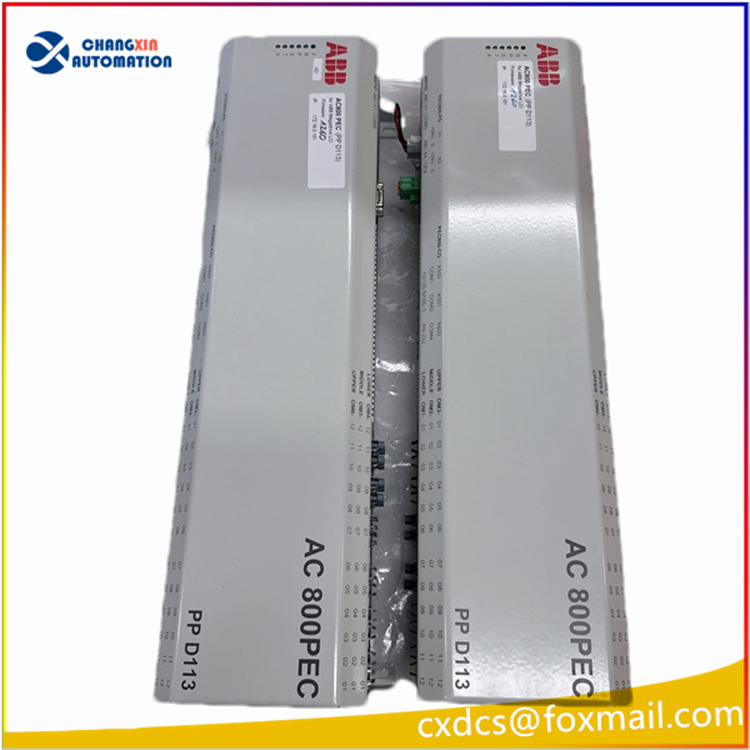

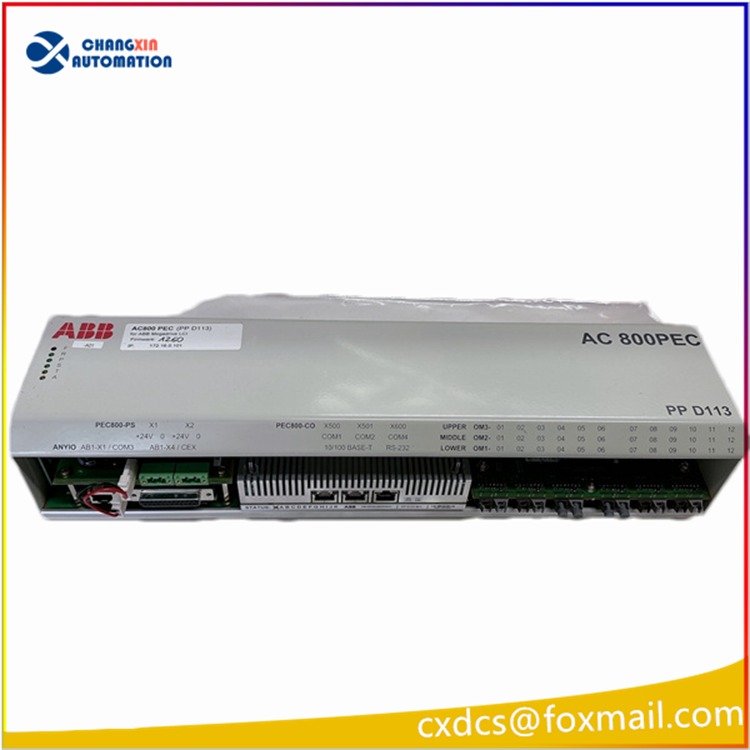

ABB 3BHE023584R2356 Thyristor Pulse Trigger Board

I. Product Description
Material Number: 3BHE023584R2356
Hardware Model: PPD113B03 (AC800PEC Platform Pulse Trigger Mainboard)
Brand Ownership: ABB (now Hitachi Energy), Swedish Original Factory
Positioning: High-power SCR Thyristor Pulse Trigger Board / Gate Drive Control Card, Core Components for Excitation and Electrolysis Rectification
II. Code Segmentation Meaning
3BHE023584: Basic Material Segment of PPD113B03 Board Card, Shared by the entire series
R2356: Version Configuration Number R23 Hardware Configuration (23 model type, firmware / terminal definition fixed)
Complete Panel Model Format: PPD113B03-23-111616 (The last six digits are channels / program configuration)

Core Functions
Receive upper-level AC800PEC Controller Phase Adjustment Instructions
Isolate output of multiple SCR Gate Trigger Pulses, Drive 6 Pulse / 12 Pulse High-power Rectifier Bridge
Built-in Pulse Diagnosis, Short Circuit Protection, Synchronous Phase Detection, Fault Reporting
Compatible with Unitrol Series Generator Excitation System, Aluminum Electrolysis High-power Rectifier Cabinet, Metallurgical Direct Current Transmission

System Compatibility
Upper-level Controller: AC800PEC, AC800M, 800xA DCS
Supporting Accessories: DATX Pulse Isolation Transformer, Power SCR Bridge, Synchronous Voltage Acquisition Board
Compatible Replacement within the Same Series: Different versions of PPD113B03 such as R20/R23/R24/R26, Backplane Bus is Common, Only Program Configuration Differences

Electrical and Environmental Parameters
Power Supply: 24VDC Internal Power Supply
Pulse Output: Electrical Isolation Gate Drive, Multiple Independent Pulse Channels
Operating Temperature: 0℃～+60℃ (Cabinet Ventilation)
Protection: Industrial Plug-in Type, DIN Rack Plug-in Installation
Size: Standard Industrial Control Large Board, Net Weight Approximately 2.7–2.9kg

Typical Application Scenarios
Unitrol 6000/6800 Static Excitation Cabinet for Thermal Power / Hydropower / Gas Turbine Units (AVR Voltage Regulation Core Pulse Board)
High-power Rectifier Power Supply for Aluminum Industry, Copper Industry Electrolysis Cells
Heavy-duty Direct Current Transmission SCR Converter System for Rolling Mills, Arc Furnaces
