ABB UNITROL 1010-1002 3BHE035301R1002 Automatic Voltage Regulator

Product Description

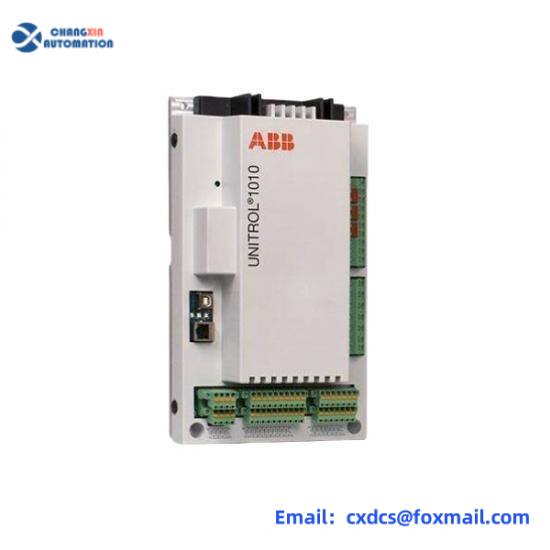

ABB UNITROL 1010-1002, part number 3BHE035301R1002, is a Profibus communication sub-module of ABB UNITROL 1000 series compact excitation regulator (AVR, Automatic Voltage Regulator), designed for brushless excitation control of synchronous generators. The main UNITROL 1010 is a low-capacity excitation controller with rated excitation current of 10A, supporting voltage regulation, limit protection and grid paralleling monitoring. This sub-module expands Profibus-DP communication, enabling data exchange between the excitation unit and DCS / PLC systems. It is widely used for power plant excitation cabinet retrofitting and spare parts replacement. This model is obsolete, available mainly as new surplus stock, used and refurbished units.

Specifications

• Brand: ABB
• Model: UNITROL 1010-1002
• Part No.: 3BHE035301R1002
• Type: Profibus Communication Sub-module (for UNITROL1010 AVR)
• Family: UNITROL 1000 Series (UNITROL1010)
• Protocol: Profibus-DP
• Compatible host: UNITROL 1010 excitation regulator (max excitation current 10A)
• Commissioning tool: CMT1000
• Communication port: Profibus DP
• Protection class: IP20 (cabinet mounting)
• Operating temperature: 0 ~ +55℃
• Mounting: On-board plug-in for UNITROL1010 main control unit
• Functions: Bus data upload, remote parameter read/write, status signal exchange, alarm transmission
• Lifecycle: Obsolete, stock new / used / refurbished available

Application

1. Communication expansion for brushless excitation cabinets of medium & small synchronous generators
2. Excitation systems for diesel gen-sets, gas turbines and captive waste heat power stations
3. Profibus communication retrofit for marine power plants and diesel-electric locomotive excitation units
4. Spare replacement and communication troubleshooting for legacy ABB UNITROL1010 excitation systems
5. Profibus DP data interface between power plant DCS and excitation regulators

Same Series Models (UNITROL 1000 Series)

UNITROL 1005-0011, UNITROL 1005-0012, UNITROL 1010-0002, UNITROL 1010-0003, UNITROL 1010-0004, UNITROL 1010-1002 (3BHE035301R1002), UNITROL 1020-0003, UNITROL 1020-0006, UNITROL 1020-0007
