I. Basic Identification

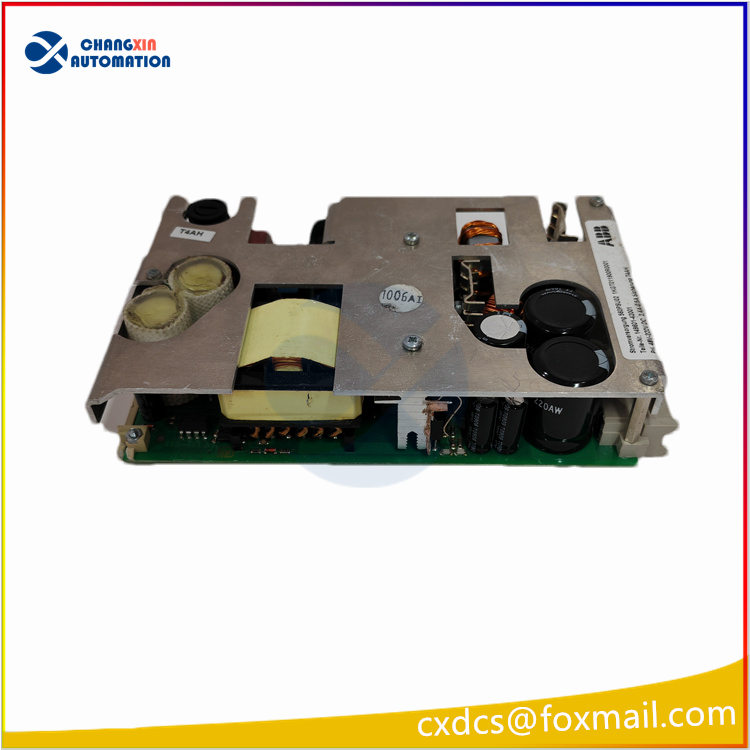

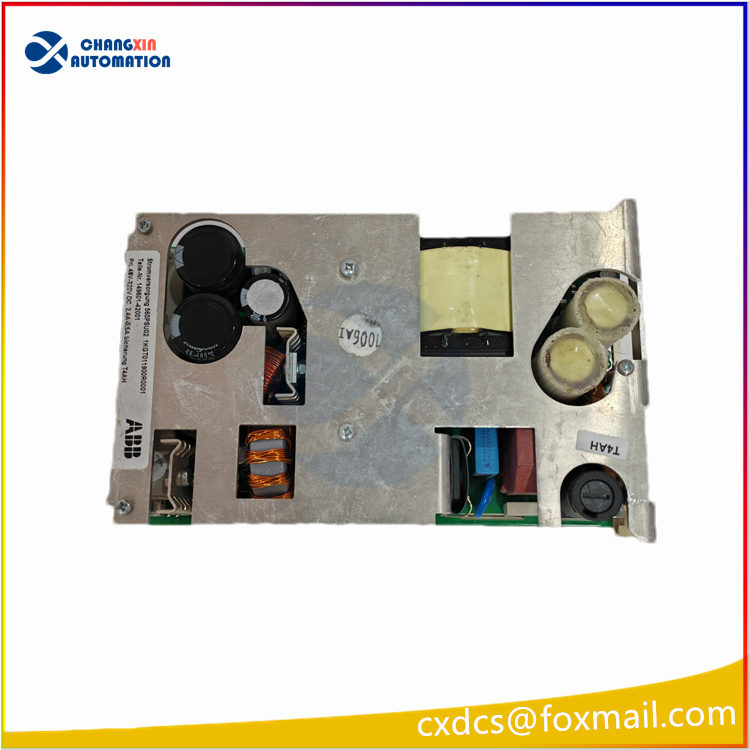

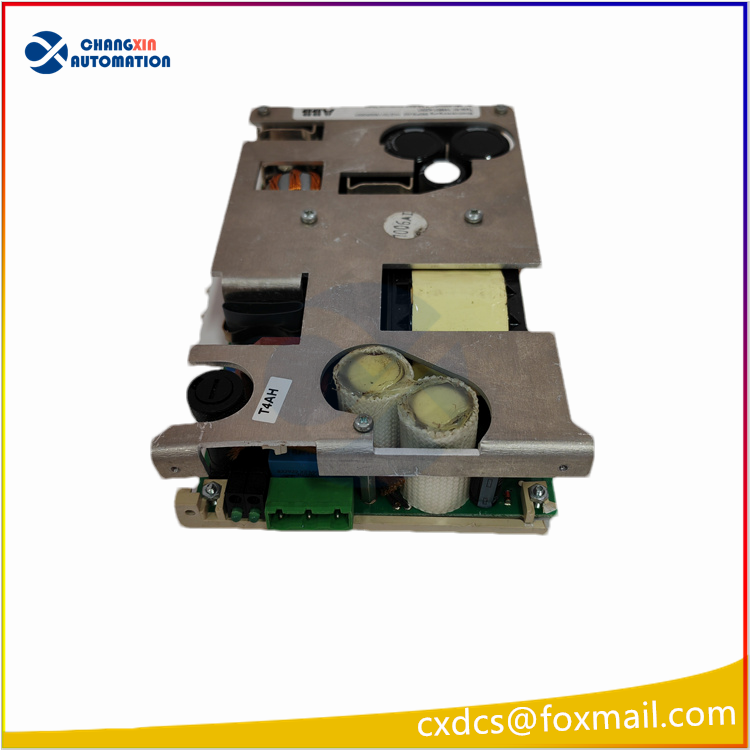

Model: 560PSU02
Original factory order number: 1KGT011900R0001
Manufacturer: ABB
Applicable platform: RTU560 Substation Automation Remote Terminal Unit
Compatible rack: 560MPR03, 560SFR02 Subracks
Location: Rack-specific plug-in power supply, providing dual DC power supply for backplane logic boards + on-site IO
Electrical Parameters (Version R0001)
1. Input Side
Input Voltage: 48 – 220 VDC (allowing -20% to +20% fluctuation)
Input Fuse: 4AT Built-in Fuse
Anti-polarity protection, input/output electrical isolation
Voltage sag tolerance: ≤ 50ms without output loss
2. Total Output Power: 85W
5VDC (Backplane Logic Power Supply)
Voltage: 5.0 – 5.3 V DC
Maximum Current: 15A
Used for CMU communication boards, CPU, bus logic cards
24VDC (On-site IO / Peripheral Power Supply)
Rated 24VDC
Maximum Current: 0.4A
Supplying DI/DO, transmitters, serial peripheral devices
3. Protection Mechanism
Output electronic current limiting, short circuit self-lock protection
Overvoltage, overheat automatic power reduction
Fault ALARM Dry Contact Alarm Output
Core Functional Characteristics
Redundant Parallel Operation
The rack can be dual 560PSU02 connected for redundancy; in case of a single unit failure, the other unit will carry the full load, providing high reliability for power SCADA standard configuration.
Status Indicator Lights
Independent LEDs indicate the normal operation of 5V and 24V outputs, facilitating intuitive judgment of power failures.
Heat Dissipation Method
Natural convection cooling, no forced fan, reducing the rate of on-site failures.
Load Capacity
A single unit can support an entire rack with full configuration of 8 CMU communication units.
Installation Form
Standard RTU560 rack slot hot-swappable module, cabinet IP20 protection.
Environment and Certification
Operating Temperature: -25℃ ~ +70℃; Storage – 40℃ ~ +85℃
Humidity: 5% – 95% without condensation
Certification: CE, UL, IEC 61810 Power Automation Standard
Size: Approximately 258×225×40mm, Net Weight ≈ 0.67kg
Differentiation of the Same Series Power Supply
560PSU01: Input 110 – 220 VDC, Supports at most 4 CMU, Power is smaller
560PSU02 1KGT011900R0001: Wide Input 48 – 220 VDC, 85W, Full load 8 CMU, Mainstream large-capacity rack power supply
Typical Application Scenarios
Substation Integrated Automation, Power SCADA RTU560 System
Power Plant Auxiliary Control, Remote Data Acquisition Terminal for Oil and Gas Fields
Water Conservancy, Rail Transit Power Supply Monitoring Remote Terminal
Critical Process SIS/FGS Remote Signal Acquisition Rack Power Supply
