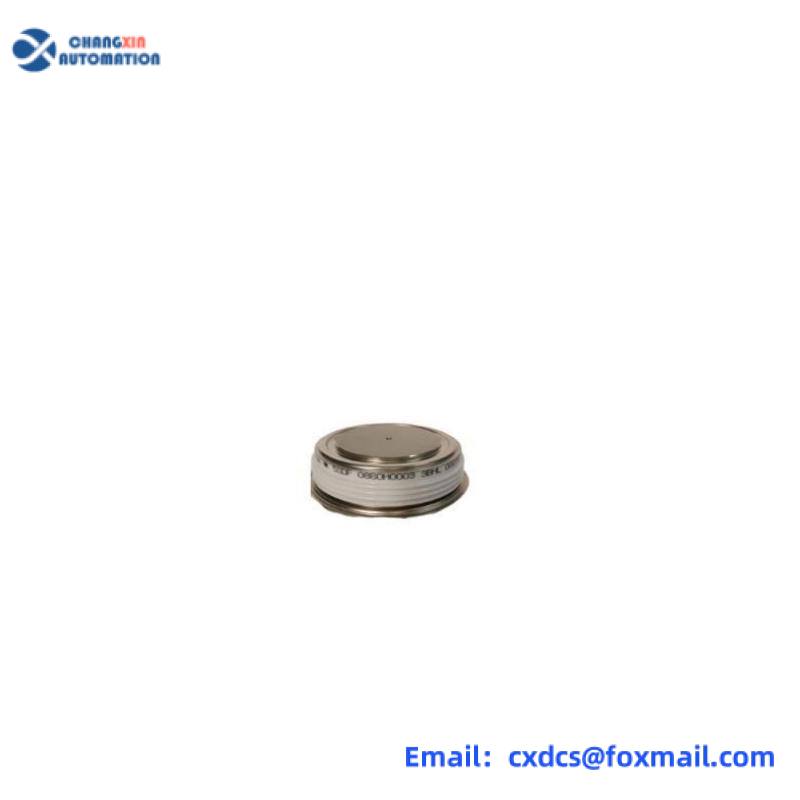

ABB 5SDF0860H0003 Fast Recovery Diode – High-Speed Rectifier for Industrial Power Systems
The ABB 5SDF0860H0003 Fast Recovery Diode is engineered for precision power electronics applications requiring rapid switching and minimal energy loss. With its ultra-fast recovery time and robust silicon construction, this diode delivers exceptional performance in industrial power supplies, motor drives, and renewable energy systems where efficiency and reliability are paramount.
Key Features
- Ultra-Fast Recovery Time: <50ns ensures minimal switching losses in high-frequency applications.
- High Voltage & Current Capacity: 1200V/8A rating supports industrial-grade power conversion demands.
- Low Forward Voltage Drop: Enhances energy efficiency and reduces thermal stress on components.
- Wide Operating Temperature Range: Functions reliably from -55°C to +150°C in extreme environments.
- Compact TO-247 Package: Space-saving design with leaded mounting for seamless PCB integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB 5SDF0860H0003 |
| Voltage Rating | 1200V |
| Current Rating | 8A |
| Recovery Time | <50ns |
| Operating Temperature | -55°C to +150°C |
| Package Type | TO-247 |
| Weight & Dimensions | 0.03kg / 18.2mm x 36.5mm x 10.2mm |
Application Fields
The ABB 5SDF0860H0003 excels in industrial automation systems, uninterruptible power supplies (UPS), solar inverters, and electric vehicle charging infrastructure. Its fast recovery characteristics make it ideal for high-frequency rectification in switch-mode power supplies (SMPS) and motor control circuits where thermal management and system efficiency are critical.
Main Product Brands & Models
- ABB: DSQC Series, PM866, PM861K01, PP865A, 5SHY6545L0001
- GE Fanuc: IC698CPE010, VMIVME-7807, IS230SRTDH2A
- Bently Nevada: 3500/44, 3500/22M, 3500/92
- Triconex: 3008, 3703X, 4355X
- Woodward: 8521-0312, TG-13, 5466-2588200-226
Our inventory spans leading industrial control brands including ABB, Allen Bradley, Foxboro, and more, offering comprehensive solutions for automation, power conversion, and process control systems.
