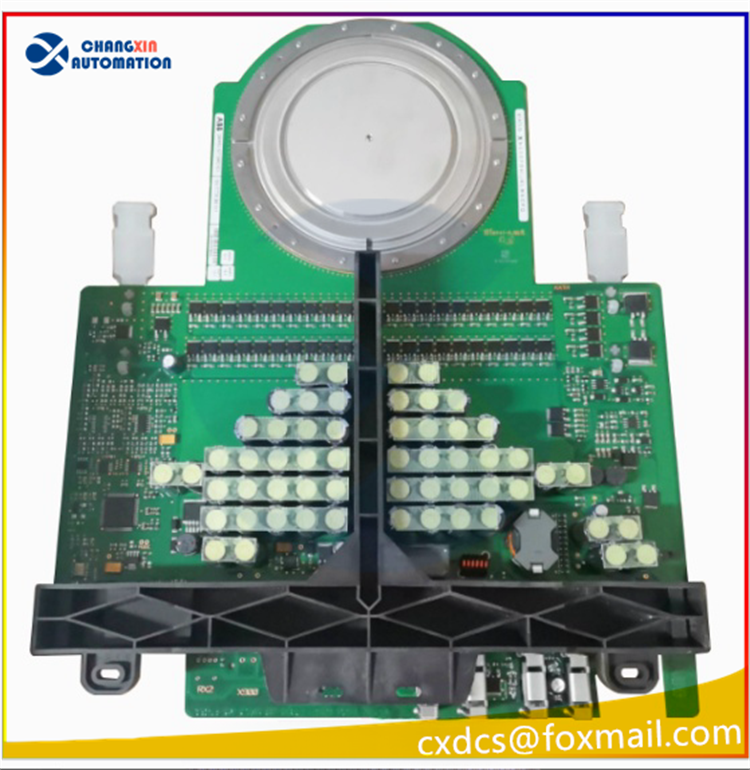

ABB 5SDF1045H0002 3BHL000986P3002 High Voltage IGBT Thyristor Module

ABB 5SDF1045H0002 / 3BHL000986P3002 High Voltage IGBT Thyristor Module (HVDC / High Voltage Frequency Conversion Drive)
I. Model Correspondence
Power Device Body Model: 5SDF1045H0002 (IGCT Integrated Gate Commutating Thyristor Unit)
Device Material / Cabinet Order Code: 3BHL000986P3002
The two are a set. 3BHL000986P3002 refers to the complete valve section component (including heat dissipation, drive board, optical trigger circuit) that is equipped with 5SDF1045H0002 IGCT.

Basic Parameters of 5SDF1045H0002
Device Type: IGCT Integrated Gate Commutating Thyristor (ABB’s exclusive high-voltage high-power power semiconductor, superior to ordinary IGBT)
Voltage Level: 4500V
Rated Switching Current: 1045A
Package: Press-fit Water-cooled Module, Dual-sided Water-cooling Heat Dissipation Structure
Built-in Accessories: Integrated Reverse Parallel Continuation Diode, Gate Drive Circuit Interface, Optical Trigger Terminal
Equalizing Resistance Capacitive Absorption Circuit, Temperature Detection Thermocouple, Fault Feedback Contact
The entire unit includes:
Core Power Chip: 5SDF1045H0002 IGCT Body
Water-cooled Heat Sink, Inlet and Outlet Water Connectors, Insulation Support
IGCT Gate Drive Board, Optical Transceiver Module (Optical Receiver Control Pulse, High and Low Voltage Isolation)
Equalizing Resistor Capacitive Absorption Circuit, Temperature Detection Thermocouple, Fault Feedback Contact
Installation and Fixation Insulation Parts, Complete Direct Replacement without Separate Assembly of Components

Valve Component Description of 3BHL000986P3002
The entire unit includes:
Core Power Chip: 5SDF1045H0002 IGCT Body
Water-cooled Heat Sink, Inlet and Outlet Water Connectors, Insulation Support
IGCT Gate Drive Board, Optical Transceiver Module (Optical Receiver Control Pulse, High and Low Voltage Isolation)
Equalizing Resistance Capacitive Absorption Circuit, Temperature Detection Thermocouple, Fault Feedback Contact
Installation and Fixation Insulation Parts, Complete Direct Replacement without Separate Assembly of Components

Electrical and Safety Characteristics
Trigger Method: Optical Pulse Triggering, Complete Isolation of AC and DC, Resistant to High Voltage Interference
Protection Integration: Over-temperature Monitoring, Gate Fault, DC Over-Pressure, Current Over-limit Hardware Rapid Lockout
Cooling: Pure Water Cooling System, Strict Process Requirements for Water Flow Rate and Water Temperature
Insulation Voltage: Valve Section as a Whole Meets High-Voltage Commutating Valve Insulation Specifications, Suitable for ±300kV and Below Flexible DC, High-Power Frequency Conversion Drive

 Compatible with ABB System Scenarios
HVDC Flexible DC Transmission Converter Valve (Wind Power Base, Long-distance Transmission Station of Photovoltaic Power Station)
High-Power Mine Hoist High-Voltage Frequency Conversion Drive System
Metallurgical Rolling Mill, Large Ship Electric Propulsion High-Voltage Converter
Power Plant SVC Static Reactive Power Compensation, SVG Dynamic Reactive Power Compensation Device
Can be matched with the Symphony INFI90 DCS (TRM01, BIO01, PSM02 Rack) for valve system monitoring and acquisition

Maintenance and Replacement Key Points
Replacement of spare parts must be a complete set of 3BHL000986P3002 valve section, cannot disassemble and assemble the 5SDF1045H0002 chip separately, disassembling and assembling is likely to damage the press-fit stress and cause cracking
After replacement, it is necessary to conduct water cooling circuit leak detection, optical communication calibration, equalizing characteristic test
Monitoring Points: IGCT Chip Temperature, Water Cooling Inlet and Outlet Temperature Difference, Optical Trigger Status, Absorption Circuit Voltage
Spare parts are high-power high-voltage valuable spare parts, mostly imported original factory inventory, replacement cycle for discontinued models is longer

Classification of the Same Series
5SDF0845H0002: Same as 4500V, Switching Current 845A, Smaller Power
5SDF1245H0002: 4500V/1245A High Current Version, Different Material Code Suffix
3BHL Series is the entire valve component material, the digital suffix represents current, heat dissipation, and drive version differences, cannot be directly interchanged
