ABB 68569303 FS225R12KE3/AGDR-71C S IGBT Multi-Drive Inverter

Product Description

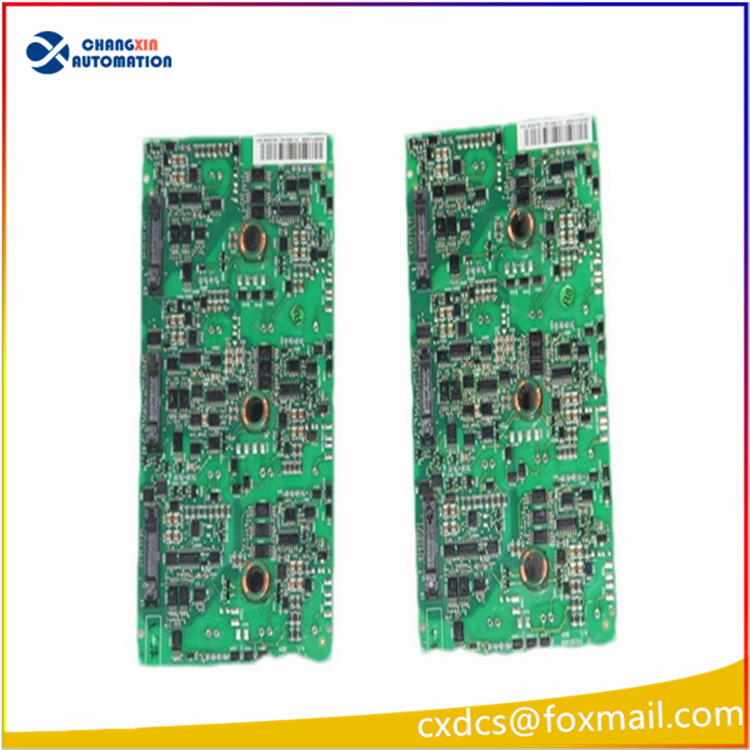

68569303 FS225R12KE3/AGDR-71C S is an IGBT power kit for ABB ACS800-104 multi-drive inverter, assembled with FS300R12KE3 IGBT power module and AGDR-72C gate driver board. The driver board provides gate signal driving, short-circuit protection, fault detection and status feedback for IGBT. The IGBT module performs main circuit power conversion, converting DC bus voltage into AC output. This integrated power unit is a critical spare part for high-power industrial drives. It features fast fault shutdown and strong EMC performance, for direct replacement of damaged power units inside ACS800 multi-drive cabinets.

Specifications

• Model: FS225R12KE3/AGDR-71C S
• ABB Part Number: 68569303
• Assembly: FS300R12KE3 IGBT Module + AGDR-72C Gate Driver Board
• Module Voltage Rating: 1200V
• Continuous Collector Current: 300A
• Peak Collector Current: 600A (1ms pulse)
• Gate Driving Voltage: ±20V
• Dimension: 175 × 152 × 21 mm
• Net Weight: 1.1 kg
• Operating Temperature: -20℃ ~ +60℃ (inside cabinet)
• Storage Temperature: -40℃ ~ +85℃
• Protection Class: IP0 (installed inside drive cabinet)
• Functions: Power inversion, IGBT gate driving, short-circuit protection, overcurrent fault detection, fault signal feedback
• Compatible Drive: ABB ACS800-104 multi-drive inverter
• Certifications: CE, compliant with industrial converter standards

Applications

1. Spare part replacement for power unit of ABB ACS800-104 multi-drive inverter.
2. High-power multi-motor drive systems in metallurgy, paper-making and mining industries.
3. Variable frequency drives for large fans, pumps, extruders and winches.
4. Maintenance of high-power converter equipment in power plants and chemical process lines.
5. High-power power conversion equipment for wind power and energy sectors.

Series Models

FS225R12KE3/AGDR-71C, FS225R12KE3/AGDR-81C, FS300R12KE3/AGDR-71C, FS300R12KE3/AGDR-72C, FS450R12KE3/AGDR-71C, FS450R12KE3/AGDR-72C
