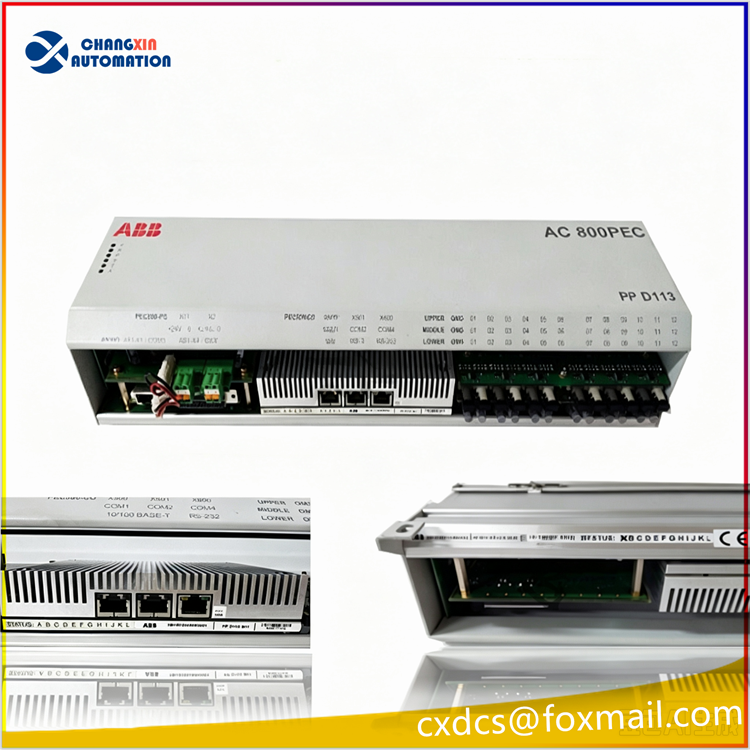

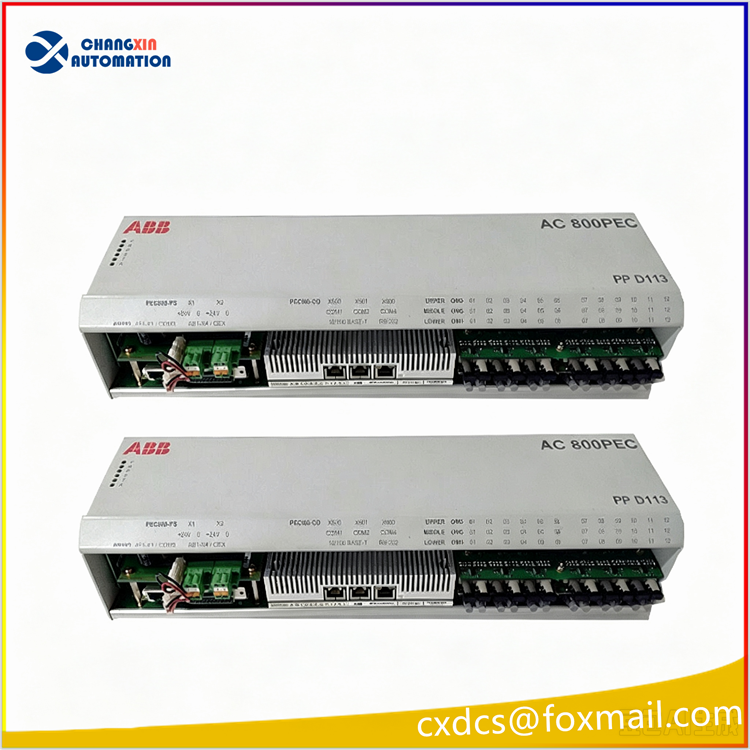

ABB AC800PEC PPD513 3BHE039724R2643 Power Electronic High-Speed Controller Unit

Product Description

ABB PPD513 (part number 3BHE039724R2643) is a high‑speed power‑electronic controller unit of AC800PEC under Control‑IT platform, manufactured in Switzerland. Optimized for generator excitation and high‑power converter applications, some variants are phased‑out by OEM; surplus‑new and tested‑used units serve as critical spares for power‑generation sites. It adopts dual‑core PowerPC+FPGA architecture, combining standard IEC 61131‑3 process control with microsecond‑level high‑speed closed‑loop computation. FPGA hardware acceleration handles pulse modulation, fast I/O and protective logic with typical 25 μs control cycle. Programming is performed via Control Builder M, also supporting auto‑code generation from Matlab/Simulink models. Optical PowerLink interfaces connect to power converters; Ethernet and serial ports are used for HMI supervision and commissioning. On‑board multi‑LED indicators provide run‑status and fault diagnostics. DIN‑rail cabinet‑mount with fan‑less cooling and heavy‑duty EMC compliance for power‑plant environments. Widely deployed for synchronous generator excitation, SVG, STATCOM and high‑power drive retrofits & component replacement.

2. Product Parameters

• Model: PPD513
• Part No.: 3BHE039724R2643
• Brand: ABB (Switzerland)
• Product Type: AC800PEC High‑Speed Power‑Electronic Controller Unit
• Series: AC800PEC / Control‑IT
• Country of Origin: Switzerland
• Hardware Architecture: PowerPC 750FX + FPGA hardware acceleration
• Memory: 64 MB SDRAM, 16 MB Flash (data retention upon power‑loss)
• Control Cycle: High‑speed task typical 25 μs; standard process task 10 ms
• Power Supply: 24 VDC
• Communication Interfaces: Dual Ethernet, RS232 service port, optical PowerLink, CEX expansion bus
• Engineering Tools: Control Builder M; Matlab/Simulink real‑time code generation
• Compliance: IEC 61131‑3, CE certification
• Status Indication: Front‑panel multi‑LED for run, fault and channel diagnostic
• Mounting: Standard DIN‑rail cabinet‑mount, fan‑less natural cooling
• Operating Temperature: 0℃ ~ +55℃
• Storage Temperature: ‑20℃ ~ +70℃
• Ingress Protection: IP20 (cabinet‑mount only)
• EMC: IEC 61000‑4 series for power‑plant electromagnetic environment
• Product Status: Some variants phased‑out; surplus‑new / tested‑refurbished spares available
• Weight: Approx. 1.7 kg
• Key Features: Dual‑core CPU+FPGA high‑speed control, microsecond‑level closed‑loop, optical link to power units, model‑based code generation, built‑in hardware diagnostics, fan‑less construction, for generator‑excitation & heavy‑duty power‑electronics

3. Product Application

PPD513 controller is designed for high‑speed closed‑loop power‑electronic control. Main application fields are listed below:

1. Synchronous Generator Excitation Systems: Excitation regulation for thermal & hydro generators; AVR voltage loop, reactive‑power control, under‑excitation and over‑excitation limiting protection.
2. Combined‑Cycle Power Plants: Turbine‑generator excitation cabinets for automatic voltage regulation, interfaced with plant DCS/SCADA.
3. Power‑quality Equipment: High‑speed control for SVG, STATCOM and active‑power‑filter for fast reactive‑power compensation and harmonic mitigation.
4. High‑power Industrial Drives: Closed‑loop torque & speed control for large‑capacity converter‑fed motor drives.
5. Industrial Captive Power & Cogeneration: Excitation control for on‑site synchronous generators; grid‑paralleling logic and protective limit functions.
6. Legacy‑system Maintenance & Retrofit: Fault‑controller replacement for existing AC800PEC installations; generator‑excitation‑system overhaul swap.
